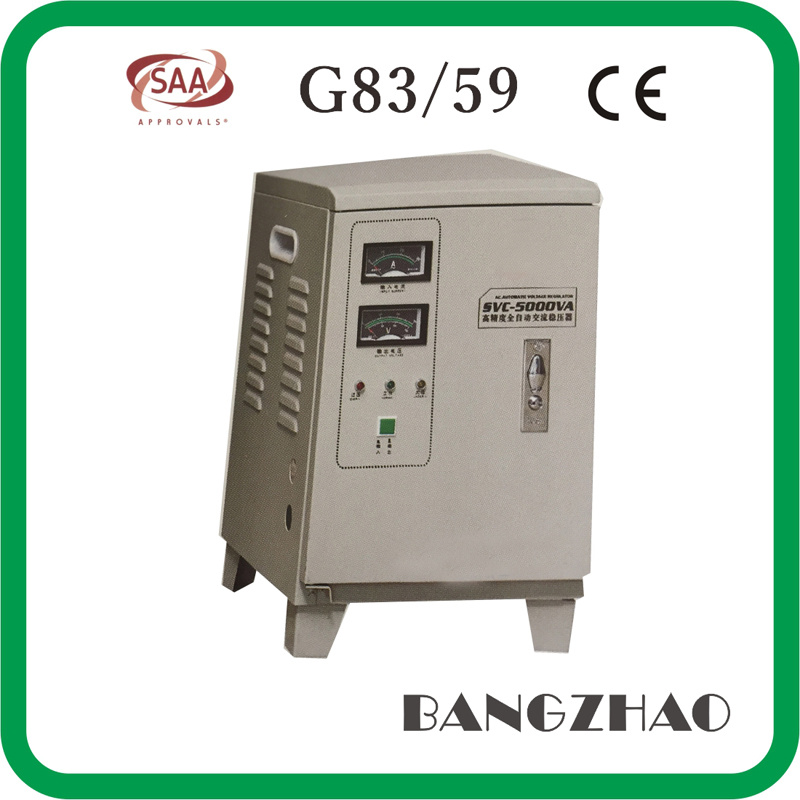

1kVA Auto 220V AC Adjustable Tronic Portable Voltage Stabilizer Regulator
| Price: |
US $ 50-5000/Piece |
| Trade Terms: |
FOB,CIF,CIP |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
TND-1KVA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input Voltagerange: |
160-250V |
| Input Frequency: |
50/60Hz |
| Output Voltage: |
220V/110V |
| Output Precision: |
+/-3% |
| Current Type: |
AC |
| Phase: |
Single Phase |
| Usage: |
DBW |
| Frequency: |
Low Frequency |
| Brand: |
Bangzhao or OEM |
Product Description
Description:
SVC series of high-performance automatic AC regulated power supply,from auto-contact voltage regulator,servo motor,automatic control circuit etc.,when the grid voltage is unstable or load changes,automatic control circuit according to the output voltage change-driven servo motors,Auto-voltage is regulator to adjust contact position on the carbon brush,so that the output voltage is adjusted to the rated value,the output voltage is stable and reliable high efficiency,long continuous work.
In the grid voltage fluctuation large or seasonal variation in line voltage for use in are as will enable all kinds of loads,equipment,instruments,and household appliances can work properly.is well known that high voltage electrical burn damage to equipment,Air conditioners,refrigerators,etc.,when the voltage is too low is difficult to start,unable to work,power rather than start,or barely started and the voltage is too low will be air-conditioner,refrigerator compressor overcurrent burned,therefore,voltage is not a normal occasion,you must use the AC power supply,this product cheap.
Notes:
1,environmental conditions require a well-ventilated,non-corrosive gases,explosive substances,conductive dust and steam,etc.,without a strong vibration impact,heat and so on.
2,according to electrical equipment,power,startup surge current regulated power supply power to choose,etc.,there must be enough to cushion the impact of the load should not be used.
3,regular dust removal machine to keep gears,coils,car bon brush cleaning,long-term work,the carbon brush wear,we should adjust the carbon brush contact pressure with the coil to make good contact and avoid arcing.
4,grounding must be reliable and to ensure safety.
5,installation,wiring,adjustments charged work,mush have electrical knowledge of personnel to operate and avoid maintenance ,adjustment,electric shocks and accidental damage to power supply.
6,do not cover with plastic dust cover,etc.live in regulated power supply ,hinder power dissipation,caused by the power supply caused by overtheating.
7,to power generation,first source of power supply voltage regulator to switch off the generator in the normal,and then turn the power switch.
8,products with over-voltage protection,delay in the 4-10 seconds.
9,If necessary,the user adjustable,output voltage,control circuit boardof the variable potentiometer clockwise rotation,the output voltage rise,counter-clockwise rotation,the output voltage reduced.
Model (TND) | 500VA | 1000VA | 1500VA | 2000VA | 3000VA | 5000VA | 8000VA | 10000VA |
| Input | Input VoltageRange | 160-250V |
| Input frequency | 50/60Hz |
| Output | Output voltage | 220V/110V |
| Output precision | +/-3% |
| Efficiency | >90% |
| Meter Display Status | Input Voltage/Output Voltage |
| LED Display Status | Green LED | Device on |
| Yellow LED | Delay in progress |
| Red LED | Output suppressed, Input voltage out of range or overheating |
| Protection | High Voltage Protection | Yes |
| Low Voltager Protection | Yes |
| Overload Protection | Yes |
| HighTemperature Protection | Yes |
| Circuit Protection | Fuse |
| Ambient Temperature | -10°C+45°C |
| Response Time | <1sec.against 10% input voltage deviation |
| Safety Standards | N/A |
Yueqing Bangzhao Electric Co., Ltd. is specialized in the field of power research and development, production and service. In all varieties, high quality, excellent service is recognized by the vast number of customers, the company R & D products basically covers the best product, they represent the highest level in the world manufacturing power. The main products are: Photovoltaic grid connected inverter, wind grid tied inverter, pure sine wave inverter, high frequency off grid inverter, low frequency off grid inverter, photovoltaic water pumping inverter, single-three phase converter, voltage converter, solar charger controller, photovoltaic lightning protection confluence box, PV combiner box, controller-inverter one machine, wind-solar hybrid controller, VLF high voltage generator and so on. The company products in the fire, building, industry, new energy, civil, financial, taxation, power medical, aviation, military industry, automation control system, the construction of national key projects, are widely used in various fields.
According to state electric company to maintain long-term good cooperation, R & D and leading universities with science and technology, the introduction of absorbing international advanced technology, establish a strict quality control system.
We will uphold the principle of "unremitting exploration, and strive to innovation, integrity and dedication, aestheticism is the only" objective "quality policy, standard management, careful manufacturing, quality first, dedicated service". The pursuit of excellence, innovation and value!
We will make unremitting efforts, with you to create brilliant.
