| Prod Model: |
MZ SERIES |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Works As Well As The Principle: |
Uninterrupted Switch |
| Weight: |
6.6kg |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Overvoltage Short Circuit Overcurrent Unbalanced |
| Brand: |
Meze |
Product Description

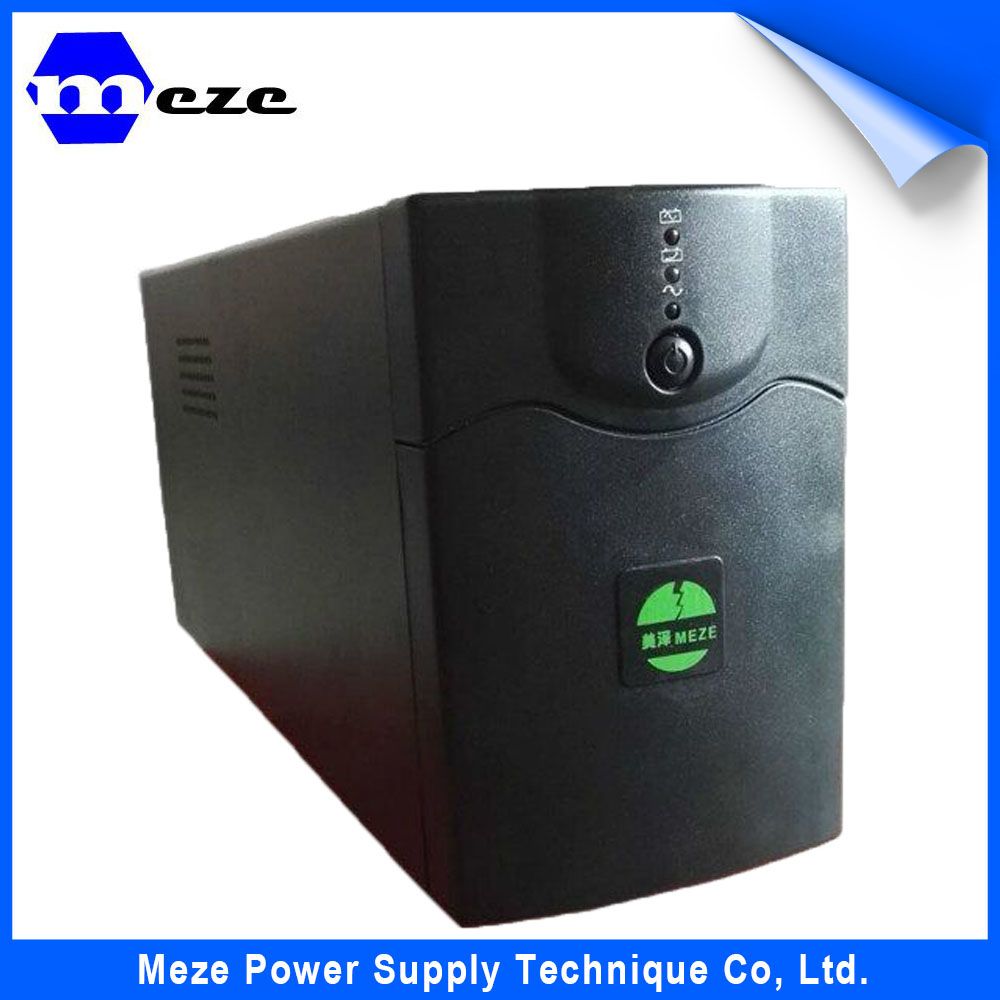

1kVA Online mini UPS 12v Power Supply for Computer Power
C / 3 C series of intelligent high frequency pure on-line UPS, capacity include: single into
single out 1 kva ~ 10 kva and 10 kva ~ 20 kva
Product characteristics: C / 3 C series fully condensed the essence UPS cutting-edge
technology, The whole machine adopts advanced 16-bit high-speed CPU control and 40 KHZ
high frequency technology, small volume, light weight, high efficiency; Zero transfer and
pure sine wave output is designed to ensure that the C / 3 C series UPS is widely used in all
kinds of load. This series of products using concise interface information processing
technology, the user can according to the display intuitively understand the running status
of UPS, have fully digital automatic detection and protection function, remote monitoring
function more reached the international advanced level, is a commercial server, PC server and
peripheral equipment, communications and networking equipment, home office computer
protector and other precision electronic equipment s and reliable electricity.
Areas of application: this series of products are widely used in data processing center, the
host system, integrated computer network, ISP services, telecommunications, computer
room, etc.
| Model MZT | C1KS | C1K | C2KS | C2K | C3KS | C3K | C6KS | C6K |
| capacity | 1KVA/700W | 2KVA/1400W | 3KVA/2100W | 6KVA/4800W |
| impot | voltage | 160~300VAC(Three pin plug) | 176~276VAC1P2W+G |
| current | 6A(max) | 12A(max) | 16A(max) | 33A(max) |
| frequency | 50/60HZ±5% |
| power factor | EN60555-(≥0.95) |
| output | voltage | 220VAC±2% |
| frequency | 50/60HZ±5% |
| current | 4.55A | 9.1A | 13.6A | 27.3A |
| load power factor | 0.7lag | 0.8lag |
| waveform | sine wave |
| waveform distortion | Linear load<3% |
| nonLinear load<5% |
| overload protection | >130%→30S>150%→10ms |
| transfer time | Zero interruption |
| Battery Type | Sealed maintenance-free lead-acid batteries |
| An external battery nominal voltage | 36VDC | 96VDC | 192VDC |
| environment | Operating temperature | 0-40ºC |
| Relative humidity | 0-90% |
| altitude | <1500m |
| Communication interface | 9pin D type connector(Rs232) |
| dimension(W+D+H) | 145*405*220 | 195*455*350 | 240*500*460 | 248*500*616 |
| Weight(kg) | 7.5 | 13 | 15 | 32 | 16 | 33 | 18 | 57 |
| | | | | | | | | | |
| 176~276VAC 1P2W+G | 304~478VAC 3P4W+G |
| 55A(max) | 55A(max) | 86A(max) | 112A(max) |
| 50HZ±5% |
| EN60555-(≥0.95) |
| 220VAC/230VAC±5%1P2W+G | 220VAC/230VAC±1%1P2W+G |
| 50HZ±5% |
| 45A | 45A | 68A | 91A |
| 0.8lag |
| shine wave |
| Linear load<3%;nonlinear load<5% |
| battery status:>105% |
| Ten minutes into the bypass |
| Zero interrupt |
| Sealed maintenance-free lead-acid batteries |
| 192VDC | Built-in battery | 192VDC | 192VDC | 192VDC |
| 0-40ºC |
| 0-90% |
| <1500m |
| 9pin D type connector(Rs232) |
| 240*500*460 | 248x500x616 |
| 20 | 63 | 27 | 35 | 37 |
1. Welcome your enquiry
Contact me :leon liang
+86 18824648626
Meze company was founded in 1999, so far, has developed into a comprehensive power supply enterprise, products include: UPS uninterruptible power supply, microcomputer non-contact electronic AC regulated power supply, EPS emergency power supply, etc. Main range: The financial, government, research institutes, transportation, aerospace, electronics, medical, services, etc. To meet the global electronic and communication industry for power equipment is increasingly vigorous market demand, Due to the need of development, shenzhen Meze power technology Co., Ltd was established in 2008 (Specialize in UPS power frequency, regulated power supply, and transformer) In the same year registered Meze electronics Co., Ltd. (Terminal blocks, all accessories of PCB), In 2011, registered shenzhen Meze mechanical and electrical Co., Ltd. ( SMT placement machine and accessories ).
Existing number of employees: 180-180 employees, Using area: 3000 square meters, Company has the high technology and rich experience, Products from well-known international brands of Europe, is committed to providing customers with the full range of high quality high performance high stable power supply protection. Using the international advanced intelligent digital UPS power supply technology, and the most advanced precision purification. Provide the most advanced, cutting-edge, the most reliable, the top power solutions.
