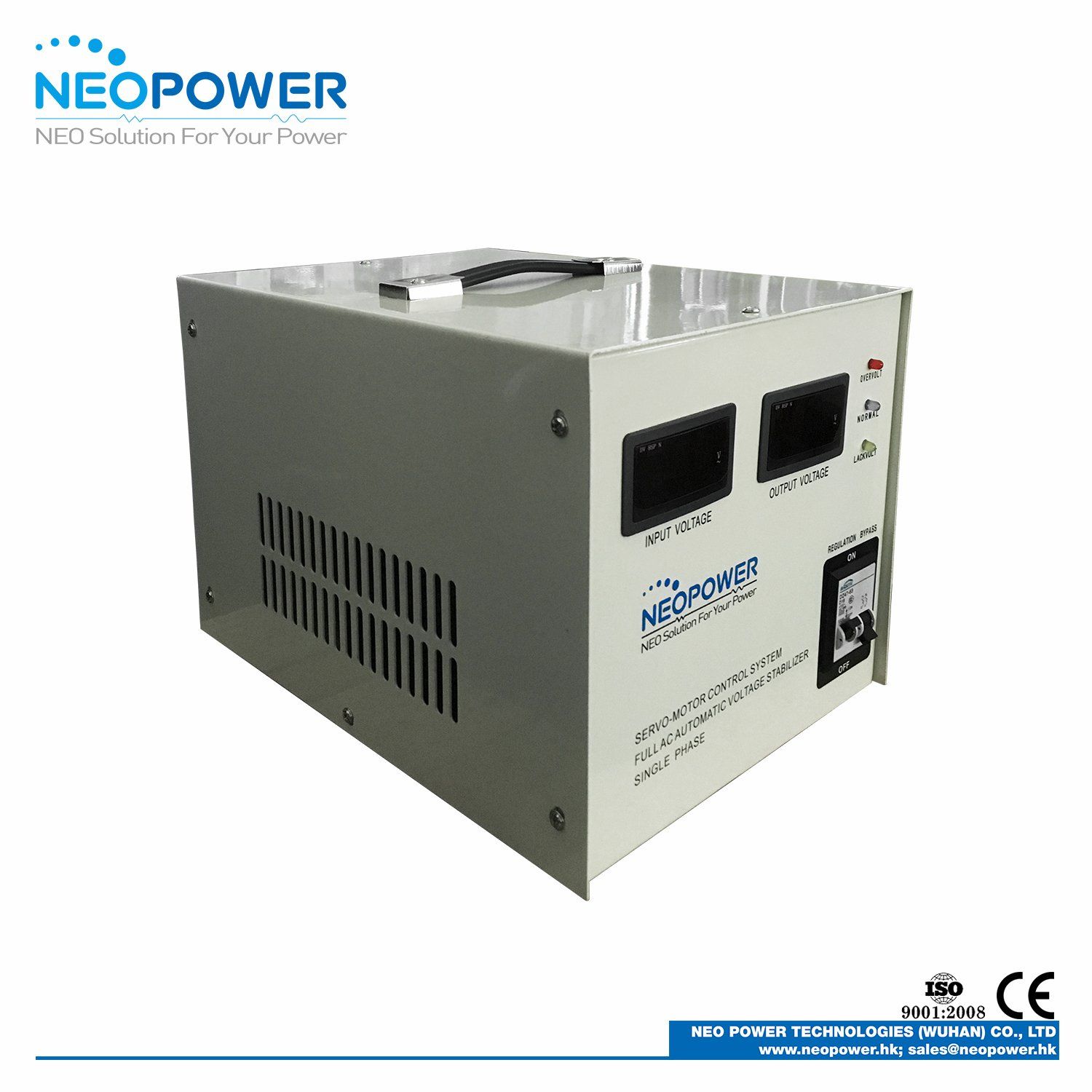

1kVA Single Phase Portable Servo Motor Automatic Voltage Regulator

Name: 1kVA Single Phase Portable Servo Motor Automatic Voltage Regulator
Brand: all-electronics-online.com
SKU: 823575175
Availability: InStock
Rating: 4.4 (149 reviews)

Price:	US $ 30-40/Set
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	NPC-1H-1P-RC
Capacity:	1 kVA
Input Voltage:	150 ~ 260 VAC
Output Accuracy:	+/-3%
Topology:	Mechanical Type
Response Time:	< 500 Ms
Control Type:	Servo Motor
Protection Level:	IP21 ~ IP54
Meter:	LED Screen
Noise:	< 65 dB
Certificate:	Ce
Current Type:	AC
Phase:	Single Phase
Usage:	SVC
Frequency:	High Frequency
Brand:	Neopower

Product Description

Model	NPC-1H-1P-RC
Capacity	1 kVA
Power Rating	800 W
Input Voltage	150 ~ 260 Vac, single phase + N + PE
Input Frequency	50 / 60 Hz
Output Voltage	220 / 230 / 240 Vac +/-3%, single phase + N + PE
Output Power Factor	0.8
Response Time	< 500 ms
Regulation Time	10% variation within 1.5 seconds
Surge Rating	300% max current for 1 minute; 200% max current for 2 minutes
Harmonic Distortion	Less than 1%
Efficiency	98%
Display	LED display
Operation Temperature	-15 ~ 45ºC
Protection	over/low voltage, overload, short circuit, over temperature
Function	manual bypass mode
Option	cooling fans, output circuit breaker, Surge Protective Device, IP21 ~ IP54, LCD display
Protection Level	IP20 / NEMA 1
Noise	< 65 dB
Temperature	-15 ~ 45 ºC
Humidity	95% (non-condensing)
Altitude	1000 m
Alarm	buzzer + LED indicators (+optional LCD display)
Standards	EMC Directive: 2004/108/EC; LV Directive: 2006/95/EC
Dimension	350 * 250 * 300 mm
Net Weight	11 kG

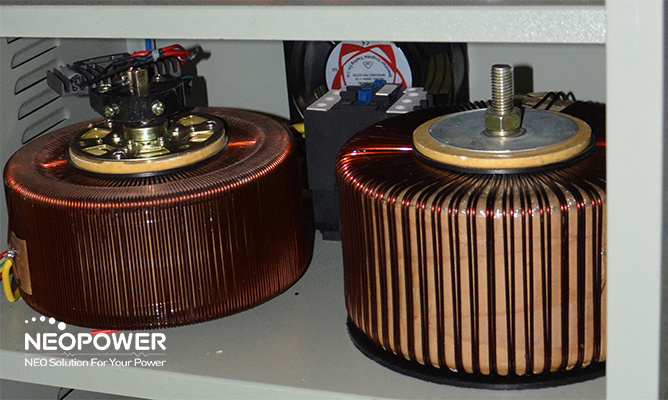

REGULATION TRANSFORMER

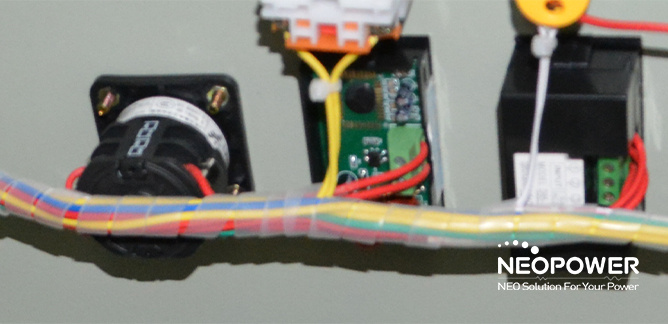

DISPLAY WIRING

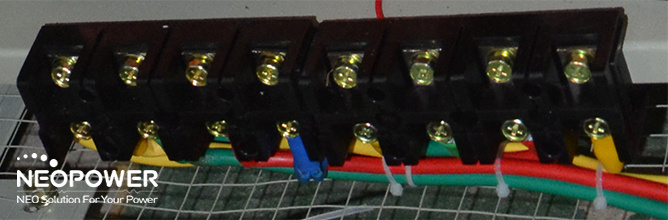

WIRING TERMINALS

FEATURES

Mechanical Type
Servo Motor Drive
3% Output Accuracy
Wide Input Volt Range
Comprehensive Protections
Industrial Footprint
Informative LED Meter
Automatic Control Circuit
Customized Specifications
Step-Down Compenstation
