| Prod Model: |
1N4148W, BAV99 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Maximum Repetitive Reverse Voltage: |
100V |
| Peak Foward Surge Current: |
500mA |
| Manufacturing Technology: |
Optoelectronic Semiconductor |
| Material: |
Element Semiconductor |
| Type: |
Intrinsic Semiconductor |
| Package: |
SMD |
| Model: |
1n4148W,Bav16W |
| Batch Number: |
2016+ |
| Brand: |
Sy |
Product Description

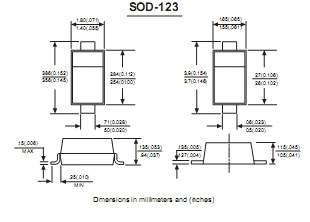

1N4148W,BAV16W,SOD-123 Packing diodes-Fast Switching diode
We - Changzhou Shunye Electronics, co., Ltd, is located in Changzhou & Shanghai, is specialized in the manufacturing of diode.
For 1N4148W,BAV16W,we provide the introduction as following:
Products Introduction
FEATURES :
* Fast switching speed.
* Surface mount package ideally suited
for automatic insertion.
* For general purpose switching applications.
* High conductance.
Mechanical Data
* Case : Molded plastic body.
* Terminals : Plated leads solderable per MIL-STD-760,Method 2026.
* Polarity : Polarity symbols marked on case.
* Marking:T4/T6.

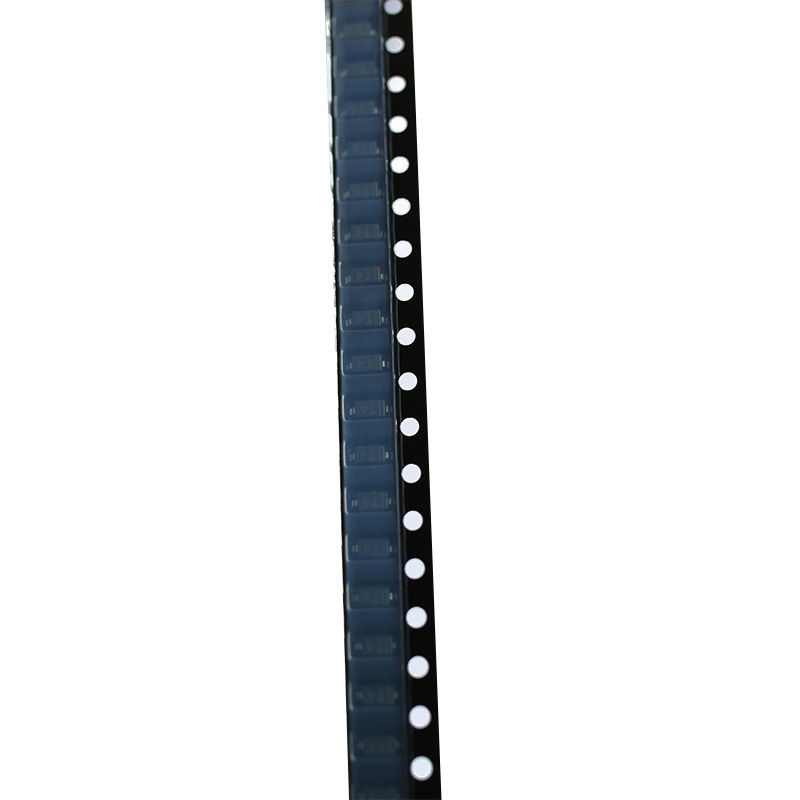

Products Pictures

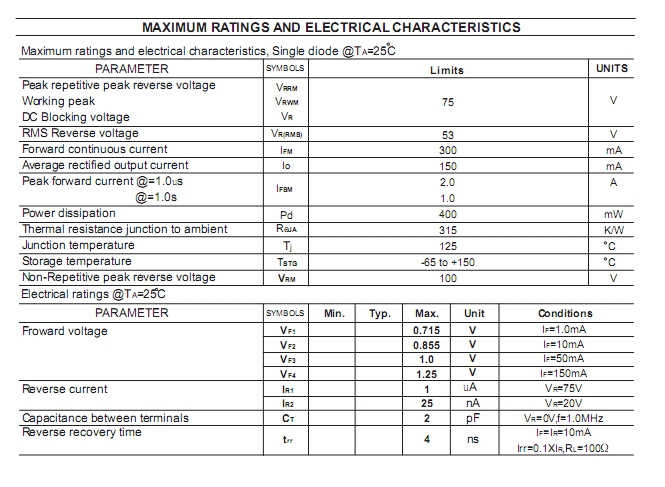

| TYPE | Maximum Repetitive | Maximum Average | Maximum Forward | Maximum Reverse | Maximum | Power
Dissipation | Package |
| Peak Reverse | Rectified | Voltage | Current@VRRM | Reverse |
| Voltage | Current | @TA=25ºC | TA=25ºC | Recovery Time |
| VRRM | I(AV) | IF | VF | IR | VR | trr | Pd |
| V | mA | mA | V | μA | V | ns | W |
| 1N4148W | 100 | 150 | 50 | 1.0 | 0.025 | 20 | 4 | 400 | SOD-123 |
| 1N4448W | 100 | 250 | 100 | 1.0 | 0.025 | 20 | 4 | 400 |
| B0520LW | 20 | 500 | 500 | 0.43 | 250 | 20 | 4 | 410 |
| B0530W | 30 | 500 | 500 | 0.43 | 130 | 30 | 4 | 410 |
| B0540W | 40 | 500 | 500 | 0.51 | 10 | 20 | 4 | 410 |
| B5817W | 20 | 1000 | 1000 | 0.45 | 1000 | 20 | -- | 250 |
| B5818W | 30 | 1000 | 1000 | 0.55 | 1000 | 30 | -- | 250 |
| B5819W | 40 | 1000 | 1000 | 0.55 | 1000 | 40 | -- | 250 |
| BAT42W | 30 | -- | 10 | 0.40 | 0.5 | 25 | 5 | 200 |
| BAT43W | 30 | -- | 15 | 0.45 | 0.5 | 25 | 5 | 200 |
| BAV16W | 100 | 150 | 50 | 1.0 | 0.025 | 20 | 4 | 400 |
| BAV19W | 100 | 200 | 100 | 1.0 | 0.1 | 100 | 50 | 250 |
| BAV20W | 150 | 200 | 100 | 1.0 | 0.1 | 150 | 50 | 250 |
| BAV21W | 200 | 200 | 100 | 1.0 | 0.1 | 200 | 50 | 250 |
| SD101AW | 60 | -- | 1 | 0.41 | 0.2 | 50 | 1 | 400 |
| SD101BW | 50 | -- | 1 | 0.40 | 0.2 | 40 | 1 | 400 |
| SD101CW | 40 | -- | 1 | 0.39 | 0.2 | 30 | 1 | 400 |
| SD103AW | 40 | -- | 20 | 0.37 | 5.0 | 30 | 10 | 400 |
| SD103BW | 30 | -- | 20 | 0.37 | 5.0 | 20 | 10 | 400 |
| SD103CW | 20 | -- | 20 | 0.37 | 5.0 | 10 | 10 | 400 |
FAQ:
1, Are you Manufacturer or trading company?
We are a manufacturer only in diode, bridge rectifier and automotive rectifier diode. We could supply competitive price and fast delivery and good quality with prompt service, we guarantee that we will reply to our customers within 1-12H once we receive the inquiry, we will do the utmost to help to cut down your cost.
2. May I have some samples for testing?
Yes, sure. We offer free samples for your approving and you only need to pay the freight for samples. but if you have 1st order with us, you can deduct the freight from your first order, it is fair to both of us.
3. What about the delivery ?
Usually the lead time is about 1-2 weeks after receiving payment. For many normal parts, we have the quantity in stock and we have the system to ensure the delivery will be on time.
4. What about the payment terms ?
Order amount is less than $10000: 100% Advance.
Order amount is between $10000 and $20000: 50% Advance and 50% before shipment.
Order amount is more than $20000: 30% Advance and 70% before shipment.
Old customer with good reputation: NET 30days.
5. What about the shipment terms ?
FOB Shanghai by air;
CFR your seaport by sea;
We also work with DHL, FEDEX, TNT etc. For large quantity , it's up to you to choose the freight forwarder and if you need, we could assist you.
If you have any question or need techical support, please do not hesitate to contact us, we will try our best to serve you.
