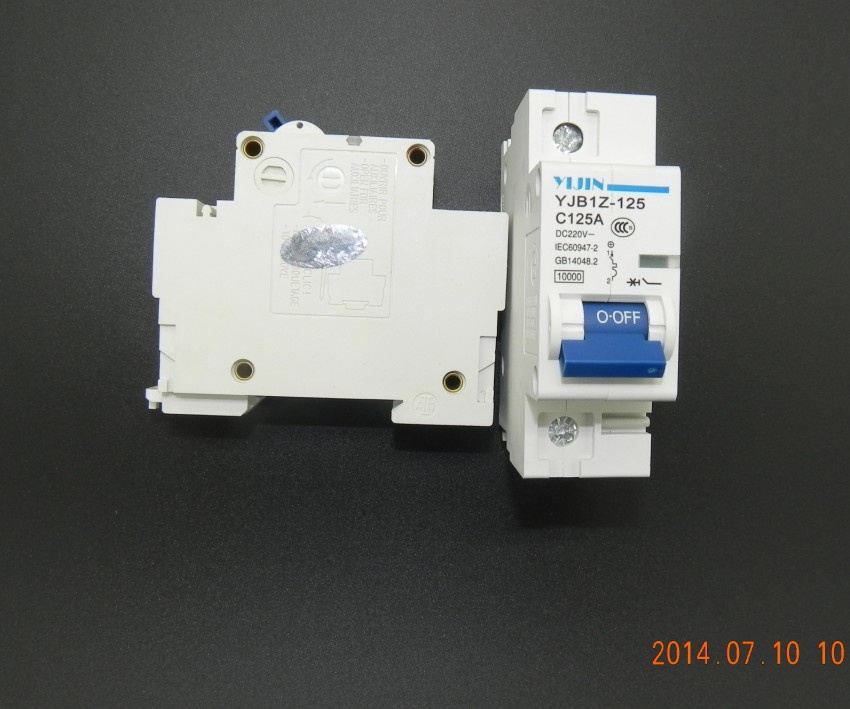

1p 125A DC220V DC Circuit Breaker MCB PV Solar System

Prod Model:	1P 125A DC220V YJB1Z-125
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Breaking Type:	Air Circuit Breaker
Is Customized:	Yes
Model Number:	Yjb1z-125
Current:	125A
Vott:	DC220V
Charcteristic Curve:	C Type
Color:	White
Breaking Capacity:	High Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Oil-immersed Type
Installation:	Fixed
Structure:	ACB
Poles Number:	1
Certification:	CCC

Product Description

YJB1Z-63	DC Circuit Breaker
Rated voltage	DC 220V
Current rating	125A
Number	1 P

YJB1Z-125 series DC Mini Circuit Brea ers to as circuit breaker)

(MCB), is suitable in nominal current 100A and below, direct-current

rated voltage 220V. Uses for carries on the overload, short circuit

protection to the cocurrent electrical power distribution system's facility

and the electrical equipment, but widely uses in professions and so on

electric power, posts and telecommunications, transportation, Industrial

and mining establishment. Is in the present domestic similar products the

shell rank nominal current highest product. Installs the guide rail is the

35x7.5 standard steel installs the axle handle design when end surface's

place above, the operation security feel is strong, comfortable feel:

When wiring certainly must pay attention to +, - the polarity; ; Under the

power source progresses, conforms to the power source coil in

characteristic, the easy installation, increases the line economical. This

product conforms to IEC60898, GB10963, 2 standard request
