| Prod Model: |
BND-CZL110 |
| Precison: |
C2 & C3 |
| Comprehensive Error(%F.S): |
0.03 & 0.02 |
| Rated Output(Mv/V): |
3.0 |
| Creep(%F.S/30min): |
0.024 & 0.016 |
| Zero Balance(%F.S): |
1.0 |
| Input Resistance: |
350 |
| Output Resistance: |
350 |
| Insulation Resistance: |
5000(100VDC) |
| Excitation Voltage(V): |
9~12(DC) |
| Safe Overload (%F.S): |
150 |
| Material: |
Alloy Steel |
| Pattern: |
Single Point Load Cells |
Product Description

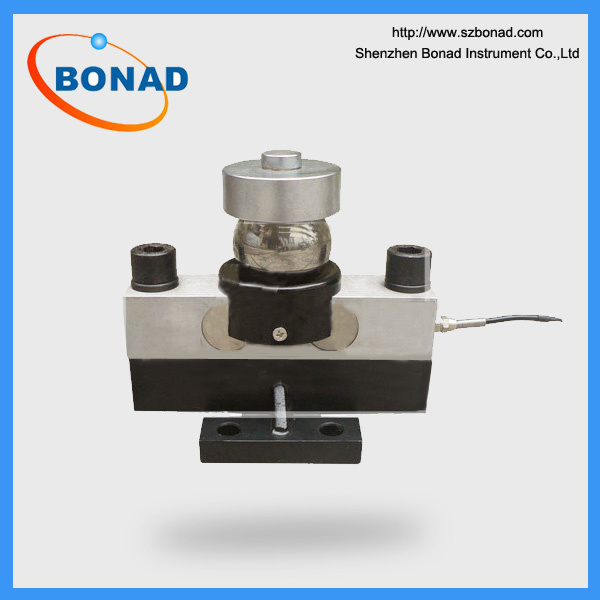

10 Ton Bridege Style Industrial Heavy Load Cell
Rated load:10000kg / 20000kg / 25000kg / 30000kg
Features: Alloy steel & stainless structure; bellows hermetically sealed by laser, nickel plated, waterproof and anti-corrosion, suitable for multiform environments; suitable for electronic platform scales, hopper scales, and other electronic weighing devices.
Application: Industrial Applications.
Detailed Information
Parameters:| Model Number | BND-CZL110 | | Material | Alloy steel | | Precison | C2 & C3 | | Comprehensive error(%F.S) | ±0.03 & ±0.02 | | Rated output(mv/v) | 3.0±0.003 | | Creep(%F.S/30min) | ±0.024 & ±0.016 | | Zero balance(%F.S) | ±1.0 | | Input resistance(Ω) | 350±5 | | Output resistance(Ω) | 350±3 | | Insulation resistance(MΩ) | ≥5000(100VDC) | | Temp. effect on span(%F.S/10ºC) | ±0.017& ±0.011 | | Temp. effect on zero(%F.S/10ºC) | ±0.023 & ±0.015 | | Compensated temp. range(ºC ) | -10~+40 | | Use temp. range(ºC ) | -20~+55 | | Excitation voltage(V) | 9~12(DC) | | Safe overload (%F.S) | 150 | | Ultimate overload (%F.S) | 200 | | Defend grade | IP66 |
|
Wiring schematic diagram:
| Color | Type |
| Red | Input ( + ) |
| White | Output ( - ) |
| Black | Input ( - ) |
| Green | Output ( + ) |
| Notes: It used 6-core shielded cable(φ6.2×16000mm). |
Packaging & Delivery
Packaging : cartons with protective bags
Delivery : Within 3-15days after receiving your payment.
FAQ
1.What's your MOQ?
MOQ for most of our products is 1 unit. If you purchase more products, you will get a better price accordingly.
2.Do you have an OEM/OED service?
Yes! Please contact us for details.
3.What's the lead time?
It depends on the product and the qty.
If it is in stock, 3~7 days will be taken. Normally, 1~2 weeks for most products. 4~7 or more weeks will be needed for complex ones.
Please contact us to confirm.
4.What's the payment term?
T/T, Western Union, Money gram ,PayPal ,etc .
5.What's the shipping way?
Via air , sea or express like DHL, UPC, TNT, FedEx and so on.
6.What's your after-sales service policy?
One year warranty and life long tech support.
