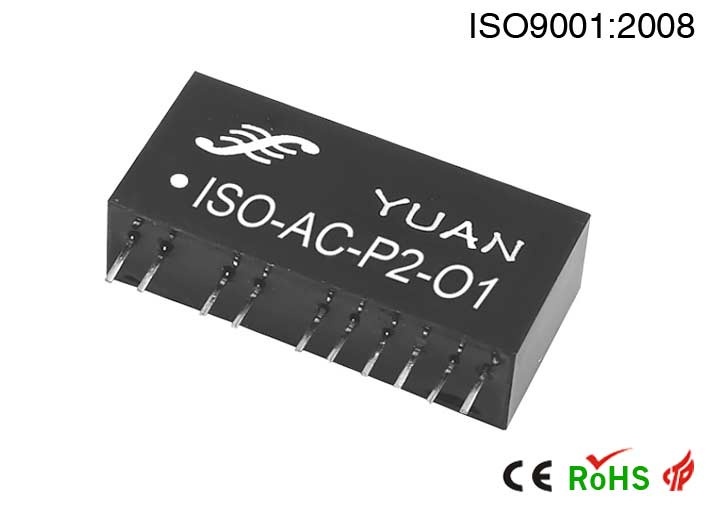

0-1vrms to 0-5V Signal Transmitter with 3kv Isolation
| Price: |
Negotiable/Piece |
| Trade Terms: |
EXW |
| Min Order: |
2/Piece |
| Pay Type: |
T/T,Paypal |
| Prod Model: |
ISO AC-P-O Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Accuracy Grade: |
0.5 |
| Input: |
0-1vrms AC Current (50~60Hz) |
| Power Supply: |
5V, 12V, 15V, 24VDC |
| Output: |
0-10mA /4-20mA/0-5V/0-10V |
| Package: |
SIP 12pin |
Product Description
0-1Vrms to 0-5V Signal Transmitter with 3KV isolation
Features:
Accuracy/linearity error grade: 0.5
Input: 0-1Vrms AC current (50~60Hz)
Power supply: 5V/12V/15V/24VDC
International standard output signal: 0-10mA /4-20mA/0-5V/0-10V
Low cost, small size, SIP12 UL94V-0 package
Temperature Range: - 45 ~ + 85 centigrade
Applications:
AC signal acquisition and transformation
High-precision monitoring used for power transmission and distribution
AC small-signal amplification and conversion
Sensor AC signal converter to standard DC Signal
No distortion in long distance signal transmission
Can be connected to an external transformer to compose single-phase or multiphase transmitter
Specification:
SunYuan ISO series AC-DC signal transmitter IC, is a hybrid integrated circuit that convert the AC Signal acquisition corresponds to a linear DC signal. This circuit integrates a group of multi-channel High-isolation DC / DC power supplies and a group of AC / DC signal converter circuit on the same Chip. Sensors can be collected from the 0-1Vrms (50 ~ 60Hz) AC signal proportional to convert 4-20mA/0-10mA / 0-20mA DC current signal or 0-1V/0-2.5V/0-5V/0- 10V DC voltage signal. An External transformer can be formed after the single-phase or multiphase transmitter isolation Between the input and output signal isolation. Remote monitoring and control products in the Electrical, instrumentation, medical equipment, widely used in the fields of industrial automation.
Part number and description:
ISO AC - P- O
Input
AC: 0~1Vrms
P: Power Supply
P1: 24VDC
P2: 12VDC
P3: 5VDC
P4: 15VDC
P8: User-defined
Output signal
O1: 4-20mA
O2: 0-20mA
O3: 4-12~20mA
O4: 0-5V
O5: 0-10V
O6: 1-5V
O8: User-defined
