1X4/1X8/1X16/1X32/1X64 Sc APC Upc Fiber Optical PLC Splitter

Prod Model:	PLC Splitter
Model No:	Fiber Optic PLC Splitter
Splitter Type:	1X2, 1X4, 1X8, 1X16, 1X32, 1X64
Fiber Size:	0.9mm, 2.0mm, 3.0mm or Bare Fiber
Wavelength:	1260-2650nm
Fiber Type:	Fiber Optic Splitter&Coupler
Connector:	Sc, LC, FC, St
Package:	ABS Box;Steel Tube;Mini ABS Box;with 1u Rack Mount
Allowed Lateral Pressure:	<1000n
Allowed Tensile Strength:	1000n<10000n
Core:	Multicore
Wiring Devices:	Integrated Wiring
Certification:	GS

Product Description

1X4/1X8/1X16/1X32/1X64 SC APC UPC Fiber Optical PLC Splitter


PLC splitter is based on planar Lightwave circuit technology and precision aligning process, can divide a single/dual optical input(s) into multiple optical outputs uniformly and is denoted 1xN or 2xN. PLC splitter is applied in FTTX deployments, GPON/EPON networks, CATV links and optical signal distribution currently. Siemax' PLC splitter offers superior optical performance, high stability and high reliability, meet various application requirements in different environments.

Application:
1.    FTTX networks
2.    PON networks
3.    CATV links
4.    Data Communication

Types:
1.    Basic type PLC splitter
2.    SFF type PLC splitter
3.    900um Fan-out Type PLC Splitter
4.    Cassette type PLC splitter Module
5.    Rack type PLC splitter Module
6.    Tray assembly PLC splitter Module
7.    Flat Quick-Connect Termination Type PLC Splitter Module

Feature:
1.    Low Insertion Loss
2.    Low Polarization Dependent Loss
3.    Wide Operation Wavelength
4.    Wide Operation Temperature
5.    High Stability and Reliability
6.    Telcordia GR-1209 and GR-1221 Compliance
7.    YD/T 2000.1-2009 Compliance (TLC Product Certificate Compliance)

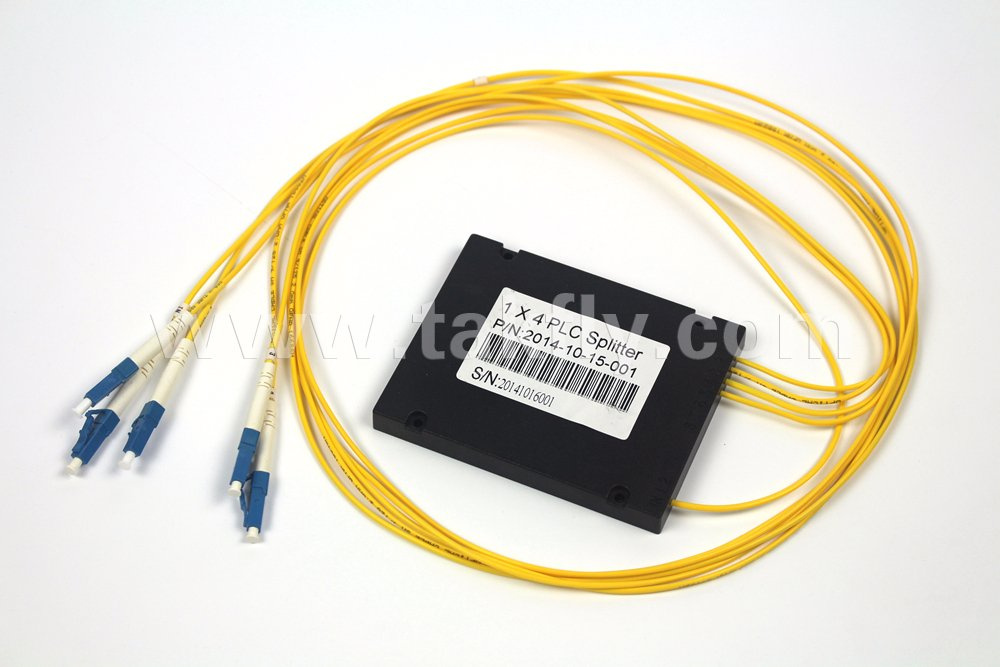

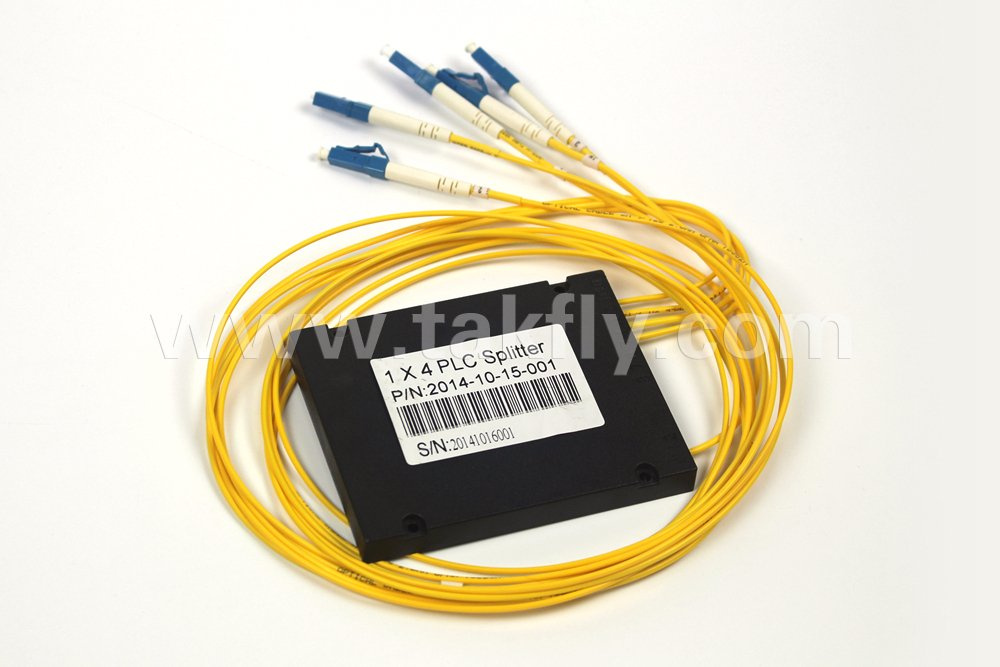

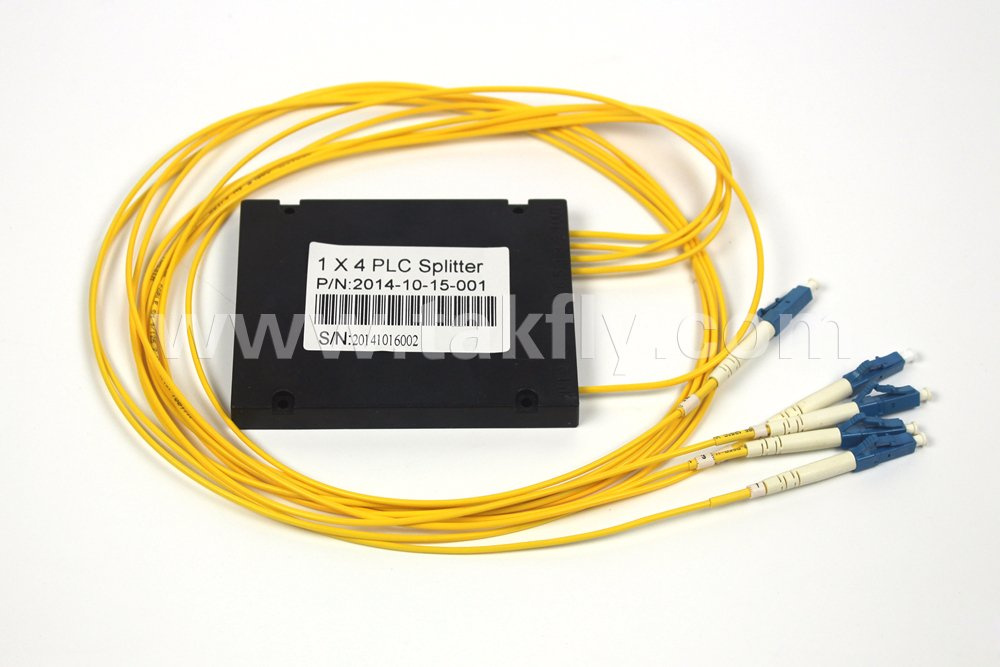

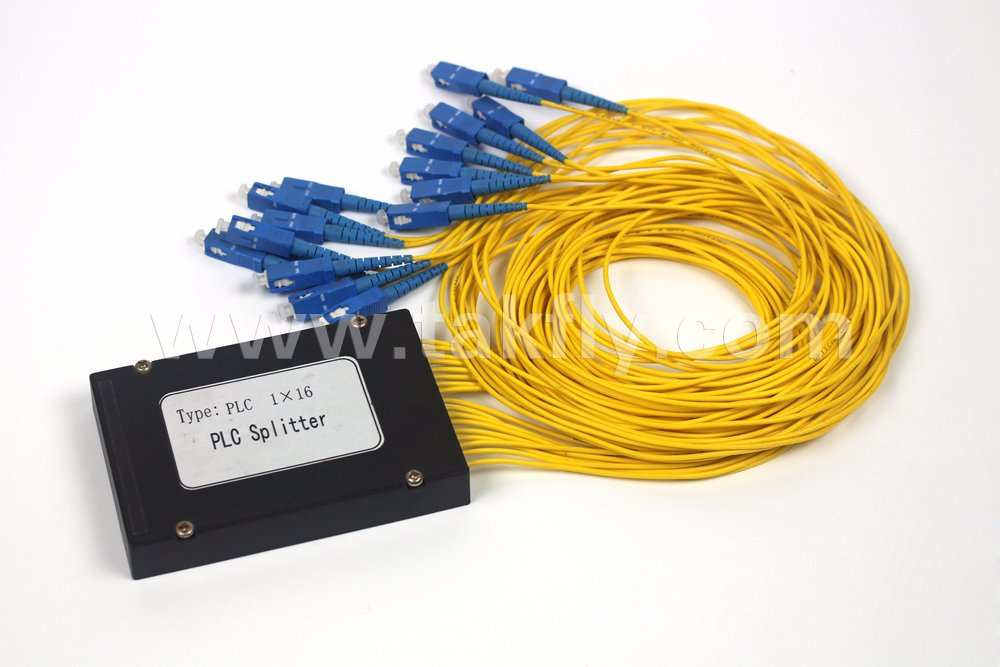

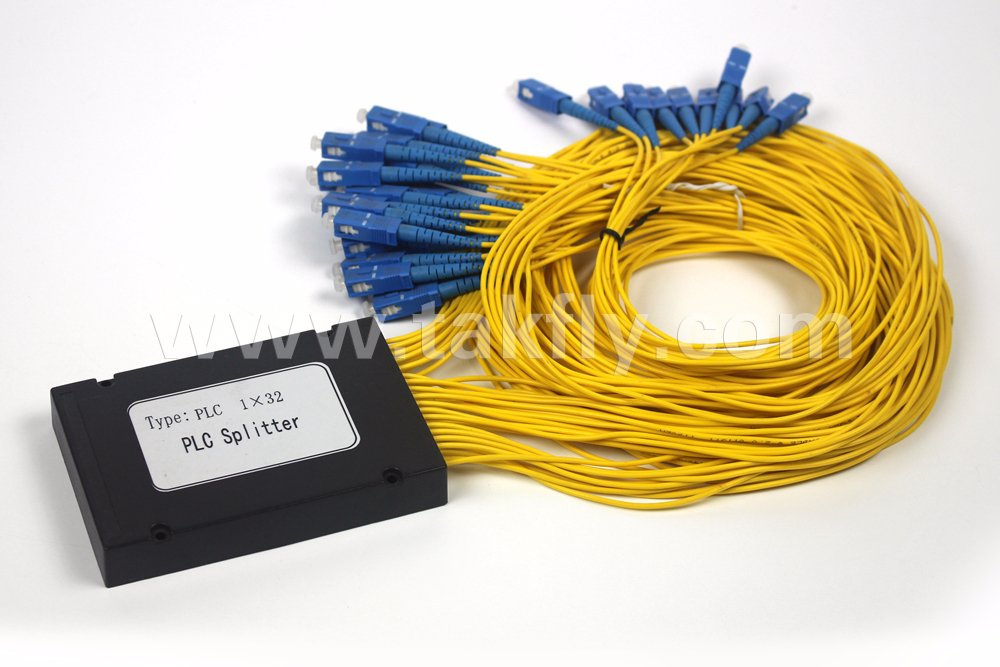

Detail pics





Specification:

Parameter	Unit		1×2	1×4	1×6	1×8	1×12	1×16	1×32	1×64
	Premium Grade
Insertion Loss at 23degC	Typ.	dB	3.9	6.8	9.3	10	12.1	13.2	16.5	20
	Max	dB	4	7	9.6	10.4	12.6	13.5	16.8	20.5
Channel Uniformity	Max	dB	0.6	0.8	1	1	1.6	1.6	1.6	2
PDL	Typ.	dB	0.1	0.1	0.1	0.1	0.2	0.2	0.2	0.2
	Max	dB	0.2	0.3	0.3	0.3	0.3	0.3	0.3	0.5
	Standard Grade
Insertion Loss at 23°C	Typ.	dB	4	7	9.5	10.4	12.4	13.6	17	20.5
	Max	dB	4.2	7.3	10	10.6	12.8	13.8	17.1	20.8
Channel Uniformity	Max	dB	0.6	0.8	1	1	1	1.4	1.6	2
PDL	Typ.	dB	0.1	0.1	0.1	0.1	0.2	0.2	0.2	0.3
	Max	dB	0.2	0.3	0.3	0.2	0.3	0.3	0.3	0.5
Return Loss	Min	dB	55 (Premium Grade)/50 (Standard Grade)
Directivity	Min	dB	55
Operation Wavelength	nm		1260~1650
Operation Temperature	degC		-4-~+85
Storage Temperature	degC		-4-~+85
Fiber Type	-		G.657A or Customized



Parameter	Unit		2×2	2×4	2×8	2×16	2×32	2×64
	Premium Grade
Insertion Loss at 23degC	Typ.	dB	4	7.2	10.6	13.8	17	20.6
	Max	dB	4	7.3	11	13.9	17.2	20.8
Channel Uniformity	Max	dB	0.8	1	1.2	1.5	1.8	2
PDL	Typ.	dB	0.2	0.2	0.2	0.2	0.2	0.3
	Max	dB	0.2	0.3	0.3	0.3	0.3	0.5
	Standard Grade
Insertion Loss at 23°C	Typ.	dB	4	7.5	11	14.3	17.4	20.8
	Max	dB	4.2	7.5	11	14.5	17.5	21
Channel Uniformity	Max	dB	1.2	1.5	1.6	2	2.5	3
PDL	Typ.	dB	0.2	0.2	0.2	0.2	0.2	0.3
	Max	dB	0.3	0.3	0.3	0.3	0.3	0.5
Return Loss	Min	dB	55 (Premium Grade)/50 (Standard Grade)
Directivity	Min	dB	55
Operation Wavelength	nm		1260~1650
Operation Temperature	degC		-4-~+85
Storage Temperature	degC		-4-~+85
Fiber Type	-		G.657A or Customized

Pics about Takfly



Why choose Takfly ?
Service
1.Customer's logo: Acceptable
2.General inspection on fixing before packing
3.Third party inspection: Acceptable

Quality Control
All products must go through five checks before manufacturing process

1.Material incoming inspection before production
2.Full check after every individual process finished
3.Full check after production half-done
4.Full check before packing
5.Spots check after production packed before shipping

Advantages:
1.15 years experience in manufacturing fiber optic products..
2.Availability of R & D with more than 10 engineers.
3.Available of design and making mold with special molding house.
4.High quality, attractive price and fast delivery(2-7days)
5.OEM, ODM customer designs are also welcomed
6.More than 200 workers
7.Excellent service

Delivery:
1.Packing: Plastic bag& carton, Neutral packing or as your required.
2.Sample time: 1-3 days after confirm
3.Order lead time: 2-7working days depend on quantity and products.
4.Shipping port: Shenzhen China or HK
5.Shipping term: EXW or FOB

Payment:
Acceptable by T/T, West Union, PayPal and L/C according to your requirement

Shipping
1.Once confirmed the order, and payment sent after finishing goods. 2.Goods will be sent within 7 days with the fast,reasonable and efficient shipping mode such as DHL, EMS, UPS,FEDEX, TNT, etc.
3.Please make sure your postal address is correct. Any lost and mistakes because  of wrong address are not supplier's responsibility.
4.Please do not bid if you disagree with the shipping and handling charge.


Contact
1.Our working time:8:30am~6:00pm
2.All the inquiries will be replied within 24hours, So please feel free to send us your inquiry.
3.When our trade manager is off line, please feel free to leave a message, and tell us the products you  need, our model number, and your E-mail address, we will  reply to you within 24hours too.


Any question about this PLC splitter,please leave me an inquiry or contact me directly.
