2.0mm/3.0mm Fiber Optic Single-mode SC APC Simplex Connectors

Name: 2.0mm/3.0mm Fiber Optic Single-mode SC APC Simplex Connectors
Brand: all-electronics-online.com
SKU: 815370725
Availability: InStock
Rating: 4.4 (112 reviews)

Price:	US $ 0.1-0.5/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	P098
Cable Diameter:	2.0/3.0
Polishing:	APC
Ferrule:	Zirconia
Type:	Single-mode Fiber
Connection Structure:	SC-SC
Material Shape:	Round Wire
Allowed Lateral Pressure:	100N
Allowed Tensile Strength:	>10000N
Sheath Material:	PVC
Transmission Medium:	Single-Mode
Structure:	SC
Number Of Cores:	Single-Core
Ferrule Endface:	APC
Light Source TYPE:	Fiber

Product Description

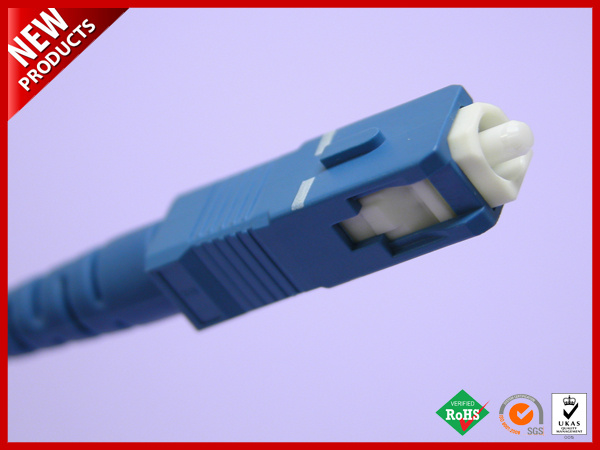

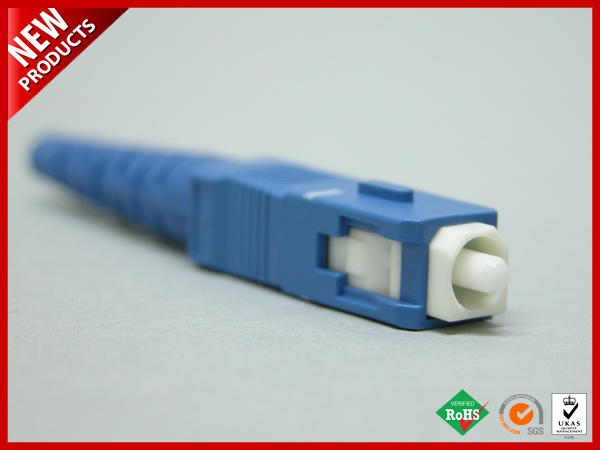

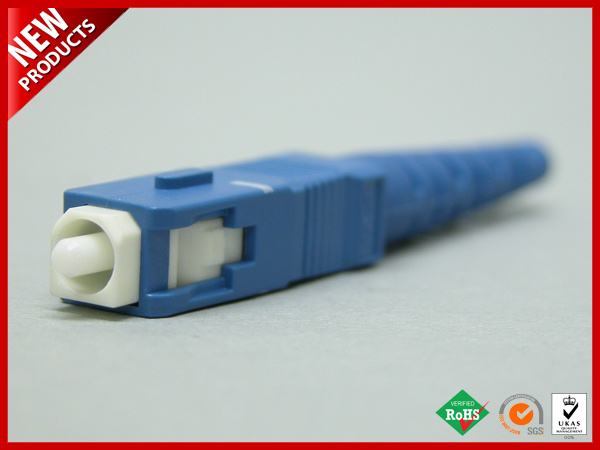

2.0mm/3.0mm Fiber Optic Single-mode SC APC Simplex Connectors
Fiber Optical Connectors effectively terminate optical fiber in a variety of network applications. The connectors are secured using a threaded coupling nut, providing a significant increase in pull-out performance. It also feature an internal cavity and epoxy injection tube that virtually eliminates the possibility of improper epoxy application, thus providing higher manufacturing yields. Every aspect of the connector system is precision manufactured to produce reliable and consistent performance. It is available in tunable or non-tunable PC versions for flexibility in specific performance requirements.

Features:

Low insertion loss;
High return loss;
High interface performance;
Latched push-pull integrated;
Differential color coded;
UL standard accessories, comply with RoHS.

Applications:

Telecom network;
Ethernet network;
Optical laser;
Optical communication equipment;
CATV network.

Standard Compliance:

TIA-568-C.3 performance requirements;
Telcordia GR-326 end face geometry;
Telcordia GR-326 service life tests;
IEC61754-20 and TIA-604-10 intermateability.

Technical Information:

Standards requirements	TIA/EIA-604 FOCIS-10 compatible; exceeds TIA/EIA-568-B.3 requirements
Fiber compatibility	62.5/125μm OM1, 50/125μm OM2,10Gig 50/125μm laser optimized OM3/OM4 and 9/125μm OS1
Fiber cable type	900μm tight-buffered fiber recommended 250μm coated fiber, by using F250BT-C 250 micron fiber build-up tube kit or FO6CB or FO12CB fan-out kit
Jacketed cable size	1.6mm - 2.0mm - 3.0mm jacketed cable
Ferrule type	Zirconia Ceramic
Insertion loss	0.1dB average (Multimode and Single-mode)
Return loss	>20dB (Multimode), >40dB (Single-mode)

International Authoritative Certification:

Compliance with the international ISO9001, CE, FCC, RoHS standards. FOCC strict implementation of standardized management and control of the design, development, production, installation and service.

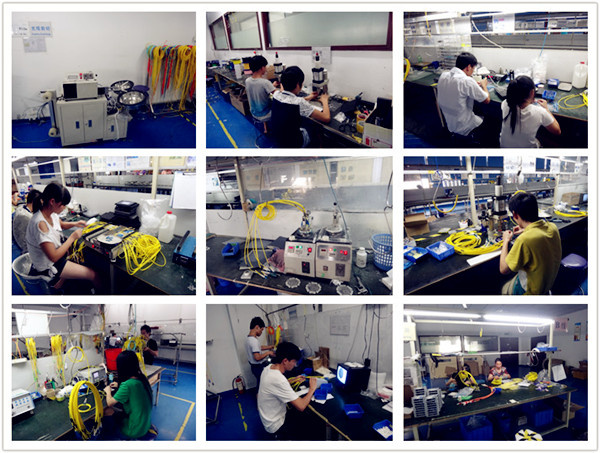

Workshop Overviews:

Among the total workshop area of more than 12,000 square meters, dust-free workshop room accupies 500 square meters while dust-proof room occupies 6,500 square meters.

Puno Optic Technology Co., Limited. Is the Chinese manufacturing company of superior quality, specialized in assembling connectors on optical fiber cable, was created on January 1, 2005 after spending three years as an incubated division, and became the international department to offer products around the world.

Today, PUNO promotes the same original culture that has made us successful over the years. We strive to incorporate the highest level of quality in every product we produce, transaction we complete, and effort we undertake.

MISSION

We work with passion to create faster connections between people, places, ideas and values.

VISION

Representing the excellence and values of Made In China worldwide.

VALUES

Quality, Innovation, Expertise, Flexibility, Collaboration, Commitment, Honesty.

MARKET

Telecomunicazioni - Telecommunications - Data Center - Broadcasting - Military - Sensor - Transportation

EXPERTISE

More than 10 years in the fiber optics field: In 2008 we developed one of the international sales office located in HK, the powerful city in China.

PARTNERSHIP

China Mobile, China Union, China Telecom, Huawei, Foxconn.
