| Prod Model: |
PN75 |
| Color: |
Black |
| Material: |
Metal |
| Fiber Count: |
1 Cores |
| Fiber Type: |
Singlemode |
| Tensile: |
1000N |
| Fiber Polishing: |
APC |
| Cable: |
2.0mm/3.0mm |
| Type: |
Single-mode Fiber |
| Connection Structure: |
SMA905 |
| Material Shape: |
Round Wire |
| Allowed Lateral Pressure: |
>1000（N/100mm） |
| Allowed Tensile Strength: |
1000N<10000N |
| Core: |
Double Core |
| Certification: |
CE, RoHS, ISO9001, UL |
| Sheath Material: |
Metal |
| Connector Type: |
SMA905 |
| Application: |
Art, Sensor, Communication, Medicine |
Product Description

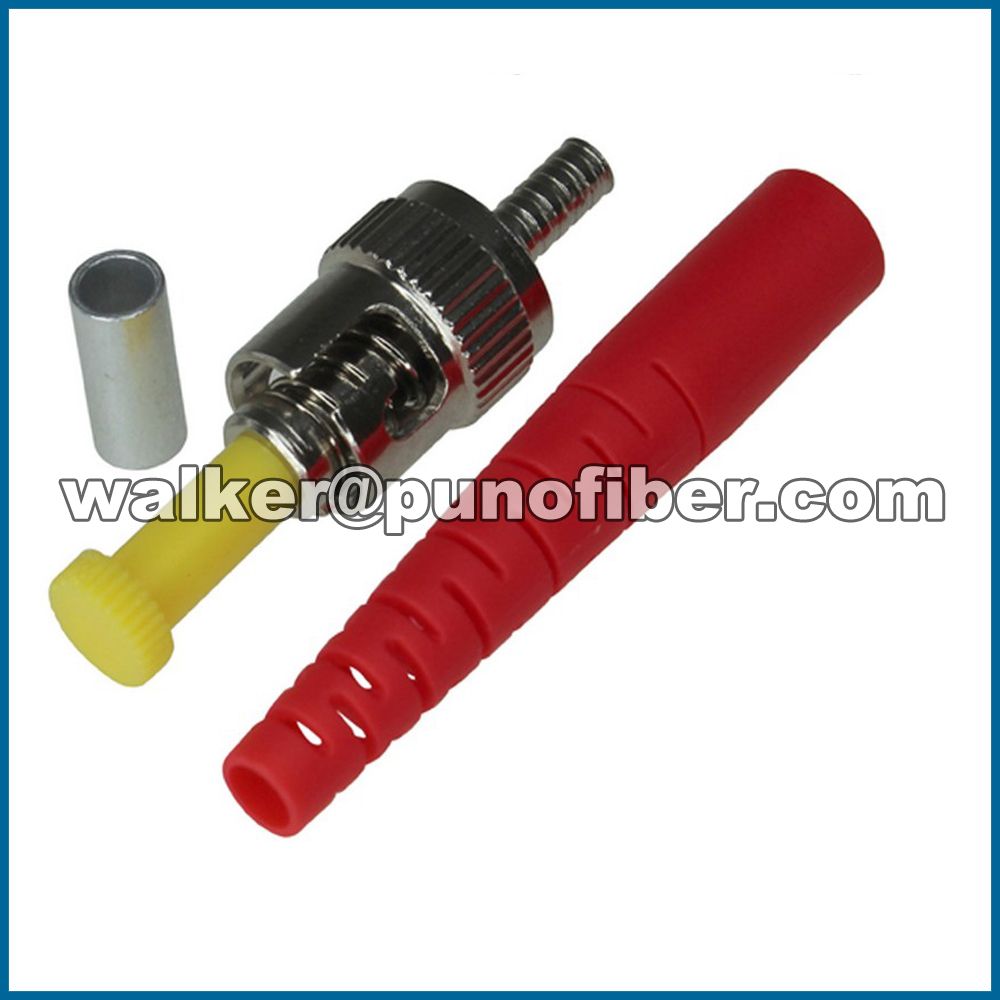

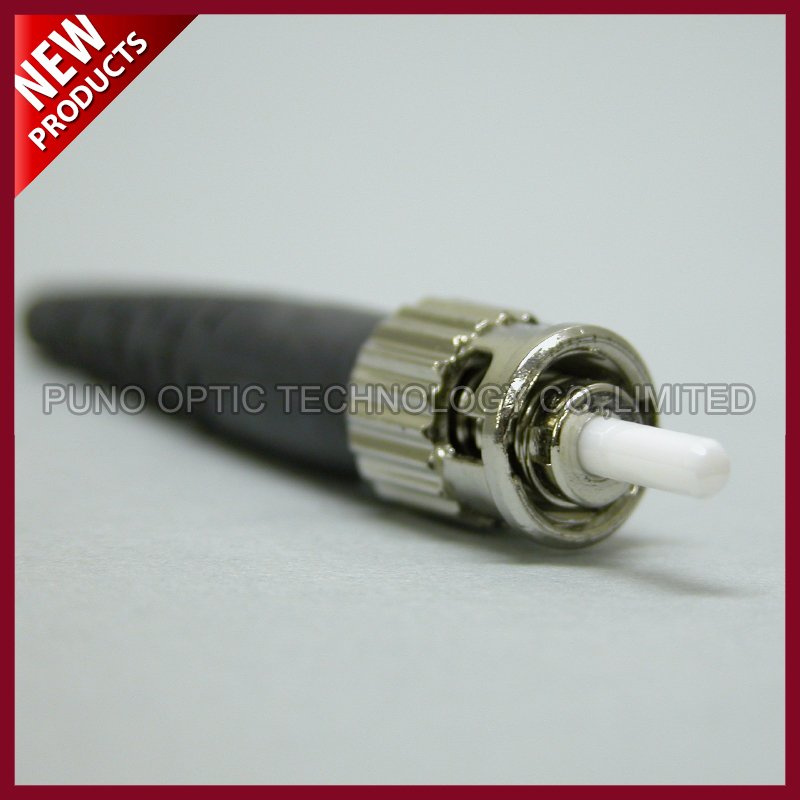

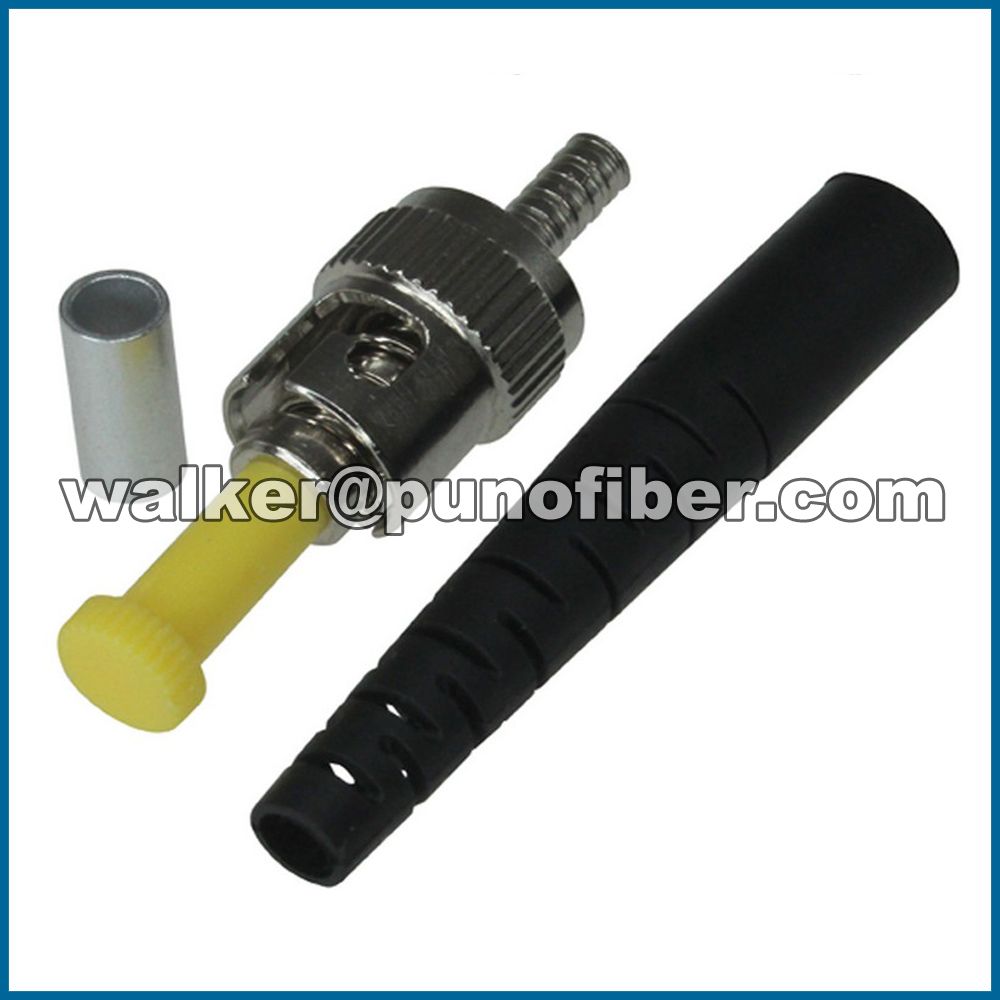

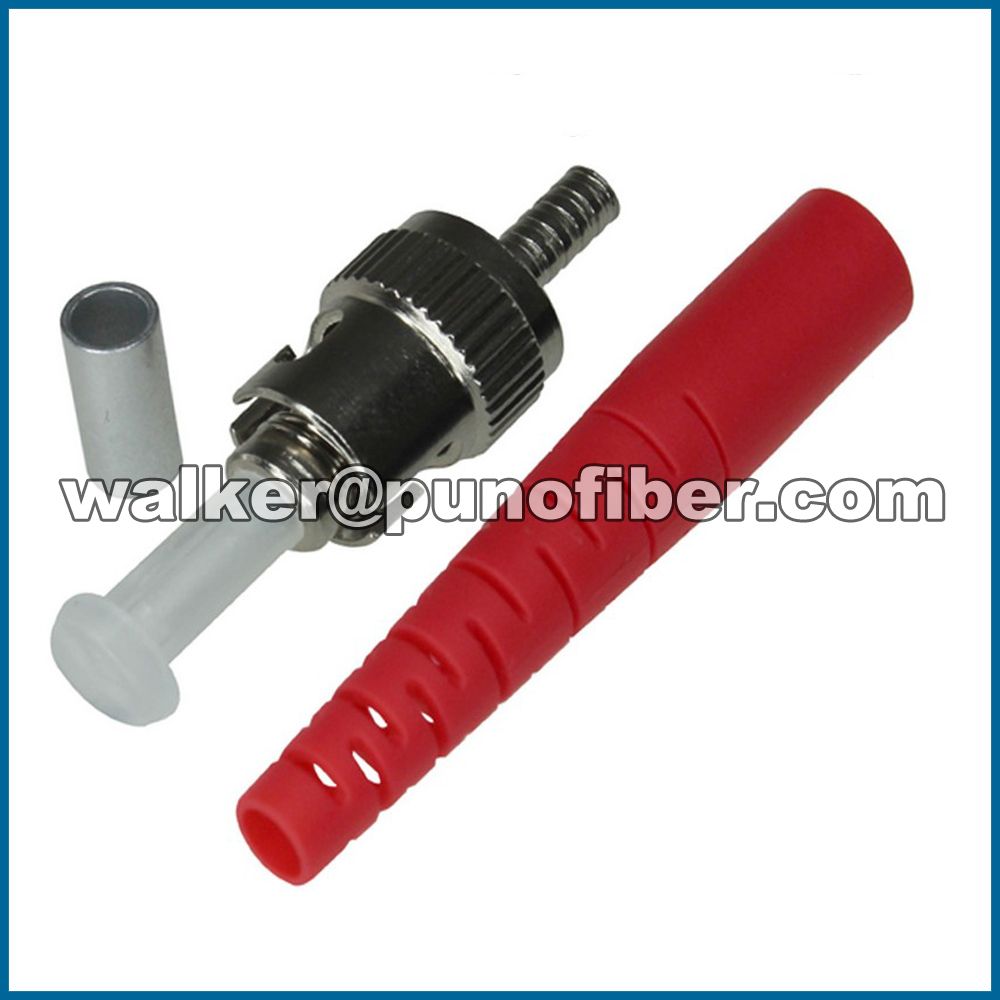

2.0mm/3.0mm Single-mode ST APC Simplex Connectors
Description:
ST connector has a bayonet-style housing and a long spring-loaded ferrule hold the fiber. They are
available in both multi-mode or single-mode versions. Horizontally mounted simplex and duplex
adapters are available with metal or plastic housing, with a choice of phosphor bronze or zirconia
split sleeve. The ST is one of the older generations of connector, but is still widely used for
multimode networks, including LANs for buildings and campuses.
Features:
Coupling nut radial track minimizes the rotation needed to mate the connector;Assembly body construction simplifies fields assembly (Quiok Cure set);
Single mode and multimode versions a available;
Low insertion loss;
Ultra low back reflection;
Accommodates tight and loose tube buffer cables with jacket up to 3 mm;
Ceramic ferrules are configured for easy hand or machine "Super"PC and "Ultra" Polishing;
Optional boot colors avaible;
Boot size and color options.
Application:
Telecommunication;
CATV;
LAN & WAN;
Network;
FTTP.
Standard Compliance:
TIA-568-C.3 performance requirements;
Telcordia GR-326 end face geometry;
Telcordia GR-326 service life tests;IEC61754-20 and TIA-604-10 intermateability.
Technical Information:| Standards requirements | TIA/EIA-604 FOCIS-10 compatible; exceeds
TIA/EIA-568-B.3 requirements |
| Fiber compatibility | 62.5/125μm OM1, 50/125μm OM2,10Gig 50/125μm laser
optimized OM3/OM4 and 9/125μm OS1 |
| Fiber cable type | 900μm tight-buffered fiber recommended
250μm coated fiber, by using F250BT-C 250 micron
fiber build-up tube kit or FO6CB or FO12CB fan-out kit |
| Jacketed cable size | 1.6mm - 2.0mm - 3.0mm jacketed cable |
| Ferrule type | Zirconia Ceramic |
| Insertion loss | 0.1dB average (Multimode and Single-mode) |
| Return loss | >20dB (Multimode), >40dB (Single-mode) |
Cable Parameter:| No. | Items | Unit | Specification |
| G.655E |
| 1 | Mode Field Diameter | 1550nm | μm | 8.0~11.0±0.6 |
| 2 | Cladding Diameter | μm | 125.0±1.0 |
| 3 | Cladding Non-Circularity | % | ≤1.0 |
| 4 | Core-Cladding Concentricity Error | μm | ≤0.6 |
| 5 | Coating Diameter | μm | 245±10 |
| 6 | Cladding-Coating Concentricity Error | μm | ≤12.5 |
| 7 | Cable Cutoff Wavelength | nm | λcc≤1450 |
| Characteristic | Conditions | Units | Value |
| Temperature Dependence Induced Attenuation | -60ºC to +85ºC | dB/km | ≤0.05 |
| Temperature Humidity Cycling Induced Attenuation | 85ºC,RH 85%,30 Days | dB/km | ≤0.05 |
| Water Soak Dependence Induced Attenuation | 23ºC,30 Days | dB/km | ≤0.05 |
| Dry Heat Aging Induced Attenuation | 85ºC,30 Days | dB/km | ≤0.05 |

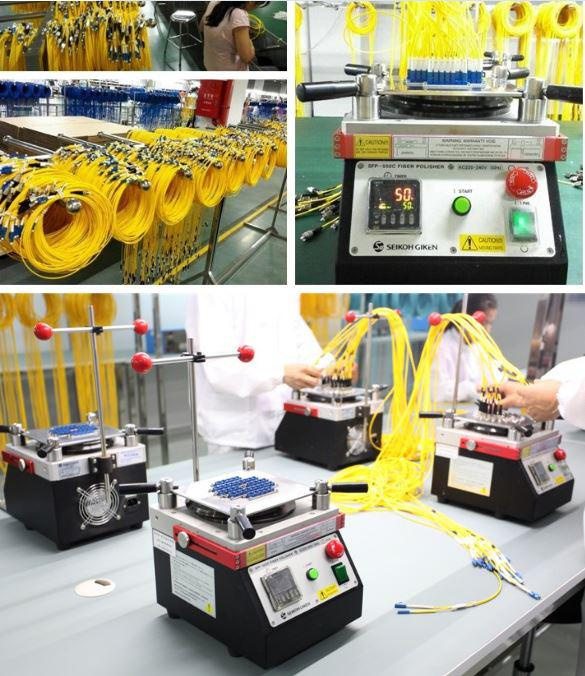

Workshop Overviews:Among the total workshop area of more than 12,000 square meters, dust-free workshop room accupies 500 square meters while dust-proof room occupies 6,500 square meters.
Payment & Shipping Terms:| Minimum Order Quantity | 1 Piece MOQ On Request |
| Packaging Details | 10 or 20 PCS / Plastic Tray, 1 PC / Gift Box |
| Delivery Time | Delivery In 7 - 15 Business Days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000 Pieces Per Monthly |
Ordering Information - Fiber Optical Connector:| Fiber Type | 5-50/125; 6-62.5/125; 9-9/125; O-OM3 |
| Connector Type | F-FC S-SC T-ST L-LC M-MU |
| Polish Type | P-PC U-UPC A-APC |
| Operating Wavelength | 1-850nm; 2-1310nm; 3-1550nm; 4-1310/1550nm; 5- 1310/1490nm |
