| Prod Model: |
PN-003 |
| Color: |
Black Boot |
| Material: |
Metal |
| Fiber Count: |
Simplex |
| Fiber Type: |
Singlemode |
| Tensile: |
1000N |
| Type: |
Single-mode Fiber |
| Connection Structure: |
DIN |
| Material Shape: |
Round Wire |
| Allowed Lateral Pressure: |
>1000（N/100mm） |
| Allowed Tensile Strength: |
1000N<10000N |
| Core: |
Single Core |
| Certification: |
CE, RoHS, ISO9001, UL |
| Sheath Material: |
Metal |
| Connector Type: |
DIN |
| Application: |
Art, Sensor, Communication, Medicine |
Product Description

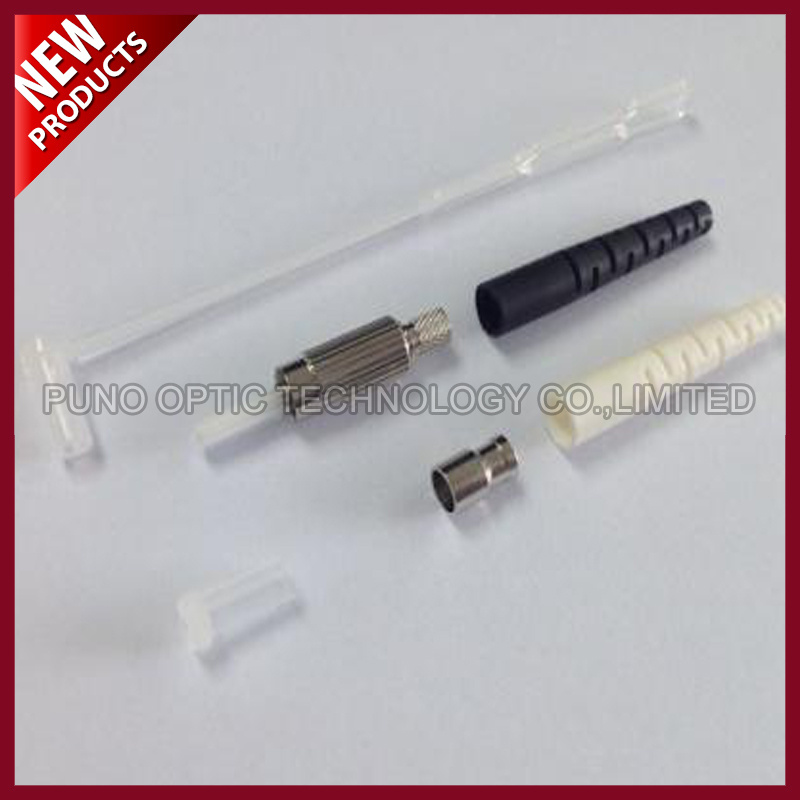

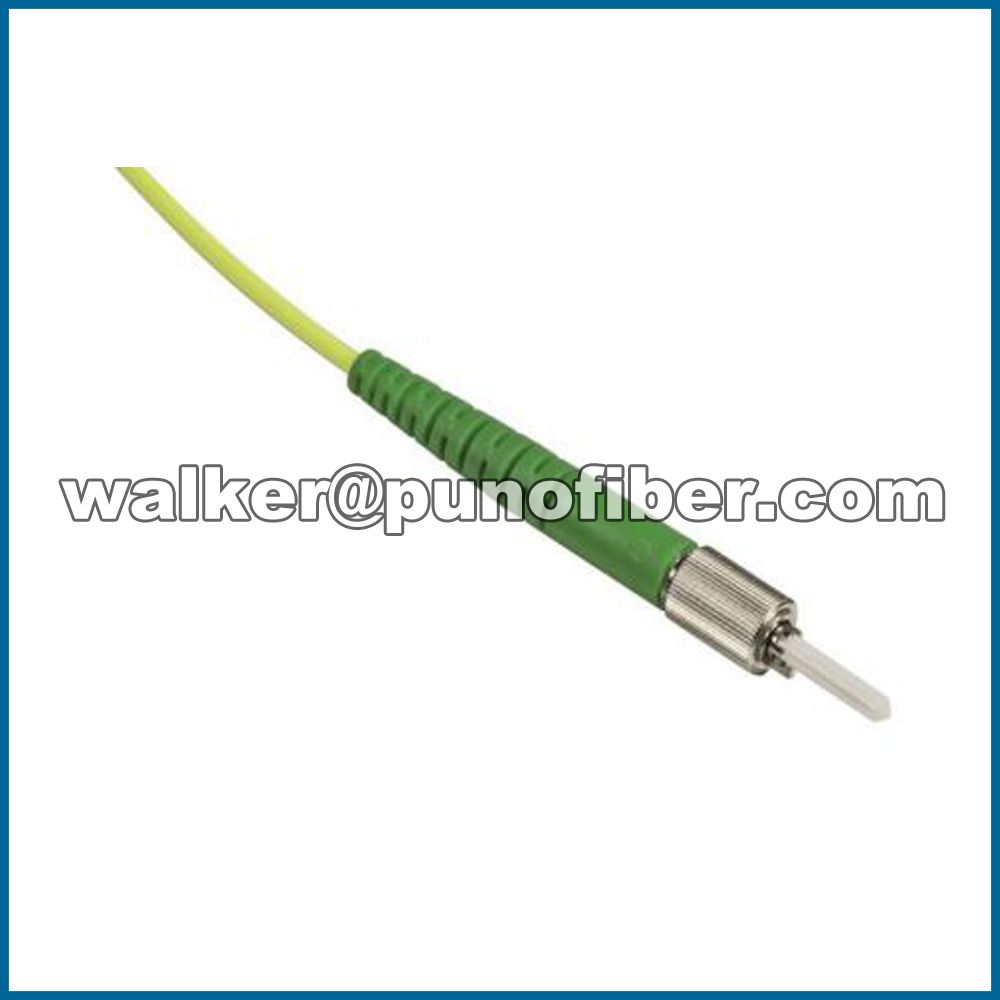

2.0mm DIN Epoxy Fiber Optic Simplex Single-mode Connectors
This unique DIN fiber optic connector gives high performance in a small, DIN 47256 compatible design suitable for a wide range of applications. The DIN connectors are made of precision screw machined nickel plated brass for consistent performance and durability.
Features of DIN Connector:
Connector compatible with DIN 47256;
Low insertion loss and high return loss;
Boot of Telcordia type - side-pulling proof;
High quality ceramic ferrule;
LSA(PC) and LSA-HRL(8 APC) available;
Compact size.
DIN Connector availability:
The DIN connector is available with a variety of boots. The DIN fiber connector comply with CECC 86 135-801 (PC version) and CECC 86 135-802 (APC version) standards. We supply single-mode DIN connector and multimode DIN connector.
Application of DIN connector:
These DIN fiber connectors are widely used in telecommunications, CATV, LAN, MAN, WAN, test & measurement, industry, medical and sensors.Technical Information:| Standards requirements | TIA/EIA-604 FOCIS-10 compatible; exceeds
TIA/EIA-568-B.3 requirements |
| Fiber compatibility | 62.5/125μm OM1, 50/125μm OM2,10Gig 50/125μm laser
optimized OM3/OM4 and 9/125μm OS1 |
| Fiber cable type | 900μm tight-buffered fiber recommended
250μm coated fiber, by using F250BT-C 250 micron
fiber build-up tube kit or FO6CB or FO12CB fan-out kit |
| Insertion loss | 0.1dB average (Multimode and Single-mode) |
| Return loss | >20dB (Multimode), >40dB (Single-mode) |
Payment & Shipping Terms:| Minimum Order Quantity | 1 Piece MOQ On Request |
| Packaging Details | 10 or 20 PCS / Plastic Tray, 1 PC / Gift Box |
| Delivery Time | Delivery In 7 - 15 Business Days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000 Pieces Per Monthly |
Ordering Information - Fiber Optical Connector:| Fiber Type | 5-50/125; 6-62.5/125; 9-9/125; O-OM3 |
| Connector Type | F-FC S-SC T-ST L-LC M-MU |
| Polish Type | P-PC U-UPC A-APC |
| Operating Wavelength | 1-850nm; 2-1310nm; 3-1550nm; 4-1310/1550nm; 5- 1310/1490nm |
Quality Control:1. Our adopt industry's leading high-performance polishing machine, and complemented by precision plates holders designed for MT ferrules.
2. The industry leading device of 3D interferometer provides verification of MTP/MPO polishing process, the interferometer making all parameters of hte polished MT ferrule complies and exceeds industry standards.
3. After the 3D interference detection, the flexibility of the tester provides the the complete spectrum of optical testing required for complex and high fiber count cable assemblies.
