2.0mm E2000 APC Singlemode Optic Green Connectors
| Price: |
US $ 1-1.5/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
PN004 |
| Color: |
Green |
| Material: |
Plastic |
| Fiber Type: |
Singlemode |
| Fiber Polishing: |
APC |
| Cable: |
2.0mm |
| Material Shape: |
Round Wire |
| Allowed Lateral Pressure: |
1000N |
| Core: |
Single Core |
| Transmission Medium: |
Single-Mode |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
APC |
| Structure: |
E2000 UPC |
| Light Source TYPE: |
Fiber |
| Connector Type: |
E2000 |
Product Description

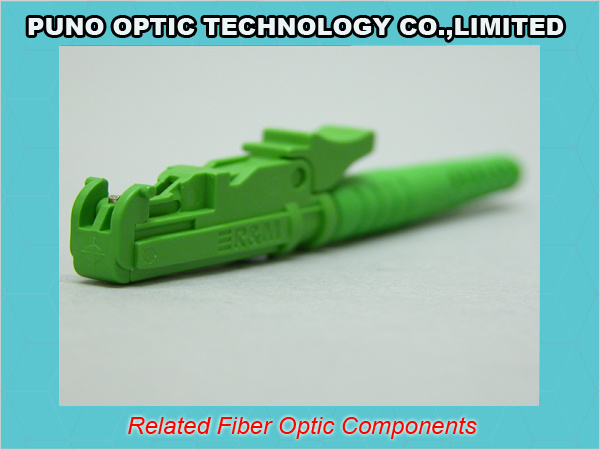

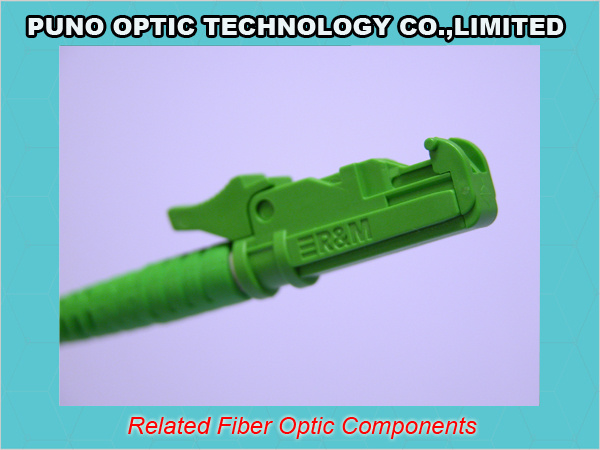

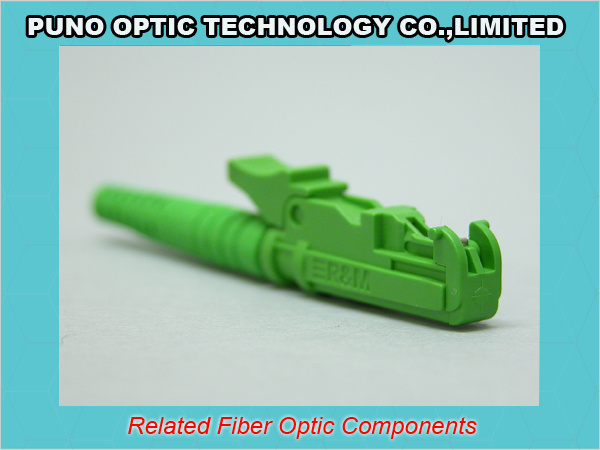

2.0mm E2000 APC Single-mode Optic Green Connector
Designed to be the ultimate in optical fibre connectors, the E2000 connector exceeds all standards for connector performance and operation. Designed to be easy to terminate, the one piece ferrule assembly saves time and provides trouble free operation. With the power of today's laser transmitters emitting levels that are a danger to an unprotected user the E2000 offers a level of protection no other connector can match. Each E2000 connector and adapter have their own shutter that automatically opens and closes as the connector is mated and unmated.
Features / Benefits
Latched push-pull operation;
Automatic metal shutter on connector and adapter for dust and laser protection;
Safe for use in high power laser applications;
One-piece design for easy termination;
Color coding of connector and adapter;
Mechanical coding of connector and adapter.
Specifications | Compliance | IEC 61754-15, TIA 604-16 |
| Technology | Full ceramic ferrule and sleeve |
| Tuning | in 60° steps |
| Mechanical resistance | 100N tensile load |
| Thermal resistance | -40ºC to +85ºC, stock temperature range |
| Flammability | UL 94-V0 |
| Durability | Min. 1000 mating cycles |

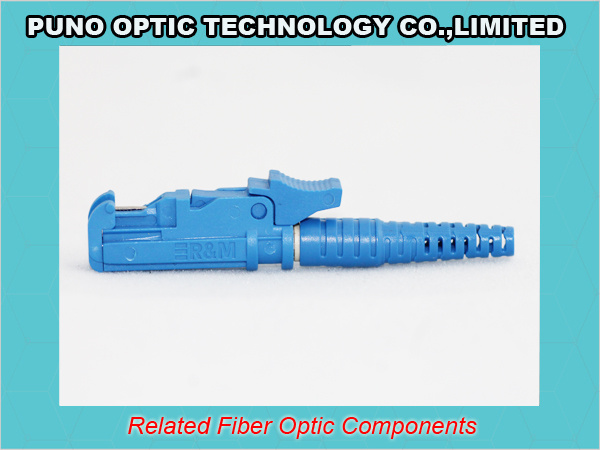

Color of housing | Single-mode, blue |
| SM (APC 8°), green |
| Multimode, beige |
Color KeyingThe E-2000TM system permits the user to specify the color of the thumb-latch and the mating adapter frame so that different line types, uses, destinations and points of origin, etc. can be readily identified. The thumb-latch and frame are available in eight distinct colors:
1. Blue (RAL 5015) 5. Orange (RAL 2003);
2. Beige (White) (RAL 1013) 6. Yellow (RAL 1016);
3. Black (RAL 9005) 7. Green (RAL 6018);
4. Red (RAL 3020) 8. Violet (RAL 4008).
Technical Information | Standards requirements | TIA/EIA-604 FOCIS-10 compatible; exceeds
TIA/EIA-568-B.3 requirements |
| Fiber compatibility | 62.5/125μm OM1, 50/125μm OM2,10Gig 50/125μm laser
optimized OM3/OM4 and 9/125μm OS1 |
| Fiber cable type | 900μm tight-buffered fiber recommended
250μm coated fiber, by using F250BT-C 250 micron
fiber build-up tube kit or FO6CB or FO12CB fan-out kit |
| Insertion loss | 0.1dB average (Multimode and Single-mode) |
| Return loss | >20dB (Multimode), >40dB (Single-mode) |
Payment & Shipping Term | Minimum Order Quantity | 1 Piece MOQ On Request |
| Packaging Details | 10 or 20 PCS / Plastic Tray, 1 PC / Gift Box |
| Delivery Time | Delivery In 7 - 15 Business Days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000 Pieces Per Monthly |
Ordering Information - Fiber Optical Connector | Fiber Type | 5-50/125; 6-62.5/125; 9-9/125; O-OM3 |
| Connector Type | F-FC S-SC T-ST L-LC M-MU E-E2000 |
| Polish Type | P-PC U-UPC A-APC |
| Operating Wavelength | 1-850nm;
2-1310nm;
3-1550nm;
4-1310/1550nm;
5- 1310/1490nm |
