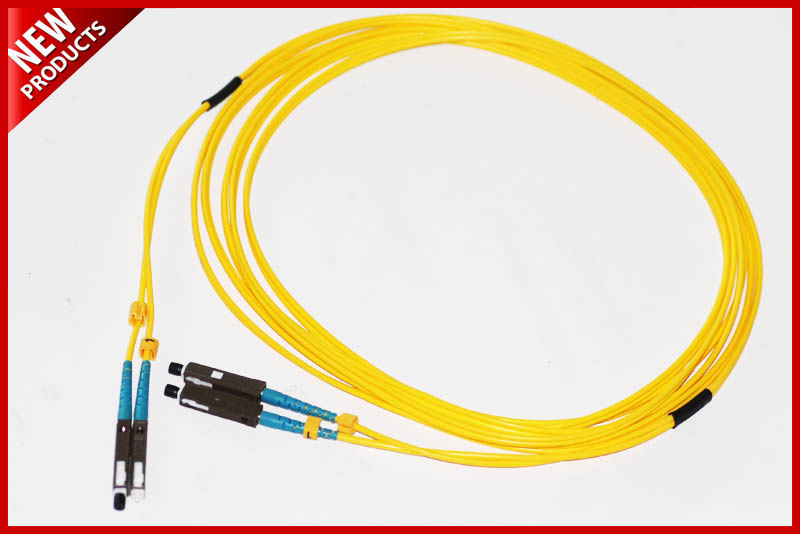

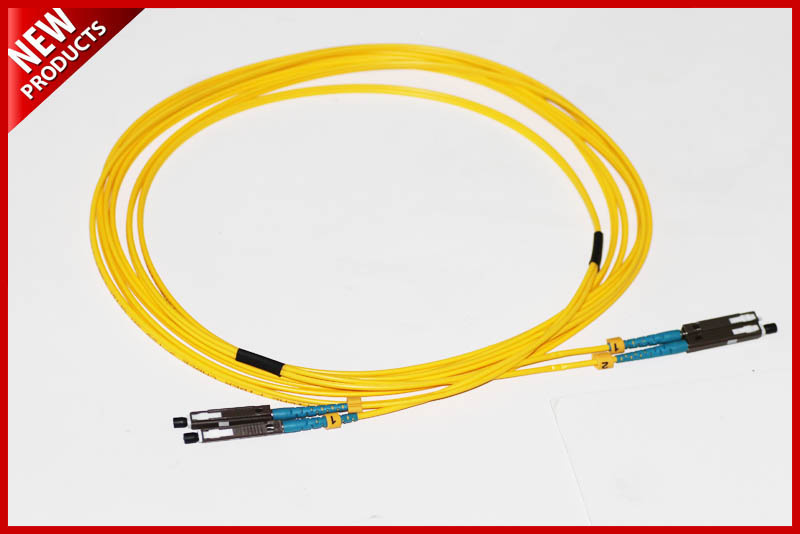

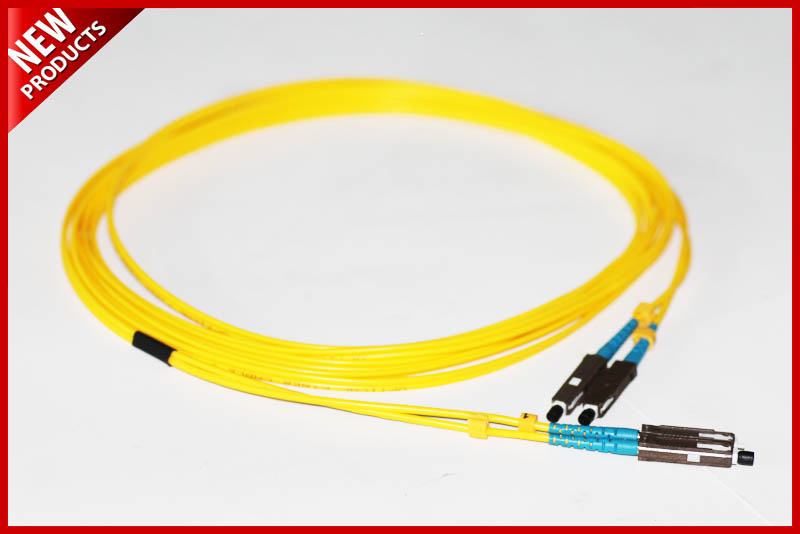

2.0mm MU to MU Singlemode Simplex Fiber Optical Patch Cords

Prod Model:	007
Cable Diameter:	2.0mm
Jacket:	PVC
Color:	Yellow
Fiber Type:	Singlemode, OS2
Fiber Count:	1
Fiber Core:	Corning
Connector:	MU
Weight:	0.1 lbs
Application:	Probe
Type:	Single-mode Fiber
Certification:	CCC
Sheath Material:	LSZH
Connection Structure:	E2000

Product Description

2.0mm MU to MU Singlemode Simplex Fiber Optical Patch Cords

Fiber optic patch cable, also called fiber optic patch cord or fiber patch cord, is one of the most basic and important parts in optical communication. Fiber optic patch cable is generally used for linking the equipment and components in the fiber optic network, eg. linking between the fiber optic converter and termination box. At the ends of fiber optic patch cable, there are fiber optic connectors.In general, the fiber optic patch cable types are classified by the fiber optic connector types. The commonly used fiber optic patch cable types include SC fiber patch cord, ST fiber optic patch cord, LC fiber optic patch cord, FC fiber optic patch cord etc.

Application
Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers, at the desk and network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas.

Construction

Fiber count	Simplex (1-fiber) tight buffered Duplex (2-fiber) jacketed zipcord
Cable jacket ratings	Riser (OFNR) Low Smoke Zero Halogen (LSZH) per: IEC 60332-1-2, IEC 60332-3-24, IEC 60754-1, IEC 60754-2, IEC 61034-2
Fiber types	Singlemode: OS2 (G.652.D) 9/125 LWP Bend-Insensitive (G.657.A2/B2)
Connector types end 'A'	Simplex or Duplex MU/APC, MU/APC
Connector type end 'B'	Simplex or Duplex MU/APC, MU/APC
Jacket color	OS2 (G.652.D): Yellow OS2 (G.657.A2/B2): Yellow
Note: For hybrid cords, the MU connector is always on End B.

Physical Properties

Cable outside diameter (OD)	1.6mm duplex and simplex 3mm duplex and simplex 900 micron tight buffered
Connector cable retention	50N @ 0°C 19.4N @ 90°C
Connector durability	500 cycles
Bend radius, minimum	1.6mm: 16mm 3mm: 29mm 900 micron: 9mm

Optical Properties

Connector insertion loss	0.30dB max. (FC/APC - OS2 both) 0.50dB max. (FC/APC - OS2 both)
Connector return loss	0.65dB min.

Environmental Properties

Storage and shipping temperature	-40°C to 70°C
Operating and installation temperature	Riser: -20°C to 70°C LSZH: -20°C to 70°C

Keyed Characteristics
√ Available SC, FC, ST, LC Connector Assembled;
√ Stainless steel tube & metal braid under outer LSZH jacket;
√ Micro diameter stainless steel tube for protection;
√ High resistance of tensile strength, pressure, rodent bite;
√ Without damage by construction;
√ Ensure transmission power and avoid additional attenuation;
√ Prevent optic fiber from destroy by harsh environment;
√ Prevent optic fiber from destroy by improper operation.







More deatiles or more related products please contact us
