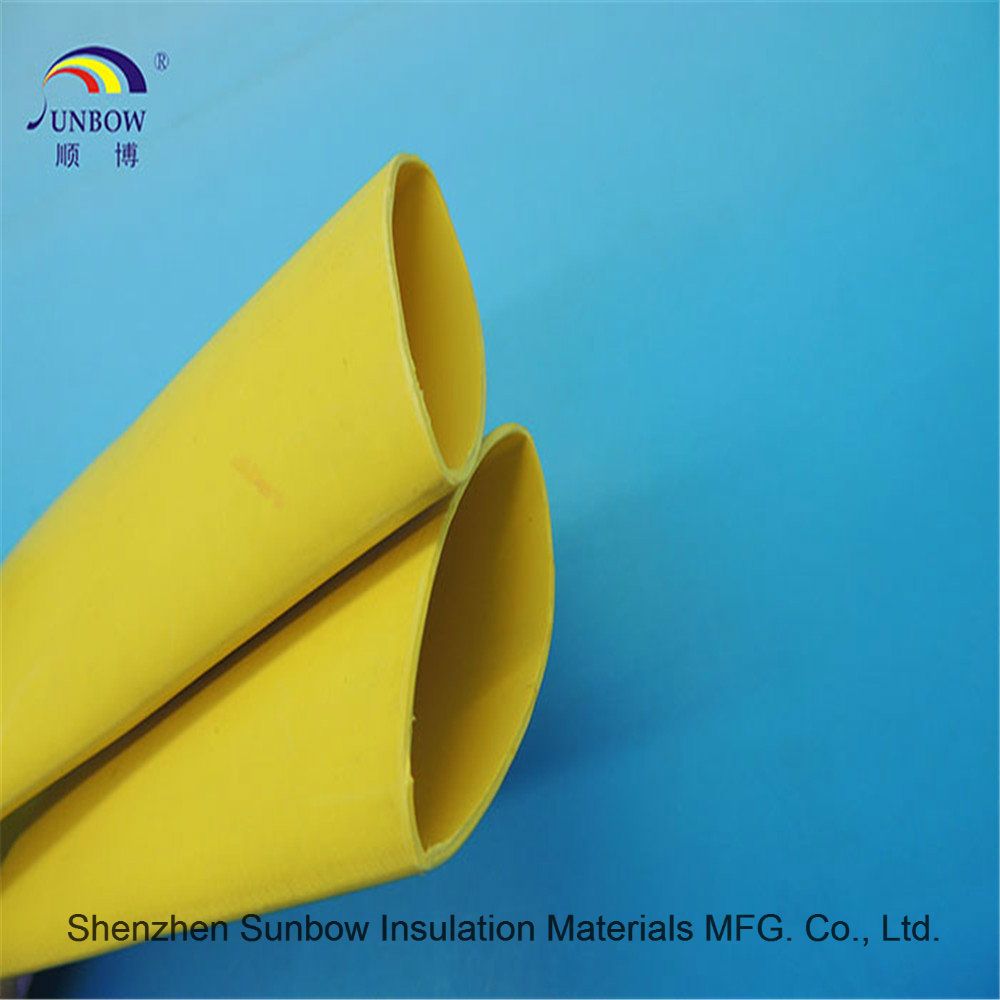

2: 1 Ratio Electrical Insulation Heat Shrinkable Tube
| Price: |
US $ 0.368-9.99/Meter |
| Min Order: |
500/Meter |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
SB-WMPG SERIES |
| Application: |
Bus Bar, Transformer |
| Type: |
Insulation Sleeve |
| Chemistry: |
Hybrid Insulation |
| Material: |
Polyolefin |
| Thermal Rating: |
-55c-125c |
| Maximum Voltage: |
1kv-35kv |
| Color: |
Red,Yellow and Green |
| Brand: |
Sunbow |
Product Description
Protection tube Bus Bar Heat Shrink Tube Adhesive Lined 1kv, 10kv and 35kv
SB-WMPG SERIES Operation temperature:-55ºC-125ºCSTRUCTUREBus-bar heat shrinkable protection tube adopts cross-linked and environment friendly polyethylene material. It restricts the hazardous substance in PBB, PBBD, PBBE and other heavy metal, and supplies high dielectric strength and voltage withstand performance. It prevents bus-bar from chemical corrosion effected by strong acid, alkali, salt etc.USAGE:Usage:Use in dielectric and mechanical protection, joints and terminals.
Application range: ElectricalCHARACTERISTICS:Shrink ratio:2:1(1kV,35kV),2.5:1(10kV)
Shrink temperature:84ºC~125ºC
Operating temperature:-55ºC~125ºC
Environmental, Flexible, flammable, and softSTANDARDa. GB/T 1059-2007
b. Environment certificate:ROHSSPECIFICATION| Property | Unit | Standard | Test method |
| Tensile strength | MPa | ≥10.4(before aging) | GB/T 1040
130ºC×168h |
| ≥7.3(after aging) |
| Elongation | % | ≥300(before aging) | GB/T 1040,GB/T7141
130ºC×168h |
| ≥100(after aging) |
| Heat shock | - | No sticking, no cracking | JB 7829appendixD.(160ºC×4h) |
| Cold blend | - | no cracking | -30ºC×4h |
| Breakdown strength | kv/mm | ≥25 | GB/T 1408.1 |
| Volume resistivity | Ω.cm | ≥1×1014 | GB/T 1410 |
| Longitudinal change | % | ≥50 | |
| Off-center | % | ≤30 | UL 224 |
| Flammability | - | ≥30 | GD/T 2406 |
| Water absorption | % | ≤0.5 | ISO 62-1980 |
| Dielectric withstand | kv/mm | ≥30kV.1min | GB/T 1408.1 |
| Shore hardness(Shore A) | | ≤90 | GB 2401 |
*This data is suitable for 10kv bus bar protection tube. When managing this test, the user must make the tube recovery evenly and make sure the max thickness>2mm, and bus-bar tubes are longer than 1200mm.
**35kV bus bar off center proportion≤50%DIMENSION| 1kV bus bar protection heat shrinkable tube |
| Specification | Bus bar width | As supplied(mm) | After recovery mm) | Standard package |
| I.D. | W.T. | I.D. | W.T. | M/Spool |
| 1kV WMPG 30 | 30 | 31.5±1.0 | 0.50±0.15 | ≤15.0 | 1.00±0.15 | 50 |
| 1kV WMPG 35 | 35 | 36.5±1.0 | 0.50±0.15 | ≤17.5 | 1.00±0.15 | 50 |
| 1kV WMPG 40 | 40 | 41.5±1.0 | 0.55±0.15 | ≤20.0 | 1.00±0.15 | 50 |
| 1kV WMPG 45 | 45 | 46.5±1.0 | 0.55±0.15 | ≤22.5 | 1.00±0.15 | 25 |
| 1kV WMPG 50 | 50 | ≥50 | 0.55±0.15 | ≤25.0 | 1.10±0.15 | 25 |
| 1kV WMPG 60 | 60 | ≥60 | 0.60±0.15 | ≤30.0 | 1.20±0.15 | 25 |
| 1kV WMPG 70 | 70 | ≥70 | 0.65±0.15 | ≤35.0 | 1.30±0.20 | 25 |
| 1kV WMPG 75* | 75 | ≥75 | 0.65±0.15 | ≤38.0 | 1.30±0.20 | 25 |
| 1kV WMPG 80 | 80/100 | ≥80 | 0.65±0.15 | ≤40.0 | 1.30±0.20 | 25 |
| 1kV WMPG 85* | 80/100 | ≥85 | 0.65±0.15 | ≤43.0 | 1.30±0.20 | 25 |
| 1kV WMPG 90 | 100 | ≥90 | 0.65±0.15 | ≤45.0 | 1.30±0.20 | 25 |
| 1kV WMPG 100 | 100/120 | ≥100 | 0.65±0.20 | ≤50.0 | 1.30±0.20 | 25 |
| 1kV WMPG 120 | 150 | ≥120 | 0.65±0.20 | ≤60.0 | 1.30±0.20 | 25 |
| 1kV WMPG 150 | 180 | ≥150 | 0.65±0.20 | ≤70.0 | 1.30±0.20 | 25 |
| 1kV WMPG 180 | MAX | ≥180 | 0.65±0.30 | ≤90.0 | 1.30±0.30 | 25 |
| 1kV WMPG 210* | MAX | ≥210 | 0.65±0.30 | ≤105.0 | 1.30±0.30 | 25 |
| 1kV WMPG 230* | MAX | ≥230 | 0.65±0.30 | ≤115.0 | 1.30±0.30 | 25 |
| 1kV WMPG 250* | MAX | ≥250 | 0.65±0.30 | ≤125.0 | 1.30±0.30 | 25 |
10kV bus bar protection heat shrinkable tube| Specification | Bus bar width | As supplied(mm) | After recovery mm) | Standard package |
| I.D. | W.T. | I.D. | W.T. | M/Spool |
| 10kV WMPG 15/6 | 15/12 | ≥15 | 1.0±0.30 | ≤6.0 | 2.5±0.20 | 25 |
| 10kV WMPG 20/8 | 20/15 | ≥20 | 1.0±0.30 | ≤8.0 | 2.5±0.20 | 25 |
| 10kV WMPG 25/10 | 25/18 | ≥25 | 1.0±0.30 | ≤10.0 | 2.5±0.20 | 25 |
| 10kV WMPG 30/12 | 30/20 | ≥30 | 1.0±0.30 | ≤12.0 | 2.5±0.20 | 25 |
| 10kV WMPG 40/16 | 40/30 | ≥40 | 1.2±0.30 | ≤16.0 | 2.8±0.30 | 25 |
| 10kV WMPG 50/20 | 50/35 | ≥50 | 1.2±0.30 | ≤20.0 | 2.8±0.30 | 25 |
| 10kV WMPG 60/24 | 60/45 | ≥60 | 1.2±0.30 | ≤24.0 | 2.8±0.30 | 25 |
| 10kV WMPG 65/26* | 65/45 | ≥65 | 1.2±0.30 | ≤26.0 | 2.8±0.30 | 25 |
| 10kV WMPG 70/28 | 70/50 | ≥70 | 1.2±0.30 | ≤28.0 | 2.8±0.30 | 25 |
| 10kV WMPG 75/30* | 75/50 | ≥75 | 1.2±0.30 | ≤30.0 | 2.8±0.30 | 25 |
| 10kV WMPG 80/32 | 80/55 | ≥80 | 1.2±0.30 | ≤32.0 | 2.8±0.30 | 25 |
| 10kV WMPG 85/34* | 80/65 | ≥85 | 1.2±0.30 | ≤34.0 | 2.8±0.30 | 25 |
| 10kV WMPG 100/40 | 100/75 | ≥100 | 1.2±0.30 | ≤40.0 | 2.8±0.30 | 25 |
| 10kV WMPG 120/48 | 120/85 | ≥120 | 1.2±0.30 | ≤48.0 | 2.8±0.30 | 25 |
| 10kV WMPG 150/60 | 150/105 | ≥150 | 1.2±0.30 | ≤60.0 | 2.8±0.30 | 25 |
| 10kV WMPG 180/72 | 180/120 | ≥180 | 1.2±0.30 | ≤72.0 | 2.8±0.30 | 25 |
| 10kV WMPG 210/84* | 210/140 | ≥210 | 1.2±0.40 | ≤84.0 | 2.8±0.30 | 25 |
| 10kV WMPG 230/92* | 230/150 | ≥230 | 1.2±0.40 | ≤92.0 | 2.8±0.30 | 25 |
| 10kV WMPG 250/100* | 250/160 | ≥250 | 1.2±0.40 | ≤100.0 | 2.8±0.30 | 25 |
35 kV bus bar protection heat shrinkable tube| Specification | Bus bar width | As supplied(mm) | After recovery mm) | Standard package |
| I.D. | W.T. | I.D. | W.T. | M/Spool |
| 35kV WMPG 30/15 | 30 | ≥30 | 2.0±0.60 | ≤15.0 | 4.0±0.30 | 15 |
| 35kV WMPG 35/18 | 30/40 | ≥35 | 2.0±0.60 | ≤17.5 | 4.0±0.30 | 15 |
| 35kV WMPG 40/20 | 40 | ≥40 | 2.0±0.60 | ≤20.0 | 4.0±0.30 | 15 |
| 35kV WMPG 50/25 | 50 | ≥50 | 2.0±0.60 | ≤25.0 | 4.0±0.30 | 15 |
| 35kV WMPG 60/30 | 60 | ≥60 | 2.0±0.60 | ≤30.0 | 4.0±0.30 | 15 |
| 35kV WMPG 65/33* | 60/70 | ≥65 | 2.0±0.60 | ≤32.5 | 4.0±0.30 | 15 |
| 35kV WMPG 70/35 | 70 | ≥70 | 2.0±0.60 | ≤35.0 | 4.0±0.30 | 15 |
| 35kV WMPG 75/38* | 70/80 | ≥75 | 2.0±0.60 | ≤37.5 | 4.0±0.30 | 15 |
| 35kV WMPG 80/40 | 80/100 | ≥80 | 2.0±0.60 | ≤40.0 | 4.0±0.30 | 15 |
| 35kV WMPG 100/50 | 100/120 | ≥100 | 2.0±0.60 | ≤50.0 | 4.0±0.30 | 15 |
| 35kV WMPG 120/60 | 150 | ≥120 | 2.0±0.60 | ≤60.0 | 4.0±0.30 | 15 |
| 35kV WMPG 150/75 | 180 | ≥150 | 2.0±0.70 | ≤75.0 | 4.0±0.30 | 15 |
| 35kV WMPG 180/90* | MAX | ≥180 | 2.0±0.70 | ≤90.0 | 4.0±0.30 | 15 |
| 35kV WMPG 210/105* | MAX | ≥210 | 2.0±0.70 | ≤105.0 | 4.0±0.30 | 15 |
| 35kV WMPG 230/115* | MAX | ≥230 | 2.0±0.70 | ≤115.0 | 4.0±0.30 | 15 |
| 35kV WMPG 250/115* | MAX | ≥250 | 2.0±0.70 | ≤125.0 | 4.0±0.30 | 15 |
Remarks: There is no storage if the item is marked *. It should be specially customized.
|
