2-12 Cores Cable Non-Armored Unitubesm G652D Optical Fiber

2-12 Cores Cable Non-Armored Unitubesm G652D Optical Fiber
Price: US $ 0.12-0.3/Meter
Min Order: 2000/Meter
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: GYFXY
Fiber Type: G652D
Fiber Count: 2-24cores
Fiber Selection: Singlemode or Multimode
Strength Member: FRP
Applicate: Aerial/Duct
Installation Temperature: -40~+70
Application: Communication
Type: Single-mode Fiber
Connection Structure: SC
Certification: ISO9001
Brand: Yueyou
Sheath Material: HDPE Sheath

Product Description

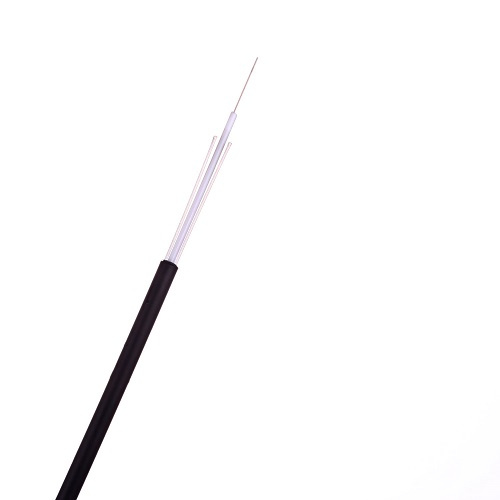

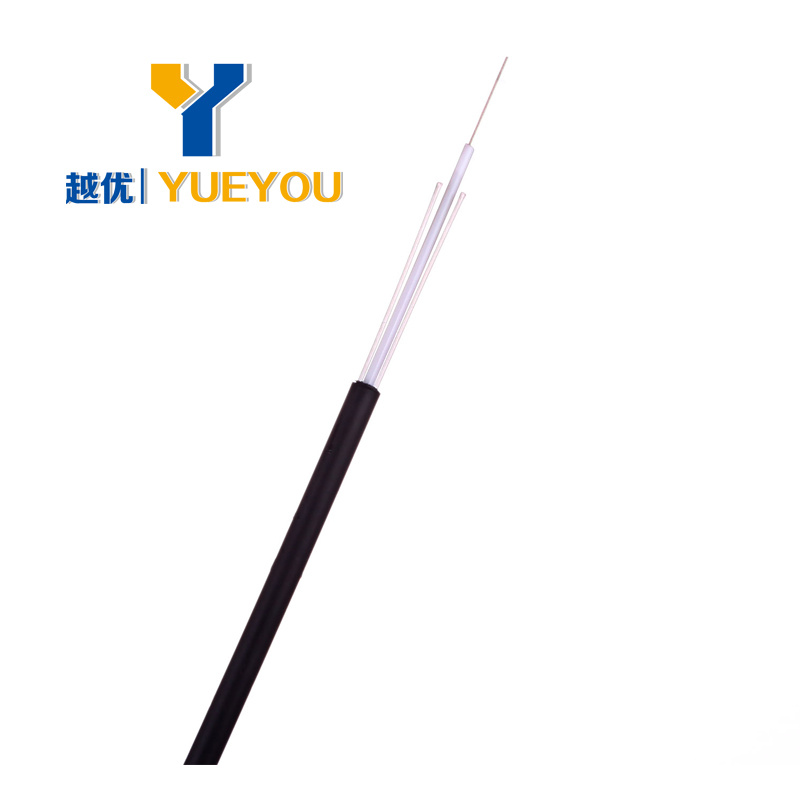

   2-12 Cores Cable Non-Armored UnitubeSM G652D  Optical Fiber


Description:

The fiber are positioned in a loose tube made of high modulus plastic,PBT loose tube are filled with
water-resistance filling compound,Two parallel FRP strength member (Fiber Reinforced Plastic).
Outer sheath is made of UV resistance PE jacket.





Features:

Fiber count: 2-24 Fibers in Gel filled loose tube.

Fiber selection: Single mode or Multimode.

Strength member: 0.8mm or 1.0mm steel wire.

Gel filled loose tubes for a critical protection of fiber.

Small diameter, Light, easy installation.

Sheath materials suit a variety of installation environments, UV and moisture resistance design.

IEC 60794-1 standard.


Application:

Aerial, conduit, duct.


Fiber Characteristics:

Fiber G.652DG.65550/125um62.5/125um
Attenuation(+20ºC)@850nm  ≤3.0dB/km≤3.3dB/km
@1300nm  ≤1.0dB/km≤1.0dB/km
@1310nm≤0.36dB/km≤0.40dB/km
@1550nm≤0.22dB/km≤0.23dB/km
Bandwidth@850nm  ≥500MHz.km≥200MHz.km
@1300nm  ≥500MHz.km≥500MHz.km


Physical characteristics and mechanical performance:

Fiber countCable diameter(mm)Cable Weight(kg/km)Allowable Tensile Load
(N)
Allowable Crush resistance
(N/100mm)
Dynamic and Static Bend
(mm)
Installation Temperature Range(ºC)
2-126.2±0.245±10600/2501000/50020D/10D-40~+70
14-247.0±0.260±10800/3001000/50020D/10D
