2.16mm Centronic Connector with Ribbon Receptacle Type

Name: 2.16mm Centronic Connector with Ribbon Receptacle Type
Brand: all-electronics-online.com
SKU: 744662805
Availability: InStock
Rating: 4.5 (109 reviews)

Price:	US $ 0.78/Piece
Trade Terms:	FOB,EXW
Min Order:	500/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	57CI-FXXXXX01
Markets:	North America,South America,Eastern Europe,Africa,Mid East,Eastern Asia,Western Europe
Application:	UHF
Gender:	Male

Product Description

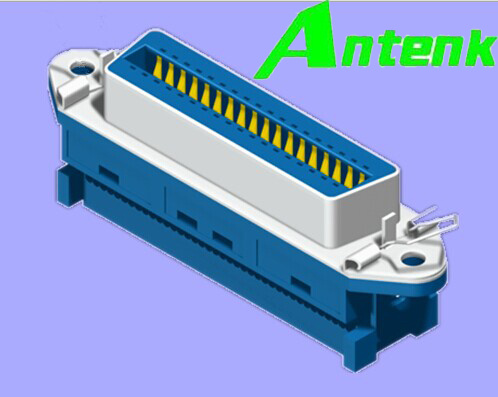

Ribbon Receptacle Type of 2.16mm Centronic Connector

Features:
Contact positions: 14, 24, 36 to 50
Available in plug and receptacle styles
Terminal option with push lock type
Equipped with spring latches for secure locking
Metal shell provides grounding and shielding capability
Mates with industry compatible connectors
Materials:
Contacts: phosphor bronze
Housing: PBT (UL 94V-0)
Shell: cold roller steel
Electrical characteristics:
Current rating: 5A
Withstanding voltage: AC 1,200Vrms
Insulation resistance: 1,000 MΩ minimum at 500V DC
Contact resistance: 30 mΩ maximum
Operation temperatures: -55 to +105°C
Mechanical characteristics:
Contact resistance force: 322g maximum
Contact seperation force: 70g minimum
Finishes:
contact: gold flash, 10, 15, 30 to 50 micro inches
Shell: tin
