| Prod Model: |
2.2KW VFD |
| Name: |
Variable Frequency Drive |
| Application: |
General Transducer |
| Output Type: |
Single |
| Main Circuit Type: |
Voltage |
Product Description

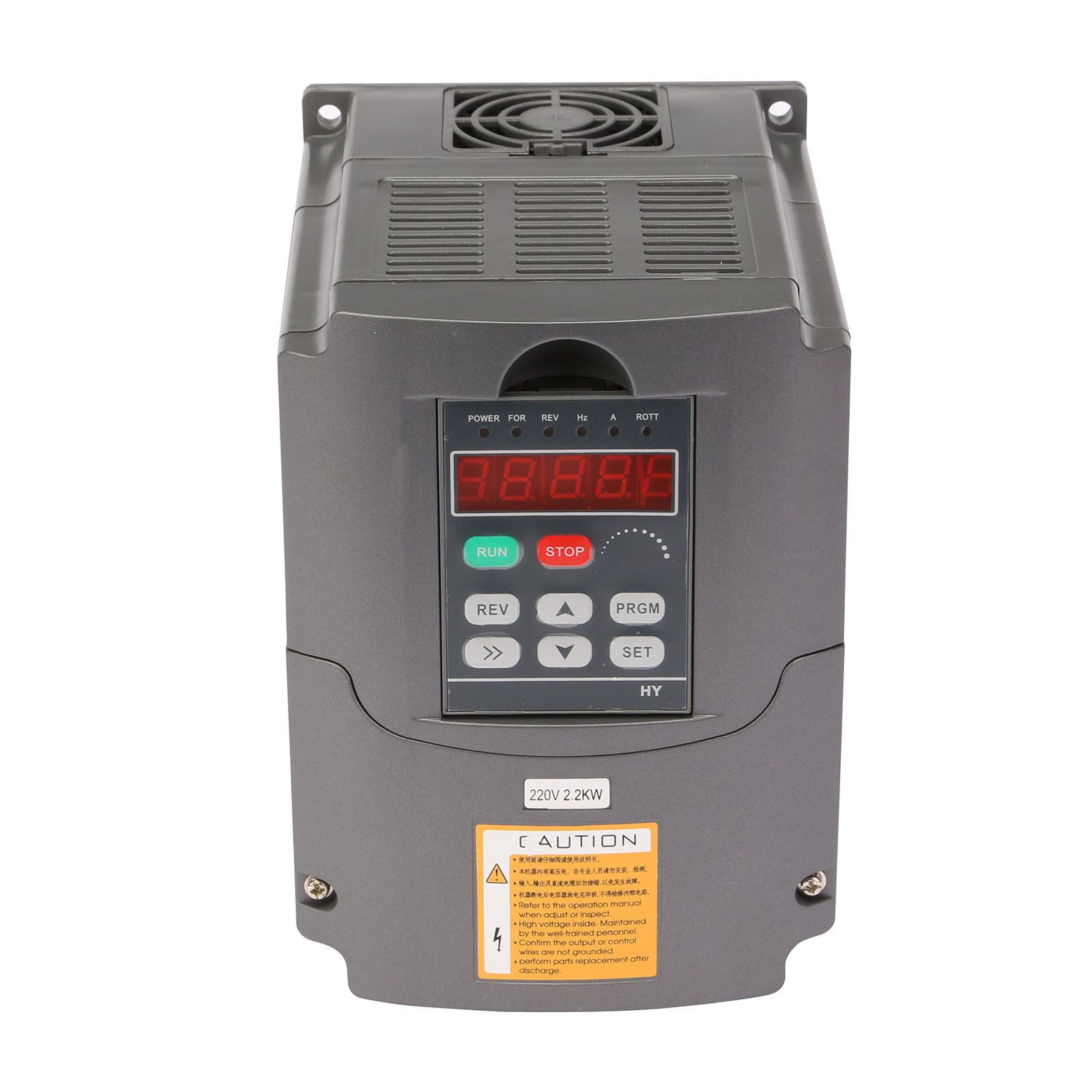

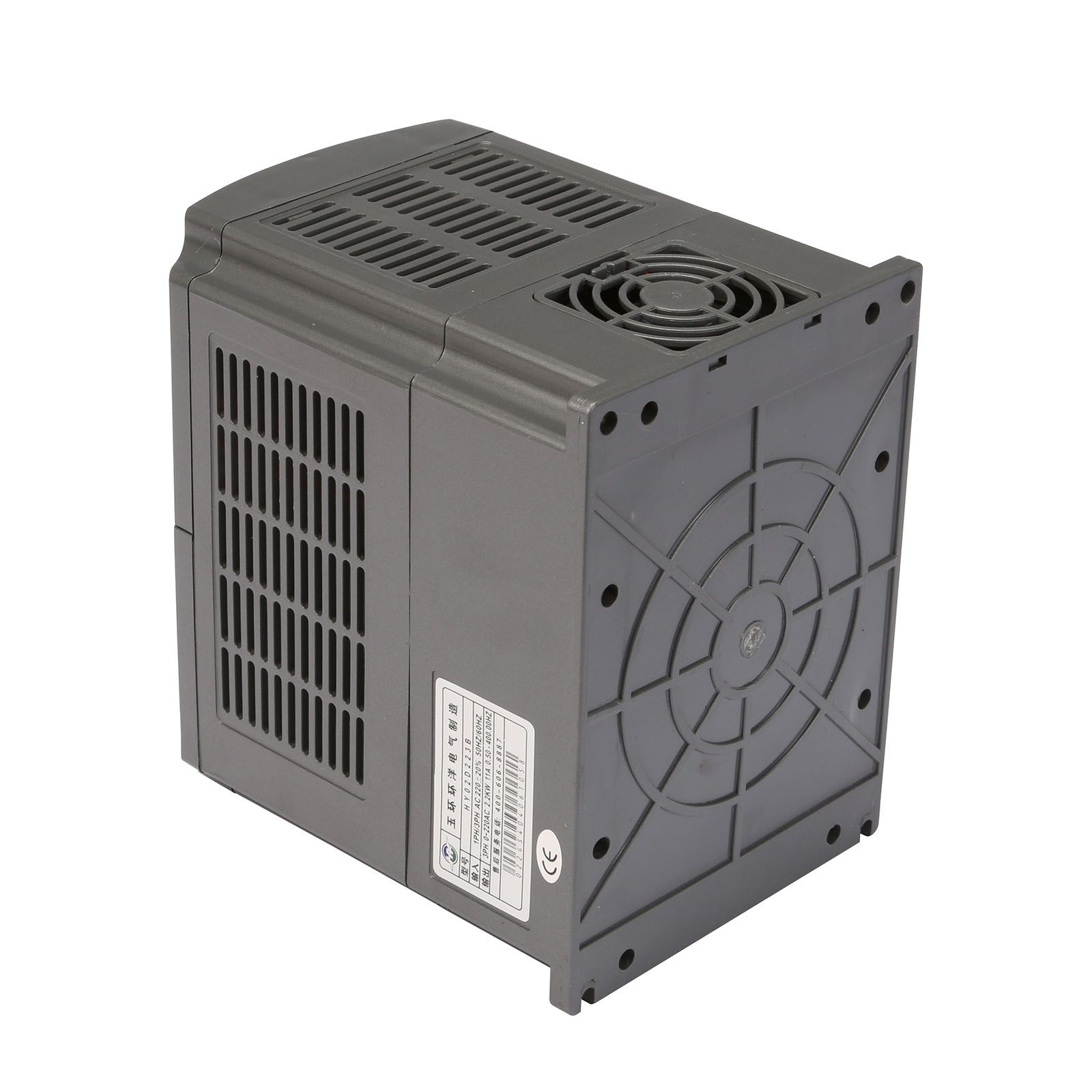

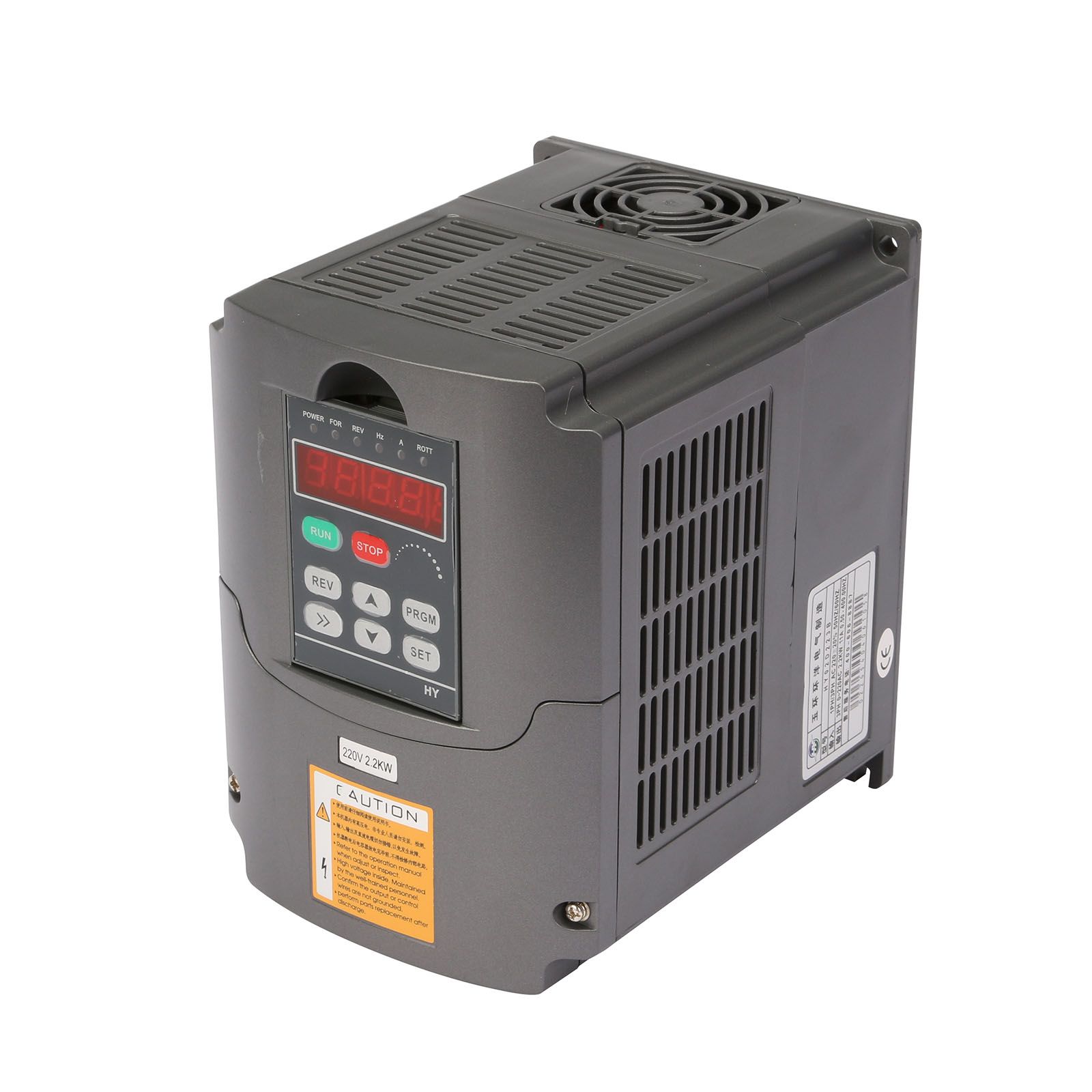

2.2KW 220V VARIABLE FREQUENCY DRIVE INVERTER VFD 3HP 10A
Introduction
This VFD can be used for constant torque loads ( such as hard starting: Air compressors, HVAC units) and variable torque loads (such as pumps, fans, etc). It can be used as a motor speed control and a phase converter. The inpute for this VFD is 1 or 3 phase as you like. You can control the different speed as you like when yo use this VFD. Many customer bought this VFD from us to use for: Lathes, Mills, Car Hoists, Pumps & Conveyors, etc and then performance excellently. This item use Sine wave PWN(SPWM ) for the control system and performace excellently.
How To Install This VFD

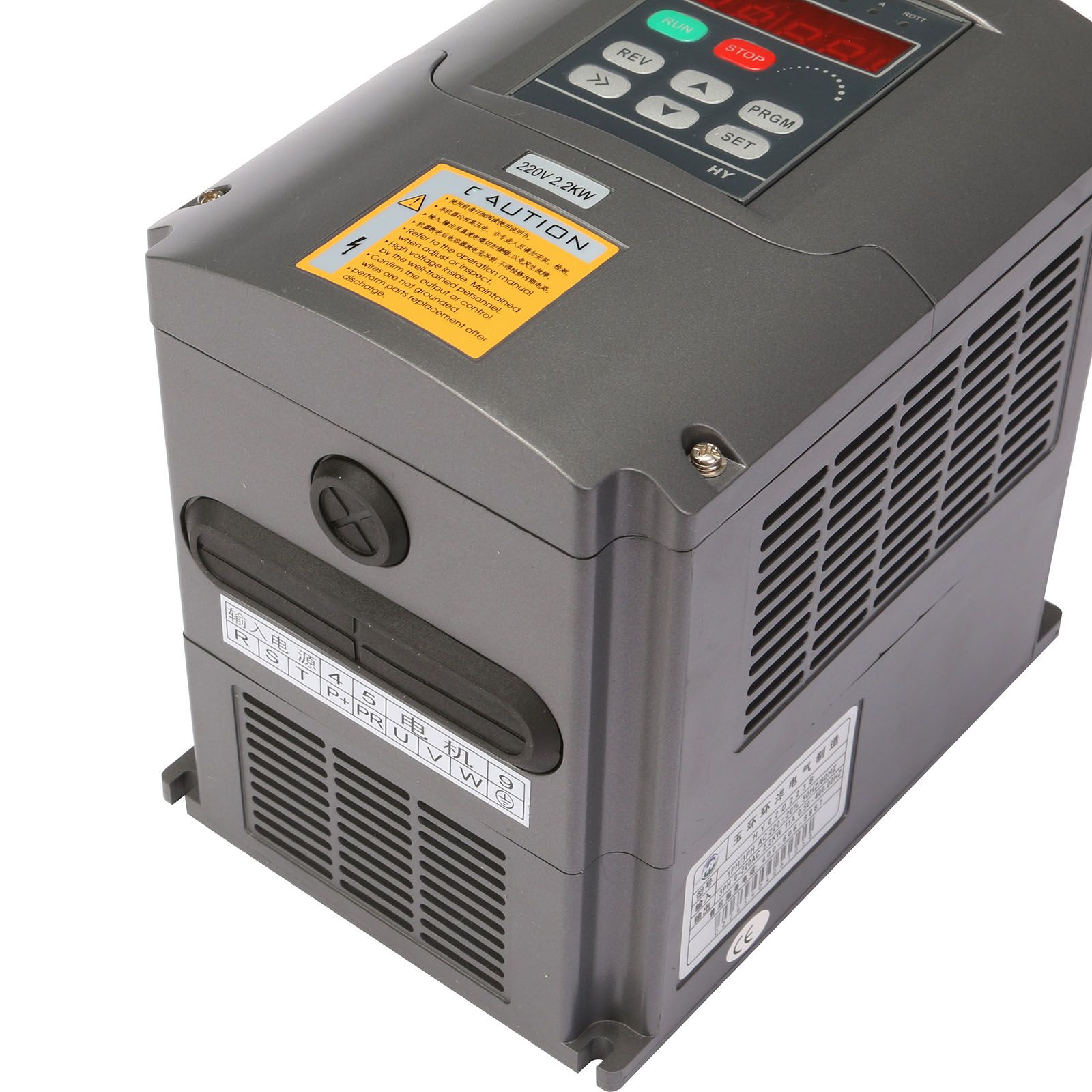

Symbol:Function Description
R.S.T:Input terminal of AC line power.(220V class for both single phase, single phase connected to any two phases)
U.V.W:Output terminal of the inverter
P+.PR:Connector for braking resistor.
E:Ground terminal: the third method of grounding for 220V and special grounding for 380 V of Electrical Engineering Regulations.
- Our item adopts the Japan Mitsubish chip
- PID control; advanced calculous PID closed-loop arithmetic, quick responding speed and high suitability;
- Easy PLC function can realize 16 legs of speed and inverter control function;
- With extremely strong anti-jamming capability;
- Low output ratting torque0.5HZ-150%, low speed running ability;
- Carrier adjustable by 16KHZ, completely soundless working environment;
- Broad voltage working area
- Auto voltage regulation (AVR) technique, for ensuring the inverter load capability;
- Various control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing brakes;
- With perfect error protection and short circuit starting protection capability;
- ISO9001 quality certifications which means this item is the top quanlity item;
- Inpute Voltage: 220V(We also stock 380V, please contact us for item stock)
- Output Voltage: 208-240VAC ( analogous to Input Voltage )
- Inpute Frequency: 48-63 Hz
- Outpute Frequency: 0-400 Hz
- Inpute Phase: 1 or 3 phase as you like
- Outpute Phase: 3 phase
- Item Manufactuer: From a well-known manufacture who manufacture VFD for more than 12 years.
- Warranty: 1 year
- Control Mode:SPWM
- Input Power:220V class:220±15%(we also stock 380V item, please contact us for stock)
- 5-Digits Display & Status Indicator Lamp:Displaying frequency, current, revolution, voltage, counter, temperature, FOR or REV rotation, and fault, etc.
- Working Temperature:-10~40ºC
- Humidity:0-95% Relative Humidity(without dew)
- Vibration:Below 0.5G
- Dimension:22 x 18 x 21 cm (L x W x H)
1*2.2KW Variable Frequency Drive Inverter
1*English Manual
