2.2kw High Quality Electric Crane Geared Motor with Buffer (BM-300)

Name: 2.2kw High Quality Electric Crane Geared Motor with Buffer (BM-300)
Brand: all-electronics-online.com
SKU: 816026435
Availability: InStock
Rating: 4.9 (130 reviews)

Price:	US $ 92-390/Piece
Min Order:	1/Piece
Pay Type:	L/C

Contact Supplier

Showroom Product Company Profile

Prod Model:	BM-300
Power:	2.2kw/1.5kw
Poles:	4p/6p
Output Module:	M5 or M6
Gear Ratio:	16:1
Speed:	92/110r/Min
Frequency:	50/60Hz
With Buffer:	Yes
Application:	Industrial
Operating Speed:	Constant Speed
Number Of Stator:	Three-Phase
Species:	YS Series Three-Phase
Rotor Structure:	Squirrel-Cage
Casing Protection:	Protection Type
Starting Mode:	Variable Frequency Starting
Number Of Poles:	4p/6p
Certification:	Ce
Brand:	Brima

Product Description

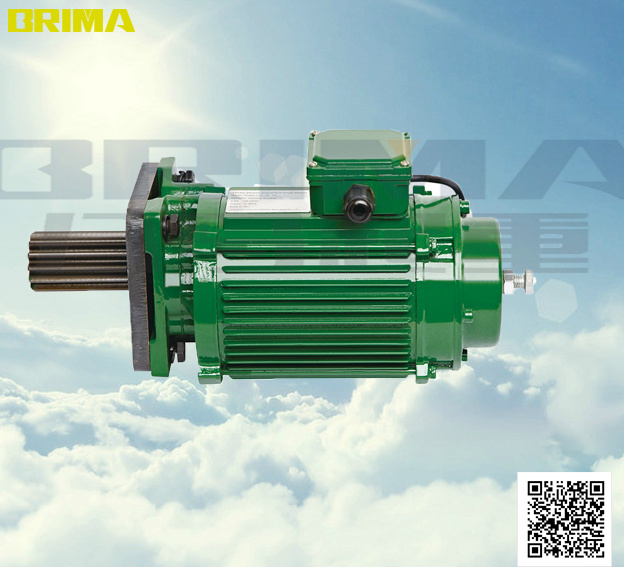

2.2kw High Quality Electric Crane Geared Motor with buffer(BM-300)

Jiangsu Brima Hoisting Machinery Manufacturing Co.,Ltd is located in Kuhshan city,which is a professional manufacturer of lifting equipment,specilized in the production of electric chain hoist,wire rope hoist,crane geared motor,end carriage,DRS wheel block,and other crane accessories.

Instructions for our crane geared motor:

Speed reducer shell adopts good material: Cast Iron manufacturing,with high precision CNC Iathe machning,gear made of alloy steel material,vacuum carburzing treatment,transmission pumping after careful calibration and abrasive,impact resistance,high safety factor of 5 times or more.

Buffer:the use of flywheel cushion motor produced our of shape,high inertia,start and brake are so smooth,not heavy shanking.

Motor:easy to heat,high pressure,low noise,high performance,high torque,small current,small volume,strong output power,high frequency can be used.

Electromagnetic brake:brake force,bolt directly adjust the braking force,brake pads with high wear resistance,long service life,high safety.

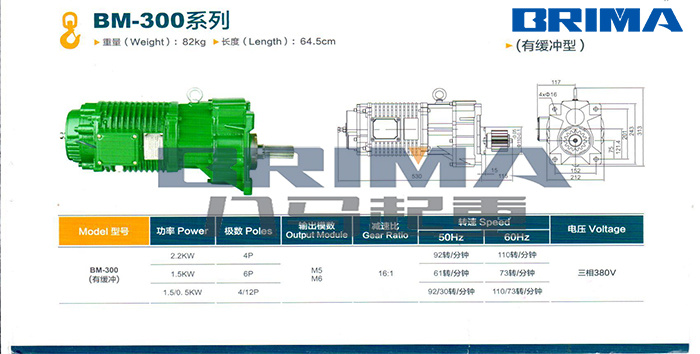

Specifications for crane geared motor:

BRIMA is a collection of hoisting & Crane research and development, design and manufacturing, sales and service as one of the emerging heavy industry enterprises for 20 years in England (BRIMA HOIST & CRANE Ltd ), Manufacturing plant are in China ( JIANGSU BRIMA HOISTING MACHINERY MANUFACTURING Co., Ltd )

On 2017, BRIMA acquired HANBLE( USA) company, who will mainly design and manufacture European crane kits ( Intelligent hoist, European wheel block, Robots and so on ) www.hanble.com or www.hanble.us

BRIMA inherits German advanced product design concept, perfect technological process and strict quality management and is committed to providing the products with first-class quality, leading performance and higher cost performance...The Company's products mainly include BMS European electric chain hoist, BMG European electric chain hoist, BM Japan type electric chain hoist, Crane gear motor, wheel block, Reducer, European wheel block, End carriage, Aluminium portable gantry crane, Jib crane, Single & Double girder crane, KBK, Rigid light crane. etc. BRIMA put advanced design and application concepts into practice, providing customers with lifting equipment with light self-weight, low headroom, safety and reliability, excellent performance, and efficiency.

Each year, BRIMA invests a large number of resources into the research and development of products so as to lead the market trend by technical innovation, to obtain customer's trust through the pursuit of quality, and consequently, to keep its products in the lead. BRIMA is committed to manufacturing electric hoists, light duty cranes and crane parts with the lifting capacity ranging from 125kg to 80t, which can meet customer requirements for a variety of operating conditions, providing customers with optimum solutions. The Company has established long-term cooperative relationship with China's & Oversea`s major crane factories from various aspects including technical solutions, technical exchange and product delivery and etc., enabling the Company to provide customers with one-stop service finally.

BRIMA all goods: Widely applied in equipment manufacturing industry, automobile industry, transportation and logistics, energy industry, metallurgy, shipping, and etc
