| Prod Model: |
BV-450/750×1.5 |
| Wire Color: |
as Per Customer′s Requirement |
| Wire Packing: |
PP+Carton |
| Shape: |
Round Wire |
| Electrical Wire Type: |
Fire Flame Retardant |
| Electrical Wire Conductor: |
Copper |
| Electrcial Wire Shealth Material: |
PVC |
| Cable Standard: |
IEC60332 |
| Cable Packing: |
Plastic Reel |
| Cable Sectional Area: |
1.5mm2-16mm2 |
| Type: |
Insulated |
| Conductor Type: |
Solid |
| Application: |
Underground |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
CCC |
| Brand: |
Upward |

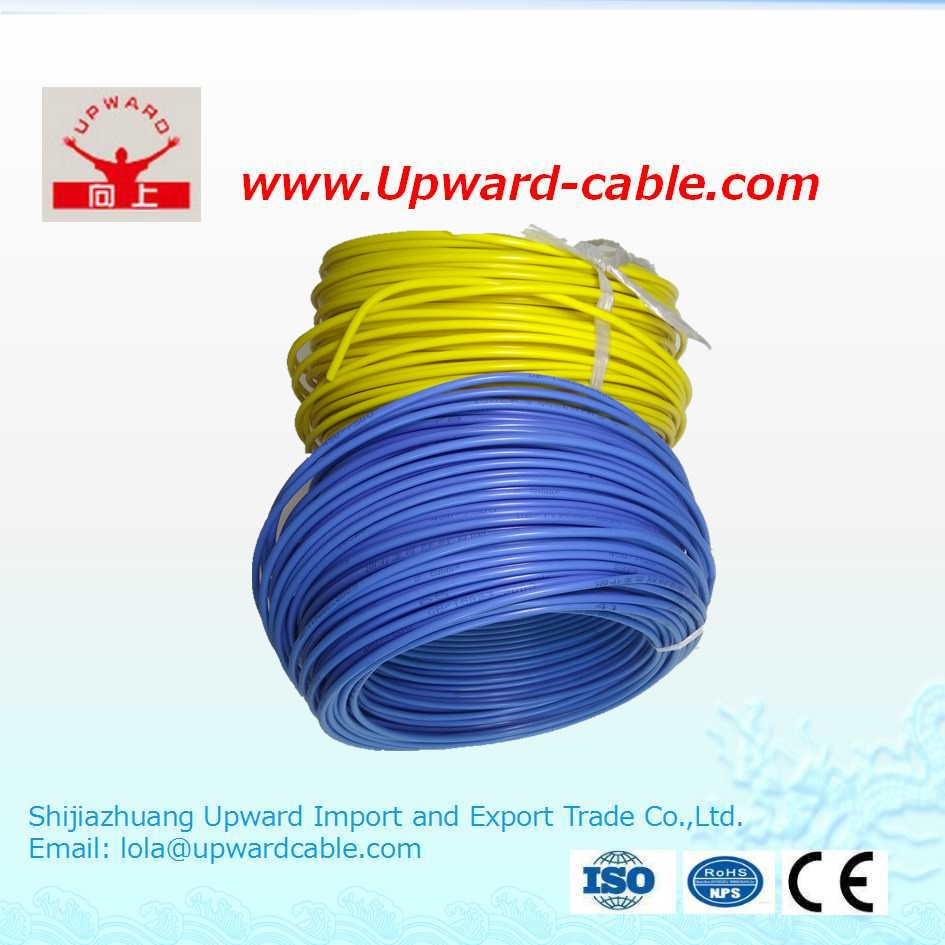

Product Description
Feature of electrical wire1. Electircal Wire Price Unit: Meter
2. PVC Insulated and sheath
Parameter of electrical wire1. Electrical wire Voltage Uo/U 450/750V
2. Electrical wire Long-time working temperature should be lower than 70°C (Can be 90°C or 105°C),
should not be lower than 0°C.
3. Electrical wire Minimum bending radius: minimum bending diameter is two times of cable diameter while test binding
Specification of Electrical wireElectrical Wire Type: Pure Copper Conductor , Single Core CU/PVC Electric Wire
Electrical Wire Strandard: IEC60332, GB/T5023-2008 JB8734-1998
Electrical Wire Voltage: 300/500V 450/750V
Electrical Wire Specification: Single Core 13-15AWG etc
Packing of electrical wire Length: 100M 500M 1000M
| Type | Cross Section(mm2) | Conductor Size(No. of Cores/Diameter) | Rated Voltage | Nominal Insulation Thickness(mm) | Reference Weight(kg/km) | Application |
| Solid Type | 0.5 | 1/0.80 | 300/500V
450/750V | 0.6 | 8.0 | Solid, Hard,Suitable for fixed installation |
| 0.75 | 1/0.97 | 0.6 | 11.4 |
| 1 | 1/1.13 | 0.6 | 15.2 |
| 1.5 | 1/1.38 | 0.7 | 21 |
| 2.5 | 1/1.78 | 0.7 | 32 |
| 4 | 1/2.25 | 0.8 | 47 |
| 6 | 1/2.76 | 0.8 | 67 |
| Stranded Type | 1.5 | 7/0.52 | 0.7 | 22 | Stranded, Flexible house wiring, Suitable for indoor applicant. |
| 2.5 | 7/0.68 | 0.7 | 35 |
| 2.5 | 19/0.40 | 0.8 | 34 |
| 4 | 7/0.85 | 0.8 | 50 |
| 4 | 19/0.52 | 0.8 | 51 |
| 6 | 7/1.04 | 0.8 | 71 |
| 6 | 19/0.64 | 0.8 | 72 |
| 10 | 7/1.35 | 1.0 | 118 |
| 10 | 49/0.52 | 1.0 | 127 |
| 16 | 7/1.70 | 1.0 | 177 |
| 16 | 49/0.64 | 1.0 | 184 |
| Flexible Type | 1.5 | 30/0.25 | 0.7 | 22 | Ultra Flexible, Soft Conductor, Suitable for small power equipment instrument. |
| 2.5 | 49/0.25 | 0.8 | 34 |
| 4 | 56/0.30 | 0.8 | 49 |
| 6 | 84/0.30 | 0.8 | 70 |
| 10 | 77/0.40 | 1.0 | 117 |
| 16 | 119/0.40 | 1.0 | 168 |
| 25 | 189/0.40 | 1.2 | 265 |
| ... | | | |
The electrical wire can be of flame retardance, fire resistance, environment friendly or other property. OEM Available. Single Core 13-15AWG electrical Wires is suitable for use in power installations, fixed wiring or flexible connections for electrical appliances like lighting, electronic equipment, instrument and communication equipment with rated voltage 450/750V or less.
| Model | Name | Laying place and requirement | working temperature |
227IEC01/05
BV
BLV | Copper conductor PVC insulated wires | Fixed laid indoors,conduits etc. | 70 |
Aluminum Conductor PVC
insulated wires |
227IEC07
BV-90 | Heat resistant copper conductor PVC insulated wires at 90 | Mainly be laid at the places of high temperature environment and can be laid indoors,conduits. | 90 |
| BVR | Copper conductor PVC
insulated flexible wire | Be for laying permanent place where flexible required | 70 |
227IEC10
BV | Copper conductor PVC insulated
PVC sheathed round wires | Fixed laid,fit for the places with high mechanical protection and moisture place.Can be laid in the air or underground. | 70 |
| BLV | Aluminum conductor PVC insulated PVC sheathed round wires |
| BVB | Copper conductor PVC insulated PVC Sheathed flat wires |
| BLVB | Aluminum conductor PVC insulated sheathed flat wires |
227IEC02RV
227IEC06RV | Copper conductor PVC insulated flexible connector | Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required. | 70 |
227IECC42
RVB | Copper conductor PVC insulated flat flexible connector |
| RVS | Copper conductor PVC insulated flexible twisting connector wire |
227IEC53
RW | Copper conductor PVC insulated PVC sheathed round flexible connector(light and common type) |

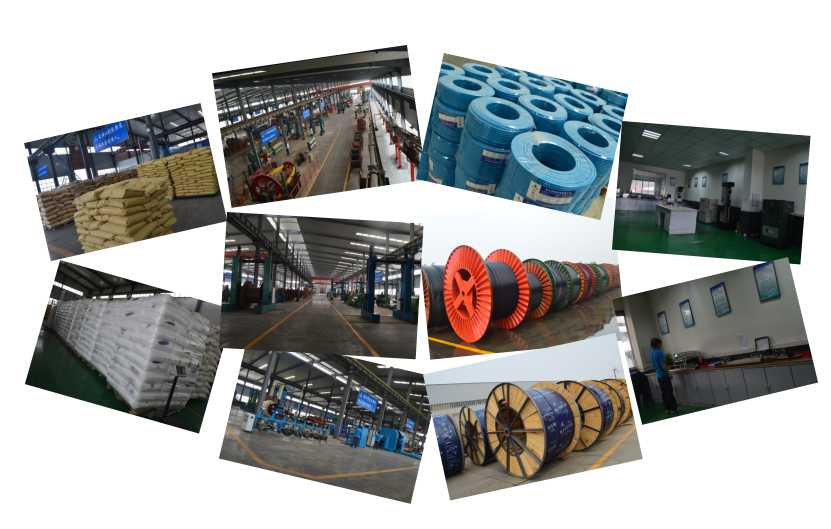

Our factory
Upward Cable specializes in design and manufacture of various kinds of wires and cables. The main products are low voltage cable, high voltage cable, power cable, aluminum alloy cable, fire flame retardant cable, fire resistant cable and high temperature cable.
The workshop area is 260000 sq. M. There are 430 staff members in the factory, including 20 experienced engineers, 38 lab assistants and 372 workers. The capital asset reached USD30, 000, 000. We have various advance product lines and equipment, including 125 sets for producing use and 35 sets for testing and measurement use. Our product can perfectly meet requests of different standards, for example GB, IEC, BS and ASTM. We could offer OEM and ODM service for the special cutomer. The annual product capacity of cables and wires is more than 20, 000, 000 kilometers.
As one of the leading manufacturers of cable industry in Hebei Province, we obtained certificate of ISO9001 in 2003. All cables of colliery have gotten the certificate of safety for colliery. Our fire retardant cables are approved with the certification of proof products, and most of them met the standards of China Compulsory Certification (CCC). Moreover, we have been already licensed to enter the "Supplier of the China Government Procurement" by the government.
For years, we are keeping providing products with high quality and good service. Our cables and wires are widely used in the construction of buildings airports, power transportation, urban and rural power network reformation and other main projects. Both of products and the factory are greatly commended by customers. Also, we really highly value the overseas market. Our factory has the qualification to export independently which is awarded by Chinese government. The main products of our company have been exported to Africa, Australia, America, Italy, Singapore and other Asian countries.
