2/4/6 Poles High Efficiency Three Phase Y2 Series Induction Motor

2/4/6 Poles High Efficiency Three Phase Y2 Series Induction Motor
Price: US $ 20-100/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T,D/P,Western Union
Prod Model: Y 2
Base Center Height: 63-315mm
Power Range: 0.12-110kw
Nsulation Class: B or F
Protection Class: IP54 (or IP55)
Work System: S1
Casing: Iron/Aluminum
Number Of Stator: Three-Phase
Function: Control
Brand: Chimp / OEM

Product Description

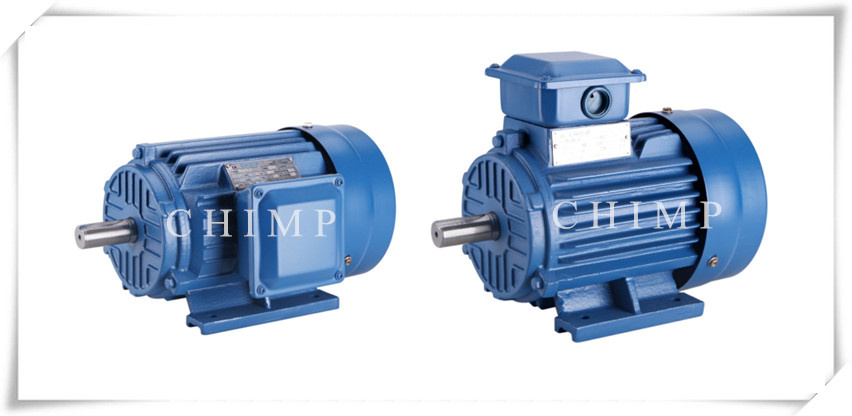

CHIMP 3 phase ac induction fan electric motor


Y2 series motor is the improvement products from Y series motor. Its performance have reach to international IEC standards.It has novel structure,beautitul modeling fang,small vibration and low noise feature.

Rated Parameters:

Base Center Height:63-315mm                             Power Range: 0.12-110 kW
Nsulation Class: B or F                                    Protection Class: IP54 (or IP55)
Work System: S1

Mounting Structure:
B3 Frame without foot cover end flange
B35 Frame with foot cover end flange
B5 Frame with foot cover end flange



ModelRated PowerFull Loadlocked-rotor current Rated Current  Ist/Tnlocked-rotor Torque  Rated Torque   Tst/TnMaximum Torque  Rated Torque  Tst/Tn
Speed   r/minCurrent        APerformance  %Efficiency Factor  COSΦ
Synchronous Speed 1500 r/min (4 Poles)
Y2-712-40.3713301.12670.755.22.42.2
Y2-801-40.5513901.57710.755.22.32.3
Y2-802-40.7513902.03730.766.02.42.3
Y2-90S-41.114002.89750.776.02.32.3
Y2-90L-41.514003.70780.796.02.32.3
Y2-100L1-42.214305.16800.817.02.32.3
Y2-100L2-43.014306.78820.827.02.32.3
Y2-112M-44.014408.80840.827.02.32.3
Y2-132S-45.5144011.7850.837.02.32.3
Y2-132M-47.5144015.6870.847.02.32.3
Y2-160M-411146022.3880.847.02.22.3
Y2-160L-415146030.1890.857.52.22.3
Y2-180M-418.5147036.590.50.867.52.22.3
Y2-180L-422147043.2910.867.52.02.3
Y2-200L-430147057.6920.867.22.02.3
Y2-225S-437148069.992.50.877.22.02.3
Y2-225M-445148084.792.80.877.22.02.3
Y2-250M-4551480103930.877.22.02.3
Y2-280S-475148014093.80.877.22.02.3
Y2-280M-490149016794.20.877.22.02.3
Y2-315S-4110149020194.50.886.92.12.2





CHIMP PUMP  is established in 1998 ,with about 20 years experience and start exporting at 2002. Now we have more than 300 workers
Our present market is Saudi Arabia, Dubai, Russia, Belarus, America, Iran, Ukraine,  Egypt,  Malaysia, Bangladesh, Turkey ,  Ghana, Vietnam and so on.





FAQ
Q: What is your MOQ of this item?
A: Our MOQ is a full 20ft container. However, we accept the small qty for trial order to check quality.

Q: Is it acceptable to make customers' own brand?
A: Yes, sure. OEM is also our service scope.

Q: What are your payment terms?
A: 30% T/T as deposit, 70% against documents, or L/C at sight.

Q: How long is your warranty?
A: One year!


Q: What is the delivery time?
A: 25-30 days after receiving your L/C or T/T deposit.

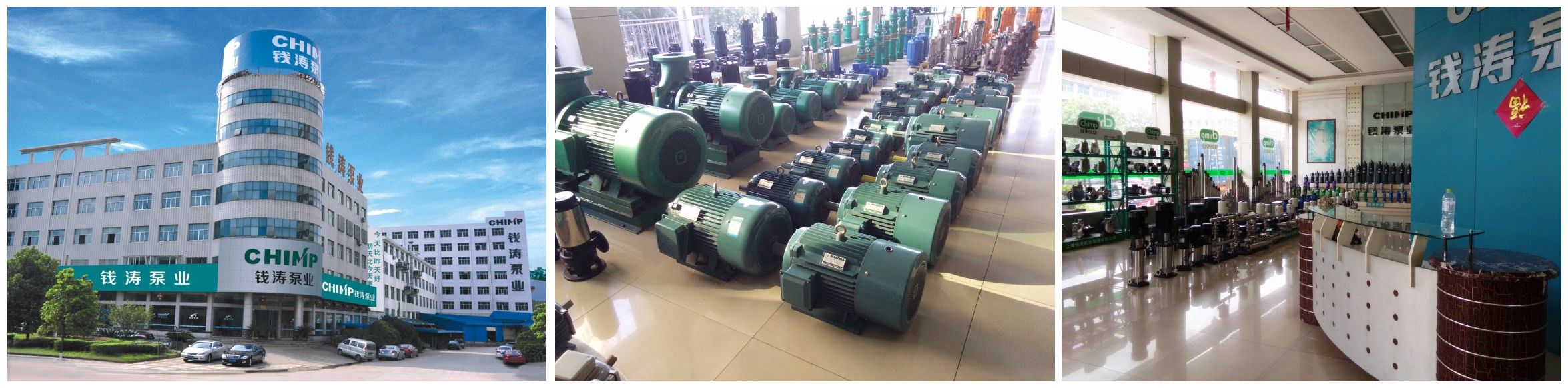

Taizhou Qiantao Pumps Co., Ltd. is a modern enterprise with a combination of development, production, service. It is specialized in producing electric pump and motor with more than 50 series and 1000 specifications.
