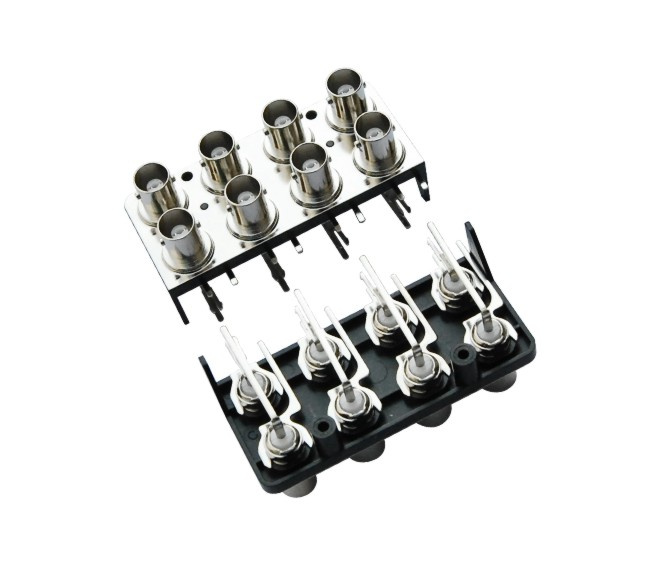

2 4 8 Port BNC Connectors Right Angle BNC 8 Pins Jack Socket Connector

Name: 2 4 8 Port BNC Connectors Right Angle BNC 8 Pins Jack Socket Connector
Brand: all-electronics-online.com
SKU: 720704845
Availability: InStock
Rating: 4.8 (51 reviews)

Price:	US $ 0.88/Piece
Trade Terms:	FOB
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	RH-PORT
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
34*13mm:	34*11mm
Type:	PCB Coaxial Connector
Coupling Mechanism:	Clamping Type
Brand:	Dosin

Product Description

Specifications

As a major enterprise of RF products in China, our company manufactures a full range of RF connectors and cable assembly.

Contact:

MOBIL: 13925799591

As a major enterprise of RF products in China, our company manufactures a full range

Of products, including:

1) MMCX RF coaxial connectors

2) MCX RF coaxial connectors

3) SMA RF coaxial connectors

4) SMB RF coaxial connectors

5) SMC RF coaxial connectors

6) SSMA RF coaxial connectors

7) SSMB RF coaxial connectors

8) SSMC RF coaxial connectors

9) TNC RF coaxial connectors

10) BNC RF coaxial connectors

11) N RF coaxial connectors

12) 7/16 (L29) RF coaxial connectors

13) 1.6/5.6 (L9) RF coaxial connectors

14) F RF coaxial connectors

15) 1.0/2.3 (CC4) RF coaxial connectors

16) UHF RF coaxial connectors

17) MINI UHF RF coaxial connectors

18) FME RF coaxial connectors

19) TAC RF coaxial connectors

20) Reverse polarity connectors

21) Plug for cell-phones and special purpose connectors

22) Coaxial terminations

23) Lightning arresters

24) Jumper cables

25) Inter-type adaptors

MAJOR TECHNICAL CHARACTERISTICS

Temperature Range

-55 to +155° C (PE Cable -40 to 85° C)

Vibration

100m/s (10-500Hz), 10g

Impedance

75 Ω

Frequency

DC to 11GHz

Working Voltage

1000V r. M. S at sea level

Withstanding Voltage

2500V r. M. S at sea level

Contact Resistance

Center contact

≤ 1m Ω

Outer contact

≤ 1m Ω

Insertion Loss

≤ 0.24dB(6GHz)

Insulation resistance

≥ 5000M Ω

Center Conductor Retention Force

≥ 0.56N

Voltage Standing Wave Ratio

Straight

≤ 1.15/6GHz

Right angle

≤ 1.25/6GHz

Durability(mating)

≥ 500cycles

MATERIAL AND PLATING

Body

Brass

Nickel plated

Pin Contact

Brass

Gold plated

Socket Contact

Beryllium or tin bronze

Gold plated

Resilient Contact

Beryllium-copper

Gold plated

Insulator

PTFE

Crimp Ferrule

Copper alloy

Nickel or gold plated

O-ring Sealing

6146 silicon rubber

APPLICABLE STANDARD

MIL=C-39012

CECC 22210

IEC 60169-16
