Takfly Communications Co., Ltd. >> 2-48 Core Armored Outdoor Fiber Optic Cable

2-48 Core Armored Outdoor Fiber Optic Cable

2-48 Core Armored Outdoor Fiber Optic Cable
Price: US $ 5.5/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: Takfly-18
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name: Fiber Optic Cable
Cable Type: Single Mode/Multimode
Connector Type: Sc, FC, St, LC, MTRJ,MPO, MTP, Mu, E2000 and etc.
Color Of Cable: Yellow (Sm)/Orange (mm)/Aqua (Om3)
OEM/ODM: Acceptable
Warranty: 2 Years
Certfication: Ce/UL
Free Samples: Yes
Tube: Loose Tube Stranded/Sz Stranded
Delivery Time: 5-7 Days
Application: Communication
Type: Single-mode Fiber
Certification: ISO9001
Connection Structure: Sc/LC/FC/St
Sheath Material: PVC/LSZH

Product Description

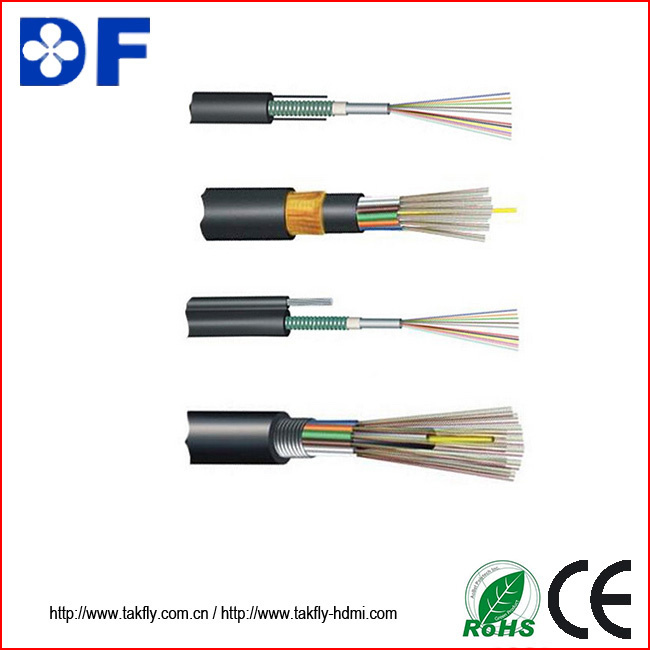

Armored Outdoor Fiber Optic Cable


Description:

The fibers, 250μ M, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. Over the tube, water-blocking material is applied to keep the cable watertight. Two parallel steel wires are placed at the two sides. The cable is completed with a polyethylene (PE) sheath.
·

Characteristics:
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Two parallel steel wires ensure tensile strength
· PE sheath protects cable from ultraviolet radiation
· Small diameter, light weight and friendly installation
· Long delivery length
· Standards
GYXY cable complies with Standard YD/T 769-2003.

Cable TypeFiber CountCable Diameter
mm
Cable Weight kg/kmTensile Strength

Long/Short Term N
Crush Resistance

Long/Short Term
N/100mm
Bending Radius

Static
/Dynamic
mm
GYXS/GYXTW-2~122~1210.0105600/1500300/100010D/20D
GYXS/GY XTW-2~122~1210.61241000/30001000/300010D/20D
GYXS/GY XTW-14~2414~2412.51491000/30001000/300010D/20D
GYXS/GY XTW-26~3626~3614.01901000/30001000/300010D/20D
GYXS/GY XTW-38~4838~4815.02161000/30001000/300010D/20D
Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.

The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.

TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.

Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
