| Prod Model: |
LYD-2.4G |
| Output: |
4 Channel |
| Output Current: |
6A/CH |
| Static Power Consumption: |
<1W |
| Working Temperature: |
-20 - 60 |
| Connection Mode: |
Common Anode |
| Application: |
Audio / Video Players |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
<50m |
| Material: |
Plastic |
| Battery Type: |
AAA Battery |
| Voltage: |
DC12V~24V |
Product Description
Basic InfoModel No.:LYD-2.4G
Voltage:DC12-24V
Output:4 channel
Output current:6A/ch
Connection mode:common anode
Static power consumption:<1w
Material:ABS
Telecontrol distance:30meters
Brand name:Louita
Place of origin:Shenzhen,China

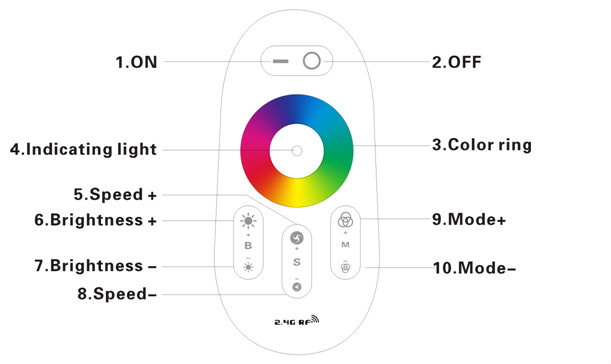

Product DescriptionWith the technology of the 2.4G high frequency wireless remote control,it has the characteristics
of low power consumption,long distance transmission,and strong anti-interference ability,high
speed telecommunications,etc.The remote looks fashionable and elegant,with simple and prac-
tical functions of color changing and brightness dimming,the capacitive touch screen design
makes the remote easy to use.
Technical Data
Remote | Size | 120*52*20mm |
| Power | AAA battery*2pcs |
| Material | ABS |
| Fabrication processing | Multicolor printing &UV varnish |
Controller | Size | 85*45*23mm |
| Working voltage | DC12V--24V |
| Control way | RGB three channels/RGBW four channels |
| Max load per channel | 6A |
| Output connection | Common anode |
| Telecontrol distance | 30 meters |
| Programs | 9 kinds |
Programs:Programs 1(RGBW Fade Out)
This program fades in and fades out the color red,green,blue and white one after anther.
Programs 2 (Color Flash)
In this program,red,green,blue,white ,yellow purple flashes to change.
Programs 3 (Disco)
Different colors strobe and flash to change.
Programs 4 (Red Color Ramp up and flash)
In this program,red color brightens from 0%-100% and shuts down,then flashes three times.
Programs 5 (Green Color Ramp up and Flash)
In this program,green color brightens from 0%-100% and shuts down,then flashes three times.
Programs 6(Blue Color Ramp up and Flash)
In this program,blue color brightens from 0%-100% and shuts down,then flashes three times.
Programs 7(Color Change+Flash)
Here several colors fade into each other and then flash randomly
Programs 8(Fade in and Fade out)
Here different colors fade into each other.
Programs 9(Strobe White)
Just white color flashes up.
TIPS:TO dim all RGBW lights at once or change the color ,first press 'Master ON'.To do this with
individual lights,first press'Zone ON'.Secondly,choose the color or brightness according to
the color ring or brightness ring.
For RGB led strip light,the white is mixed from Red,Green and Blue,so the white is not pure.
For RGBW led strip light,the white is pure white.

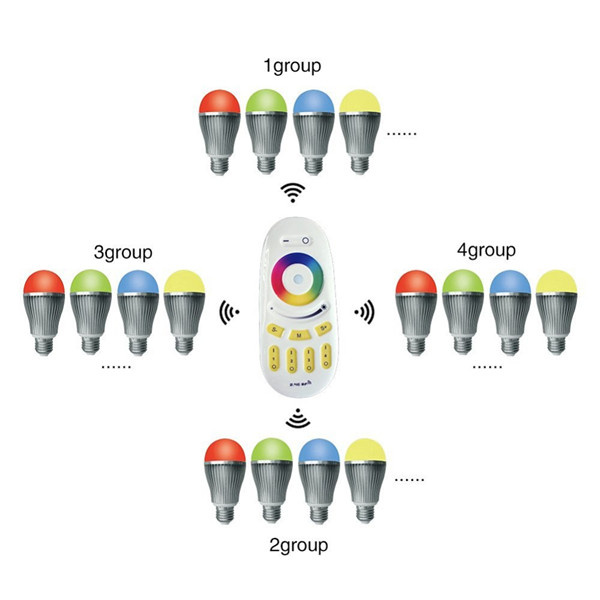

Attention:1.The regular for sale is a kit(remote and controller).The user can re-programme freely as needed.One
remote can control countless controllers,but one controller can only be controlled by four remotes(Max).
2.Please check the battery installation and controller(totally discharge the power),when you
programme after switching off and switching on.
