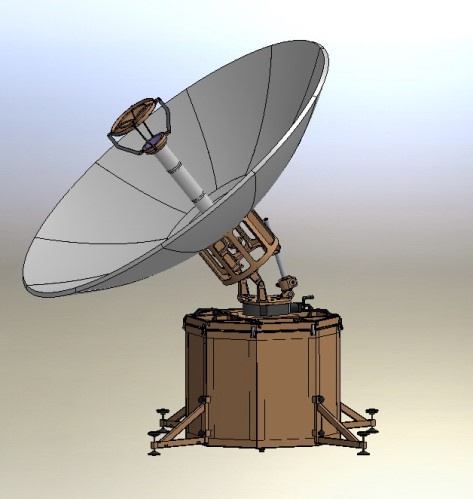

2.4m Carbon Fiber Flyaway Antenna

Features:
11 carbon fiber panels
High gain and excellent sidelobe performance
15 Minutes Setup
Easy & fast fine elevation adjustment
Two cases

Approvals or Compliance:
ASIASAT
APT
CHINA SATCOM
SINOSAT
INTELSAT
EUTELSAT

Main parts:
Feed horn
OMT & Filter
Panels
Back structure
Tripod mount

Specification of 2.4m Carbon Fiber Flyaway Antenna

R.F SPECIFICATIONS	C-Band
	RECEIVE		TRANSMIT
1. Frequency(GHz)	3.625-4.2 3.4-4.2 ★ 38.05 at 3.8GHz 1.25:1 2.056° 2Port Feed 38K 31K 27K		5.85-6.425
			5.85-6.725 ★
2. Typical Gain(dBi)			41.7 at 6.0GHz
3. VSWR			1.25:1
4. Beamwidth (-3dB)			1.352°
5. Antenna Noise Temperature(K)
10°Elevation
20°Elevation
40°Elevation
6. Typical G/T at 20°EL	20.20dB/K (3.8GHz, 30K LNA)
7. Power Handling Capability			5KW/Port
8. Feed Interface	CPR-229		CPR-137
9. Feed Insertion Loss	0.25dB		0.2dB
10. Tx to Rx Isolation	≥85dB
11. Axial Ratio (dB)	1.5dB		1.0dB
12. Cross Pol Isolation-On Axis	≥35dB
13. Sidelobes	CCIR.580-6
MECHANICAL SPECIFICATION		ENVIRONMENTAL SPECIFICATION
1. Antenna Type	Dual-reflector	1. Wind Loading, Operational (Without anchoring)		25 mph
2. Drive Type	Manual	2. Wind Loading, Operational (With anchoring)		30 mph gusting to 45 mph
3. AZ Travel	0 to 360°	3. Wind Loading, Survival (anchored)		80 mph in zenith (90° elevation) position
4. EL Travel	5° to 90°	4. Ambient Temperature		-40°C to 60°C
5. POL Travel	±90°	5. Rain		100mm/h
6. Reflector Material	Carbon Fiber	6. Relative Humidity		0 to 100%
7. Reflector Segments	11	7. Solar Radiation	360 BTU/h/ft²(1000Kcal/h/m²)
8. Mount Type	Case support	8. Ice	25mm on all surface or 13mm on all surface with 130km/h wind gusts
9. Measures&weights	Case size(mm)	Net weight(kg) 100 50	Gross weight(kg) 100 80
Mount case Panel case	940940900 1160660800
Our company reserves the right of final interpretation. Any design and specifications are subject to change without notice.

Company Introduction

Established in 1985, HUAXIN ANTENNA is a professional manufacturer which is specialized in all series of Satellite Earth Station Antennas, Carbon Fiber Antennas and Customized Antennas with size from 0.35m to 16.0m. Keeping adequate inventory and providing professional customized service, HUAXIN is able to meet clients' emergency requirements and satisfy clients' individual needs.

HUAXIN products have achieved ISO9001: 2008 Quality Management System Certification, some are type approved by Asiasat, APT, China Satcom, and some have Intelsat, Eutelsat, SES, and FCC certificates. Integrated with research, development, manufacturing and sales, HUAXIN has developed into one of the leading companies in the market with excellent quality and competitive price domestically and internationally.

Manufacturing Ability

Factory covers an area of 395000 sq FT, which owns workshop area of 215300 sq FT and research & development center area of 54000 sq FT.

Professional R&D center and test center (antenna feed technology lab, microwave test center, antenna far-field test center)

Independently design, develop and manufacture all kinds of antenna mould and antenna parts, which can effectively reduce the cost and shorten the lead time.

Excellent Production Capacity - 2 or 3 Shifts, able to operate big projects in short time; Keep a large stock of goods; Prompt and short period of delivery.

Precise CNC machine, dedicated tooling equipment:

Structural component processing equipment: CNC Machine Centre, CNC Gantry Milling Machine, CNC Boring Machine, CNC Lathe, CNC Vertical Drill Machine, CNC Cutting Machine, CNC Bending Machine

Panel processing equipment: Panel stretcher, Large-tonnage Hydraulic Machine, Autoclave

Tooling: Single Panel Riveting Tooling, Reflector Assembly Tooling

Surface Accuracy Measuring Equipment: MPS/S Single Camera Industrial Photogrammetric System

Electric Performance Test Equipment: Scalar Network Analyzer, Scalar Network Signal Source, Spectrum Analyzer, Signal Source

Surface Treatment Equipment: Shot blasting machine, Surface Grinding Machine, Professional Clean Spray Room
