| Prod Model: |
BV |
| Type: |
Insulated |
| Conductor Type: |
Solid |
| Application: |
Underground |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
RoHS |
| Brand: |
Sansen |

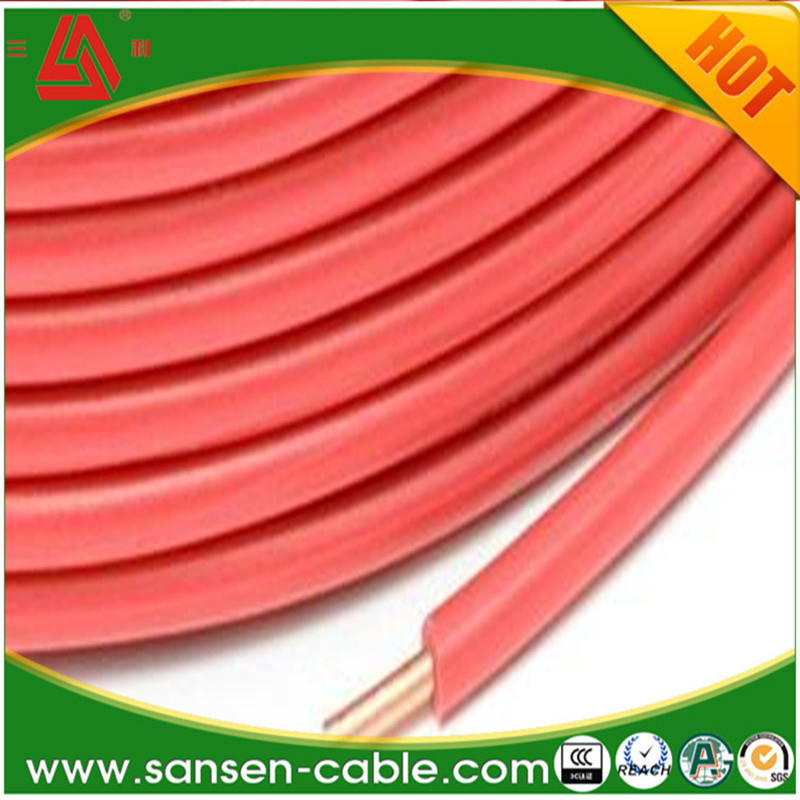

Product Description

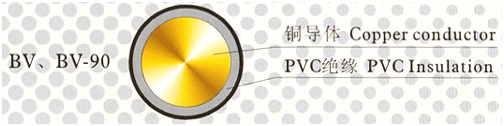

A product profile:Scope: This product is suitable for AC 50Hz, fixed installation voltage less than 450/750V below the power device.The working temperature of the long term is allowed: the BV-105 type is no more than 105, and the other is no more than 70. Inner core material : 99.99% oxygen free copperStandard: GB/T 5023.3-2008 rated voltage 450/750V and below PVC insulated cableProducts logo : red, yellow, blue, green, double color (yellow / green), white, black, according to different purposes, the proposed two colors or three color group, general fire red; zero line colors for the blue, green, yellow; ground optional double color. The skin should have the manufacturer name, product type and rated voltage continuous marking, factory name identity can be a manufacturer or brand name repeated logo, logo printing should be resistant to wear and not to fall off, surface printing content should be legible. Delivery lengthStandard 100 meters / disc (0.5 m), can also be customized 200 meters and above disc packaging. Packaging, transportation and storage1. Roll or disc cable shall be wound and properly packed..2 cable packaging should be accompanied by the label: manufacturer name, model, specification, rated voltage, length, production date, standard number, etc..3. The transportation is generally based on the form of vehicles and ships, transport must be reliable cable fixed, in order to avoid collision or tipping of the cable or the disc with damage4. The finished cable shall be stored in temperatures of 0 to 40 Celsius degrees, humidity below 85% of the environment, do not be direct exposure to the sun, the rain, should be adequate ventilation, to keep the environment dry. OrderingIn order to correct the cable type, size, length, delivery date, packing way, etc., the order should be correctly identified,for example, model BV4Length: 100MPackaging : stretch film packaging / cable tray packaging.Delivery date: XX, XX,Mode of transport : railway transportation, automobile, shipping or air transport (Note: the means of transportation and place of delivery the buyer designated a.Flame retardant wire can be produced according to customer requirements A.B.C three category. Installation instructionsInstallation and environment temperature should should not be lower than 0°C, if the thermometer test environment temperature below 0°C, should first preheat treatment on the cable and then prepare the installation; in does not have the effective measure to prevent the heat in the high temperature environment, the sun often irradiated or cold place, should choose the appropriate special types of plastic wire.Synthetic data of 300/500V BV model PVC insulated wire with copper coreNominal cross section of conductor
mm2 | Minimum number of single line in the stranded conductor | Rated value of insulator thickness
mm | Upper value of average overall diameter
mm | Minimum insulation resistance under temperature 700C MΩ.km | |
| |
0.75
1 | 7
7 | 0.6
0.6 | 2.6
2.8 | 0.014
0.013 | |
Note: 1.Insulator:PVC/C type PVC mixture is adopted as insulating material.
2.The average overall diameter should not be larger than the upper value stipulated in the
above table.
FAQ:Q1. What kind of products can your company supply? A: We specialize in supplying network cable, coaxial cable, power cable ,control cable , telephone cable, speaker cable and ect. Q2. What's your MOQ?A: The MOQ of long meter cable is 50 km, or we can negociate. Q3. What's your delivery time? A: Our delivery time is about 15-20 days after comfriming the deposite, it is based on the quantity of the order. Q4. What are your payment terms?A: Normally, we accept T/T in advance, as for other payment term, we can negociate with you. Q5. What's your trade term ? A: We can accept FOB, CIF, EXW term. Q6. What's your conventional packing ? A: 100m/plastic or wooden drum, 305m/wooden drum or color box. However, we can produce according your demand. Q7. Can your factory customize cables based on clients' samples or data sheet ? A: Yes, we can. Q8. Can you offer me a free sample?
A: Yes, we do, that is a start of business I think, and you will only pay the cost of delivery, which we will return it to you when you put the order.
We are specialized in manufacturing of cables for more than 20 years. Can product Building cable, Electrical equipment cable, Automobile cable, Control cable, Coaxial cable, Network communication cable, Audio cable, Monitor cable and the like. We also offer OEM and ODM services.

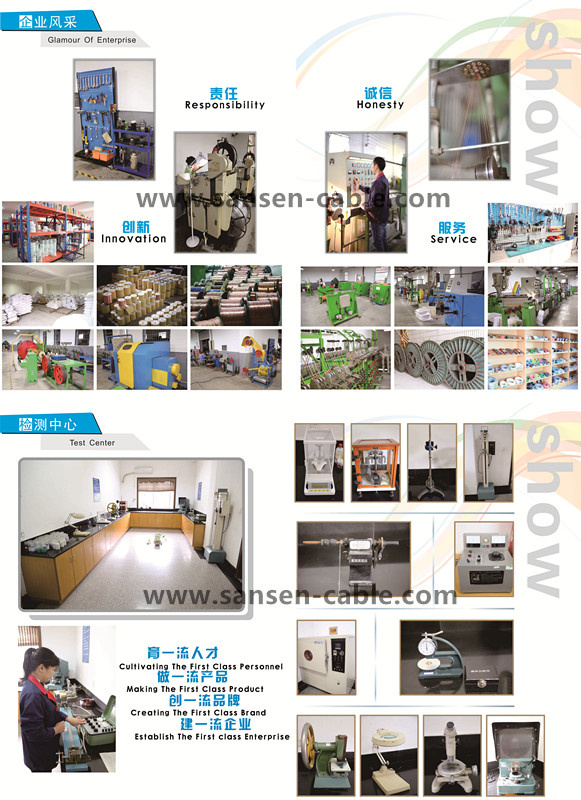

Located in Huzhou, Zhejiang Province, where is between Shanghai and Hangzhou, we enjoy convenient transportation, thus we can ship goods in Shanghai Port as well as Ningbo Port. Our factory totally covers an area of 3, 000 square meters. High skilled staffs and technical engineers have been dedicated to cable techniques since our company was founded.
At the present, most of our customers are domestic trading companies, and 90% products are exported to all over the word via them; Meanwhile we are developing oversea market by ourselves.
We are keen on building long-term solid relationship with all serious buyers, with sincerity, we welcome you to China to visit our factory and office.
