2.54mm Box Header SMT Type with Pick and Place Cap

Name: 2.54mm Box Header SMT Type with Pick and Place Cap
Brand: all-electronics-online.com
SKU: 723606025
Availability: InStock
Rating: 4.6 (146 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW,CIF
Min Order:	1000/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	2.54MM BOX HEADER 001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe
Mode Of Production:	DIP
Metal Coating:	Gold

Product Description

SPECIFICATION

2.54MM Box Header SMT H=9.0(With or without Post)

Recommended P.C.B Layout (Top Side)
PCB board tolerance+-0.05

Current Rating: 3.0Amp
Insulation Resistance:1000MΩ min
Contact Resistance: 20MΩ max
Withstand Voltage: 500V AC/DC
Operating Temperature: -40°C to +105°C
Contact Material: Brass
Contact Plating: Au or Sn Over Ni
Insulator Material: PBT/PA6T+30%GF UL 94V-0

Position: 2X3P TO 2X40P

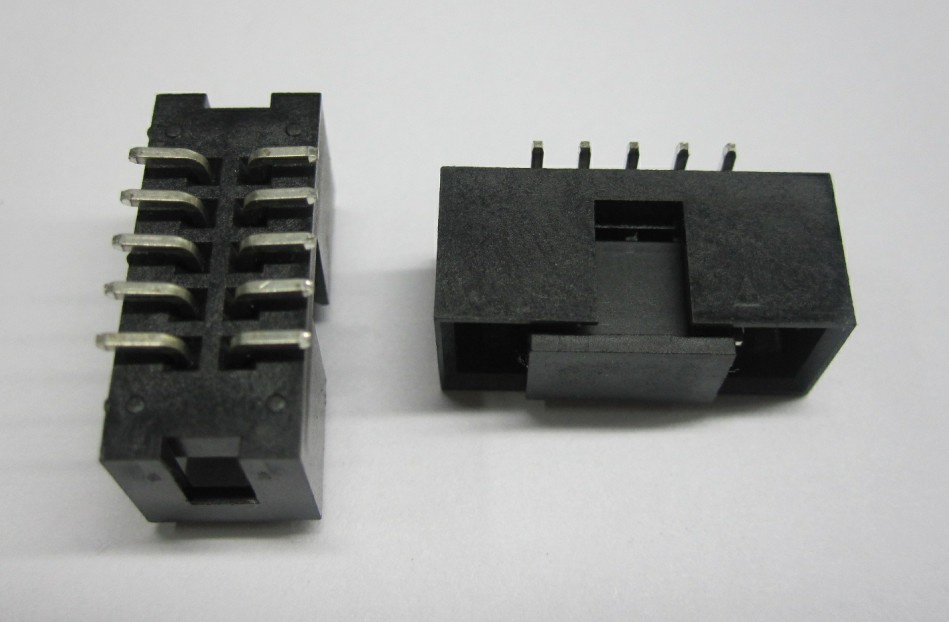

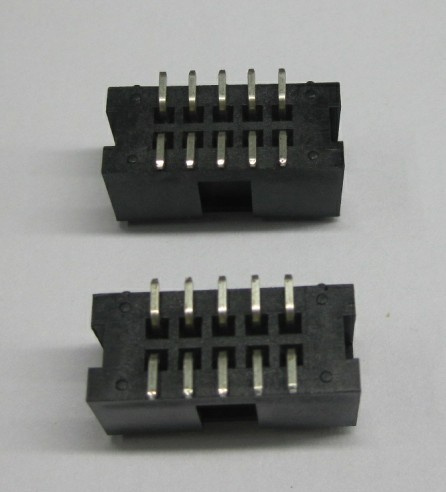

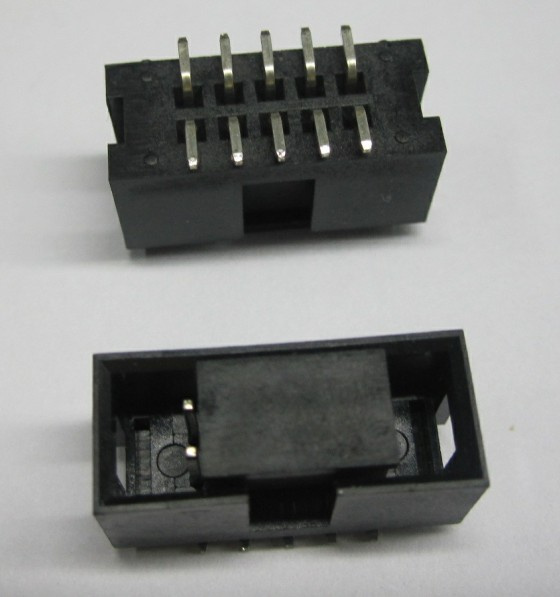

PHOTOS DETAILS:

Our main products like follows:

1.Board to board connectors
2.Wire to board connectors;
3.Box and ejector headers;
4.Female and pin headers;
5.DIP plug and IDC sockets;
6.Jacks and Terminal blocks;
7.Wire harness and cable assembly;
8.I/O input and output connectors;

Welcome to visit our homepage for more information: www.antenk.com.cn

Shenzhen Antenk Electronics Co., Ltd., was established in 2004 year, we mainly produce high quality of PCB Jack, wire to board connectors, board to board connectors, I/O connectors, terminal block, and cable assembly such as Wire assembly, RF cables, computer peripheral cable from our production line too.

We are manufacture with workers around 200 staff in south of China, mostly of products 65% export for overseas market.In the same time, all of our new products are and will always be designed for a various of application and to meet UL and CSA regulations, also EU directive RoHS compliant.We are carry with ERP system for operation and shipping.
All staff of Antenk electronics Co., Ltd sincerely welcomes all visitings and instructions from our friends, and we are willing to establish the long-term and intimate co-operation relationships with all of our friends and customers.
