| Prod Model: |
2-way pcb terminal block |
| Pitch: |
2.54mm |
| Rated Voltage: |
150V 130V of 2-Way PCB Terminal Block |
| Rated Current: |
6A 8A of 2-Way PCB Terminal Block |
| Wire Range: |
26-18AWG 1.0mm2 |
| Screws Material: |
M1.6, Steel, Cr3+ Zn Plated |
| Pin Header Material: |
Brass, Tin Plated |
| Ambient Temperature: |
-40°c~+105°c |
| Strip Length: |
4.5mm for 2-Way PCB Terminal Block |
| Application: |
Transmission of Electrical Signals |
| Type: |
Spade Terminal Block |
| Material: |
Spade Terminal Block |
| Interface Type: |
Spade Terminal Block |
| Brand: |
Spade Terminal Block |
Product Description
2.54mm pitch 2-way/pin pcb terminal blockProduct Description
Description for 2-way pcb terminal block
| Product Name | 2-way pcb terminal block |
| Pitch | Can be 2.54mm,3.5mm,3.81mm,5.0mm,5.08mm,7.62mm,9.5mm,11mm etc. |
| Voltage | 300V |
| Electrical | UL |
| Current Rating | 10A-15A |
| Solid Wire(AWG) | 12-26 |
| Turque | 6.0kgf.cm/M3.0 |
| Operating Temperature | -40ºC ~ +105ºC |
| Poles | 2P-24P |
| Housing | PA66, UL94V-0 |
| Pin | Brass and Tin plated |
| OEM/ODM | Accpet and made based on drawing and samples |
| Payment Terms | T/T,PayPal,Western Union,L/C |
| Lead time | 10-14days |
| Package | Box and Carton |
| Certificates | RoHS,CE,UL,TUV,ISO |
| Samples | Free Samples confirmed first before mass production |
| Partner | FCI,DELTA,DANAHER |
| Company Advantage | 1.Factory and trade integration,18 years export experience;
2.One-stop shopping;
3.Competitive price;
5.Timely delivery;
6.Technical support;
7.Samples for free;
9.Alibaba Top 5 Supplier;
10. High Trade Assurance Level |
Company information
Our PCB terminal blocks are replacement for Phoenix/Wago/weidmuller/Dinkle, passing ISO,UL,TUV certification and have SGS, RoHs test report, our products are widely used in security, lighting ,instrument & meter, and industrial power and other fields.
Moreover, our products sold to more than 65 countries and the quality has been highly recognized and praised.We have professional R&D, mould, automated tapping, metal processing, automated assembly and computerization team,OEM/ODM service can be ensured.Now,we have built cooperation with Hyundai group,Delta,Danaher.
Sincerely,we are willing to become much stronger with both domestic and foreign customers together to create a brilliant future,making win-win to come true.

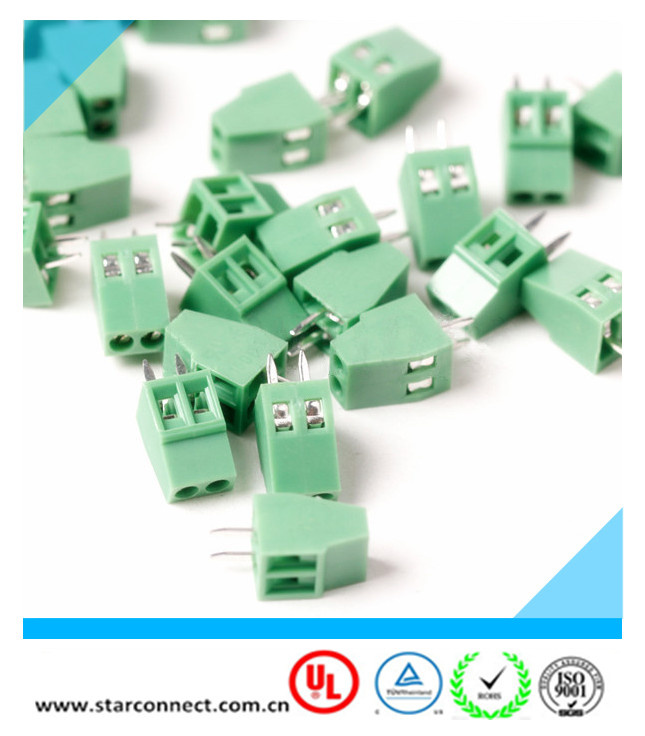

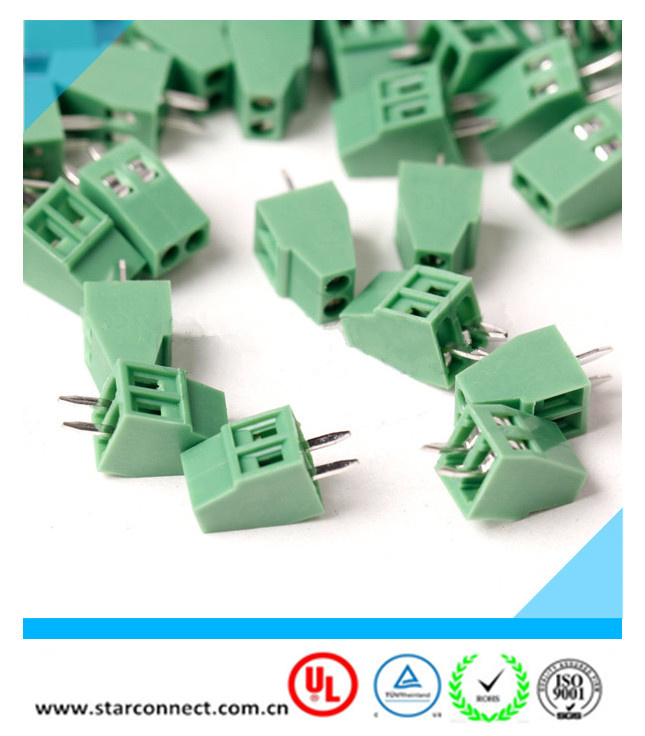

picture for the product:
