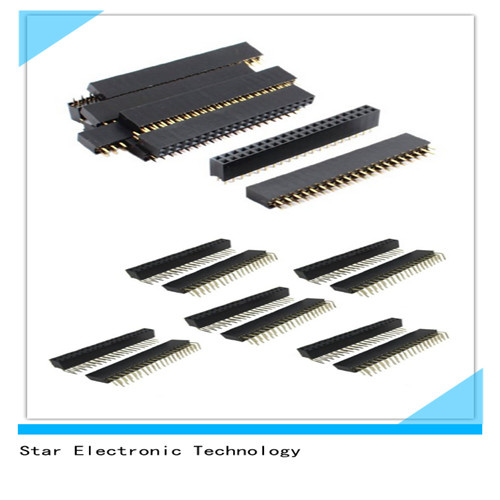

2.54mm Pitch 2X20 40-Pin Female Pin Header Socket Connector

Name: 2.54mm Pitch 2X20 40-Pin Female Pin Header Socket Connector
Brand: all-electronics-online.com
SKU: 755810405
Availability: InStock
Rating: 5 (26 reviews)

Price:	US $ 0.001-1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	200/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	2.54mm Pitch Female Pin Header
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Header:	Male and Female
Pitch:	1mm,1.27mm,2.0mm,2.54mm,1.778mm
Plating:	Glod, Sn
Material:	PBT, Ny 6t
Environmental Protection:	Resistance to Environmental
Application:	Battery
Connection Mode:	Push-Pull Connection
Brand:	Star
Shape:	2.54mm Pitch Female Pin Header
Contact Termination Form:	2.54mm Pitch Female Pin Header
Interface Type:	2.54mm Pitch Female Pin Header

Product Description

2.54mm Pitch Female Pin Header

Material:
Housing:30% Glass filled PBT UL94V-0
Contacts:Brass
Plating:Gold plated/Tin plated
Electrical Characteristics:
Storage Temperature:-20ºC~+70ºC
Operating Temperature:-40ºC~+105ºC
Current Rating:2AMP
Insulator Resistance:1000MΩmin
Contact Resistance:20MΩmax
Withstanding Voltage:1000V AC/rms 50HZ For 1 minute

Details :

Electrical Specification:	UL
Rated Voltage:	300V
Rated Current:	10A
Pitch(MM)	1.00,1.27mm,2.54mm
Poles	2P-80P
packing	tube/ reel tape
Temperature range for usage:	-40ºC ~ +105ºC

If you can't find the exact product you need in the pictures,please don't go away.Just contact me freely or send your sample and drawing to us.We will reply you as soon as possible.

STAR Electronic started its business as various of connectors, like PCB connectors, auto connectors and so on. Throughout the years we are developing to not only connector supplier but also one wire harness/cable assembly manufacturer for home appliance and automotive market, one comprehensive connection solution supplier for our old and new customers. With years of experience in this field, we have been successfully expanded with one network with components and assembly facilities which enable us to control all cost under reasonable range and meet various lead time requirement.

Nowadays, STAR Electronic is a leading enterprise offering full range of connectors and wire harness to South& North America, European and Asia countries, our customers in auto field are from not only aftermarket but OEM car factories. We insist that quality is the existence and service is the basic for one company. Once you offer a chance to STAR, STAR will reward what more than you expect. We are welcome any of your inquiries or face to fact talking and visiting.
