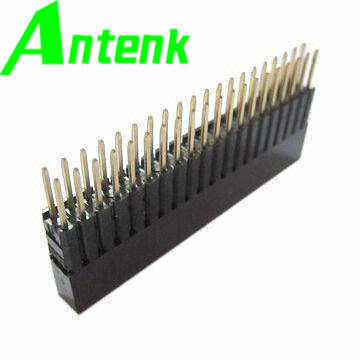

2.54mm Pitch Female Header with Plastic Added 7.5mm, DIP Straight Dual-Row Type

Name: 2.54mm Pitch Female Header with Plastic Added 7.5mm, DIP Straight Dual-Row Type
Brand: all-electronics-online.com
SKU: 719824145
Availability: InStock
Rating: 4.8 (79 reviews)

Price:	US $ 0.5/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	500/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Pin Header series 001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe
Support Network:	Ethernet
Usage:	Mobile phone
Type:	Wireless
Information Content:	Data

Product Description

Special features:
Materials:
Contact: Brass or copper alloy
Insulator: PBT + 30G. F, UL94V-0 rated
Pitch: 2.54mm (2.54 x 2.54/2.00/5.08 are also available)
Position: 4 to 100 and double row with insulator
Contact plating:
Under-plated: 50 to 100μ -inch nickel
Contact area: 1 to 30u-inch selective gold
Solder tail area:
100μ -inch tin/lead (brighten tin) or
100μ -inch tin/lead free (brighten tin/matte tin)
Electrical:
Operation voltage: 250V AC (maximum)
Current rating: 3A (maximum)
Contact resistance: 15 to 20M (maximum)
Insulation resistance: 1, 000 to 5, 000M (minimum) at 500V DC
Dielectric withstanding voltage: 1, 000V AC/minute
Operating temperature: -40 to 105C
Maximum processing temperature: 230C for 60 seconds
Maximum processing temperature: 260C for 10 seconds
OEM and ODM orders welcomed

Shenzhen Antenk Electronics Co., Ltd., was established in 2004 year, we mainly produce high quality of PCB Jack, wire to board connectors, board to board connectors, I/O connectors, terminal block, and cable assembly such as Wire assembly, RF cables, computer peripheral cable from our production line too.

We are manufacture with workers around 200 staff in south of China, mostly of products 65% export for overseas market.In the same time, all of our new products are and will always be designed for a various of application and to meet UL and CSA regulations, also EU directive RoHS compliant.We are carry with ERP system for operation and shipping.
All staff of Antenk electronics Co., Ltd sincerely welcomes all visitings and instructions from our friends, and we are willing to establish the long-term and intimate co-operation relationships with all of our friends and customers.

Antenk Philosophy
Perfect service;
Reasonable price;
Innovation continual;
Environment friendly.
