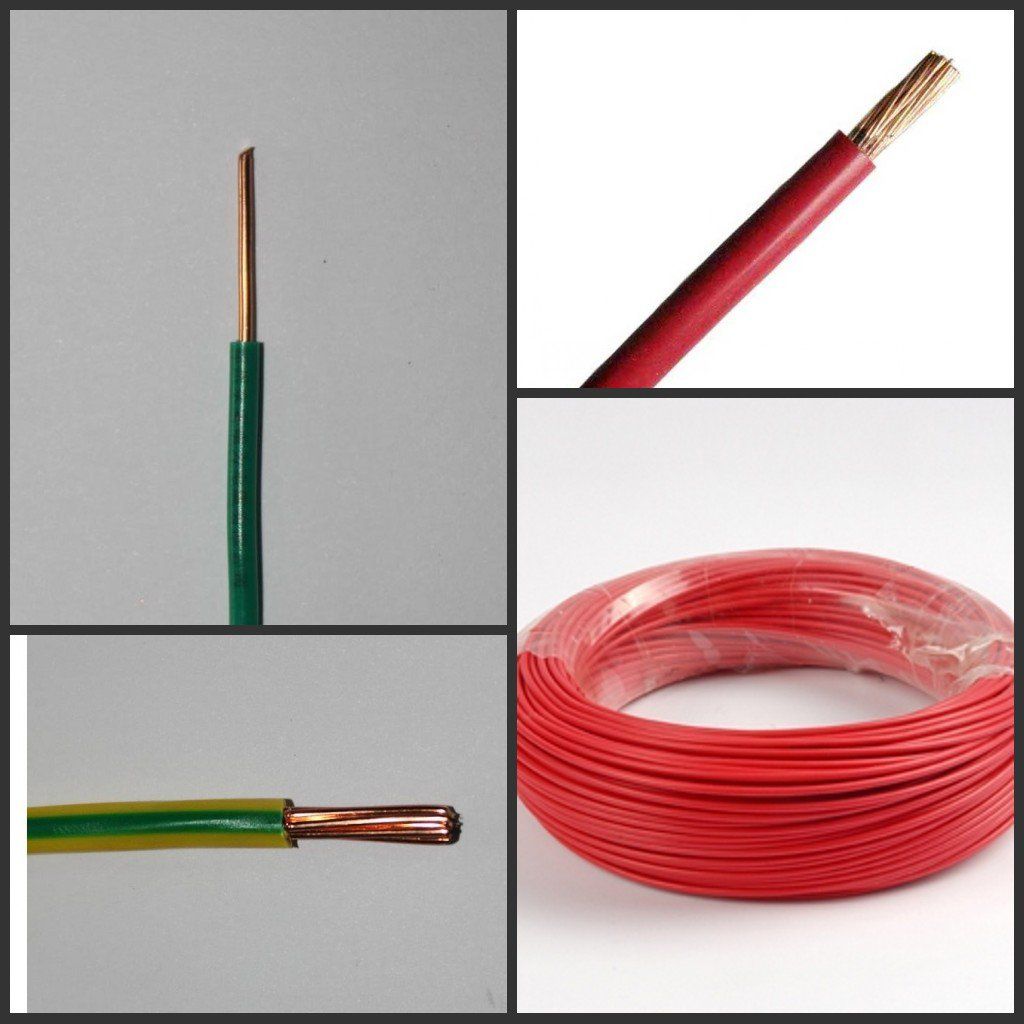

2.5mm Copper PVC Coated Electrical Housing Wire & Cable
| Price: |
US $ 0.016/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
2.5mm |
| Standard: |
BS, CSA, DIN, IEC... |
| Electrical Wire 2.5sq.mm: |
Black,Red,Yellow,Blue,Brown,Green |
| Certificate: |
Ce, ISO 9001 |
| Type: |
Insulated |
| Application: |
Heating |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
CCC |
| Conductor Type: |
Solid or Stranded |
| Sheath Material: |
None |
| Range Of Application: |
Household |
| Brand: |
Jytop |
Product Description
2.5mm Copper PVC Coated Electrical Housing Wire & CablePVC cover electrical wire thw or tw awg 14 12 10 8 6 solid or strand wire
Single Core PVC Copper Wire 2.5mm Electric Cable

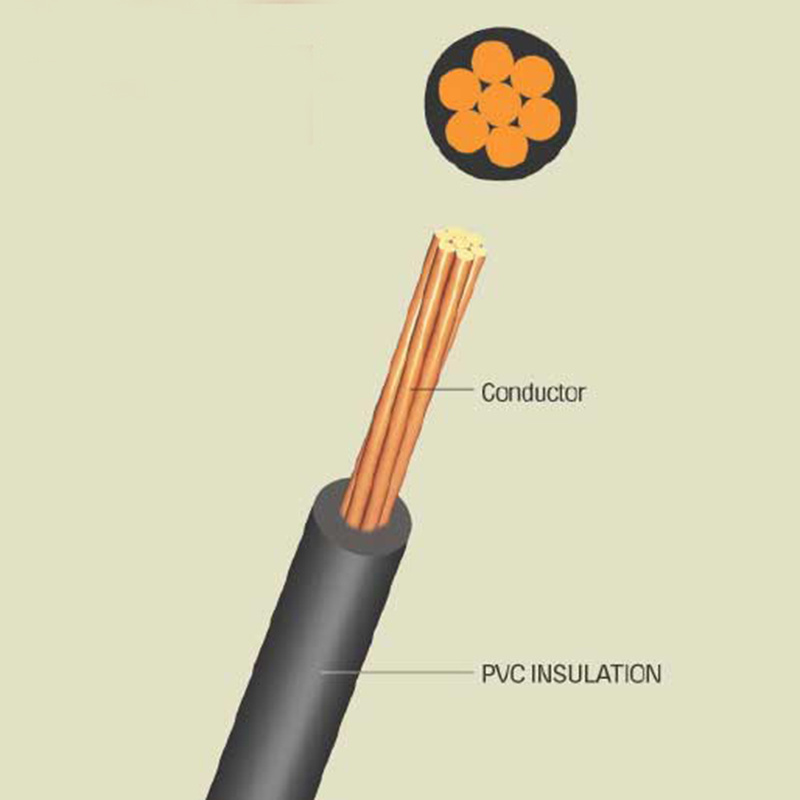

1.Product description:
(1) Conductor: Cooper
(2) Type of the conductor: Strands
(3) Insulation: PVC
(4) Normal of area: AWG size
(5) Voltage: 600V
(6) Sheath color:black rubber orange PVC
(7) Standard: UI83
(8) Code name: THW
2.Application:
PVC Insulated cables are used for general purpose, suitable for use in wet or dry locations, as building wiring for power, lighting and switch control wire.
3.technical sheet :
| Product Name | Electrical House Wire Single Core PVC Insulated 1.5mm Cable Price |
| Rated Voltage | 450/750V |
| Rated Temperature | 70ºC |
| Conductor | Solid or stranded copper conductor |
| Insulation | PVC |
| Insulation Color | Customized |
| Application | For fixed wiring; Can be placed into trunk and conduit. |
| Remark | The cable can be of flame retardant, fire resistance and other property. |
4.Technical Data:
| Item Spec. | Nominal corss
section
(mm2) | No./Dianmetr
of conductor
(mm) | Insulation
thickness
(mm) | Max.outer
diameter
(mm) | Ref.weight (kg/km) | Conductor
resistance at 20ºC≤(Ω/km) |
|
| H05V-U(227IEC05 BV) | 0.5 | 1/0.8 | 0.6 | 2.4 | 8.44 | 36 |
| H05V-U(227IEC05 BV) | 0.75 | 1/0.97 | 0.6 | 2.6 | 11.02 | 24.5 |
| H05V-U(227IEC05 BV) | 1 | 1/1.13 | 0.6 | 2.8 | 13.85 | 18.1 |
| H05V-R(227IEC05 BV) | 1 | 7/0.43 | 0.6 | 2.8 | 14.97 | 18.1 |
| H07V-U(227IEC01 BV) | 1.5 | 1/1.38 | 0.7 | 3.3 | 20.2 | 12.1 |
| H07V-R(227IEC01 BV) | 1.5 | 7/0.52 | 0.7 | 3.4 | 21.62 | 12.1 |
| H07V-U(227IEC01 BV) | 2.5 | 1/1.78 | 0.8 | 3.9 | 31.9 | 7.41 |
| H07V-R(227IEC01 BV) | 2.5 | 7/0.68 | 0.8 | 4.2 | 34.89 | 7.41 |
| H07V-U(227IEC01 BV) | 4 | 1/2.25 | 0.8 | 4.4 | 46.95 | 4.61 |
| H07V-R(227IEC01 BV) | 4 | 7/0.85 | 0.8 | 4.8 | 50.2 | 4.61 |
| H07V-U(227IEC01 BV) | 6 | 1/2.76 | 0.8 | 4.9 | 66.8 | 3.08 |
| H07V-R(227IEC01 BV) | 6 | 7/1.04 | 0.8 | 5.4 | 71.04 | 3.08 |
| H07V-U(227IEC01 BV) | 10 | 1/3.58 | 1 | 6.4 | 111.62 | 1.83 |
| H07V-R(227IEC01 BV) | 10 | 7/1.35 | 1 | 6.8 | 118.61 | 1.83 |
| H07V-R(227IEC01 BV) | 16 | 7/1.7 | 1 | 8 | 178.68 | 1.15 |
| H07V-R(227IEC01 BV) | 25 | 7/2.14 | 1.2 | 9.8 | 280.51 | 0.727 |
| H07V-R(227IEC01 BV) | 35 | 7/2.52 | 1.2 | 11 | 378.97 | 0.524 |
| H07V-R(227IEC01 BV) | 50 | 19/1.78 | 1.4 | 13 | 508.07 | 0.387 |
| H07V-R(227IEC01 BV) | 70 | 19/2.14 | 1.4 | 15 | 715.76 | 0.268 |
| H07V-R(227IEC01 BV) | 95 | 19/2.52 | 1.6 | 17 | 989.79 | 0.193 |
| H07V-R(227IEC01 BV) | 120 | 37/2.03 | 1.6 | 19 | 1228.03 | 0.153 |
| H07V-R(227IEC01 BV) | 150 | 37/2.25 | 1.8 | 21 | 1509.8 | 0.124 |
Zhengzhou JINYUAN Wire and Cable Co., Ltd, as a professional cable manufacturer. We have get ISO9001 and CE certificates. Our Professional and complete cable solutions make JYTOP Cables become to the partner of choice for international companies around the world,
PRODUCTS & STANDARDS & International Market:
1). Bare Conductor:
All Aluminum Conductor (AAC),
All Aluminum Alloy Conductor (AAAC),
Aluminum Conductor Steel Reinforced (ACSR),
Aluminum Alloy Conductor Steel Reinforced (AACSR),
Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW),
Aluminum Conductor Aluminum Alloy Reinforced (ACAR),
Aluminum Conductor Steel Supported (ACSS),
Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW)
All Copper Conductors(ACC),
Aluminum Coated Steel Wire(ACS),
Copper Coated Steel Wire(CCS),
Copper Coated Aluminum(CCA),
Galvanized Steel Wire(GSW),
Enameled Wire - Enameled round Aluminum Wire & Enameled round copper Wire
2). Overhead Cable:
Aerial Bundled Cable (ABC).
XLPE Cable,
Flexible Cable,
Single Core Cable,
2 Core Cable,
3 Core Cable,
4 Core Cable.
3). Building wire and cable:
THHN /THWN Cable
TW/THW Cable
PVC Insulated Wire,
XLPE Insulated cable.
4. Power Cable:
Armored /Non-armored Power cable
AWA Cable
SWA Cable
Standards: IEC, ASTM, AS/NZ, SANS, BS, DIN, NF, JISC, etc.
We can meet customers' special requirements, and provided OEM service.
Mainly Oversea Marketing: Southeast Asia, The Middle East, Africa, South America, so on.
We will be recognized as a professional Manufacturer in cable industry, through continuous improvement of our product quality, after sales service. We can give you the reliable solution for cable wires.
