2.6A Low Loss Ideal Diode IC Integrated Circuit in Thinsot

Name: 2.6A Low Loss Ideal Diode IC Integrated Circuit in Thinsot
Brand: all-electronics-online.com
SKU: 802117195
Availability: InStock
Rating: 4.6 (97 reviews)

Price:	US $ 2.89/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

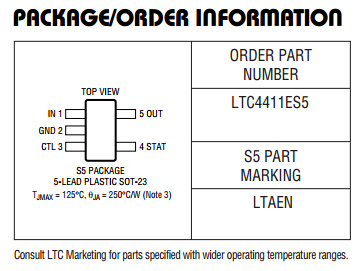

Prod Model:	LTC4411ES5

Product Description

2.6A Low Loss Ideal Diode in ThinSOT

Features
Low Loss Replacement for PowerPathTM
OR'ing Diodes
Small Regulated Forward Voltage (28mV Min)
2.6A Maximum Forward Current
Low Forward ON Resistance (140mΩ Max)
Low Reverse Leakage Current (<1µA)
2.6V to 5.5V Operating Range
Internal Current Limit Protection
Internal Thermal Protection
No External Active Components
Pin-Compatible Low-Power Replacement
for LTC4412
Low Quiescent Current (40µA typical)
Low-profile (1mm) 5-lead SOT-23 Package

Applications
Cellular Phones
Handheld Computers
Digital Cameras
USB Peripherals
Uninterrupted Supplies
Logic Controlled Power Switch

Description
The LTC®4411 is an ideal diode IC, capable of supplying up
to 2.6A from an input voltage between 2.6V and 5.5V. The

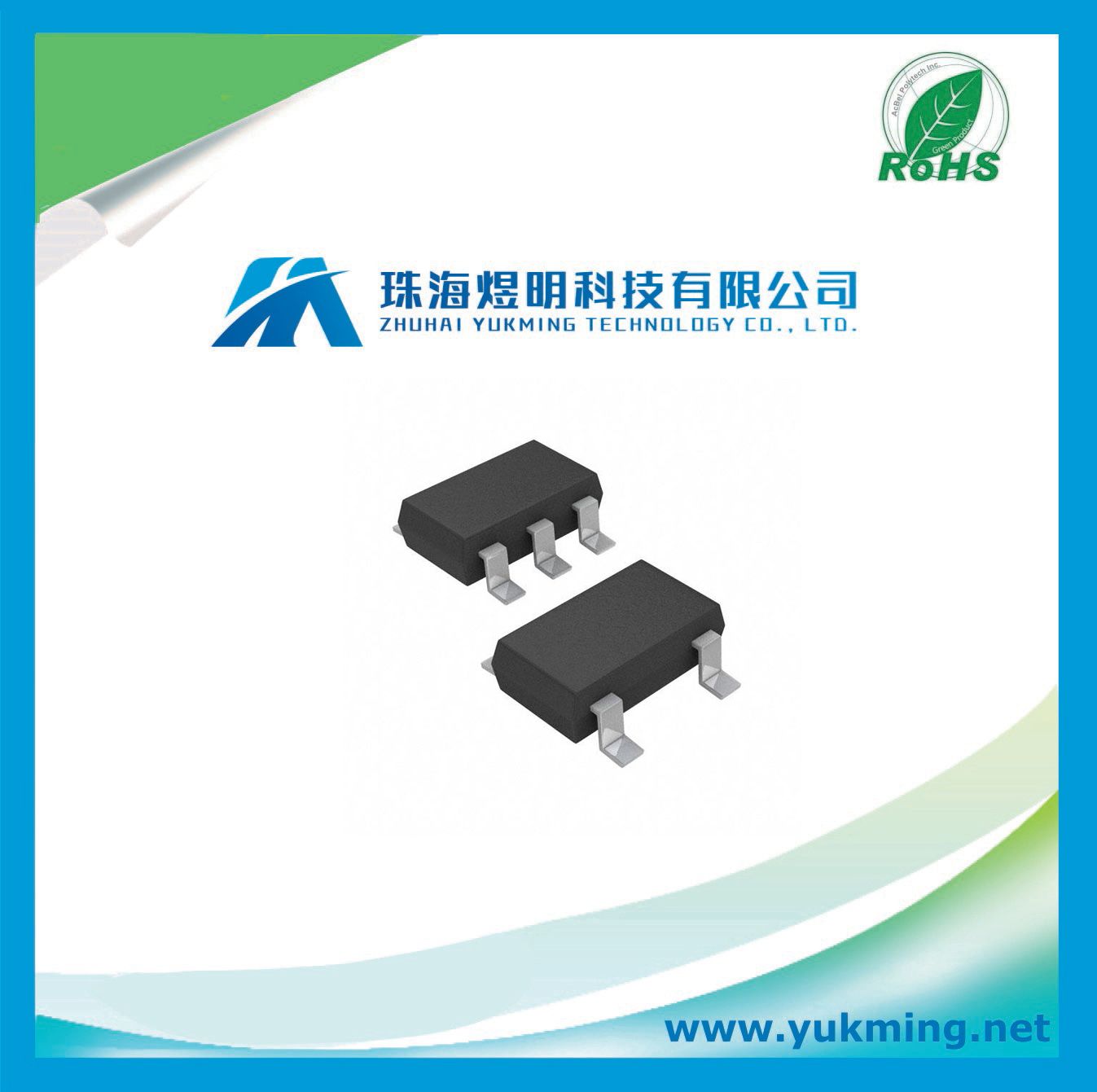

LTC4411 is housed in a 5-lead 1mm profile SOT-23
package.
The LTC4411 contains a 140mΩ P-channel MOSFET connecting
IN to OUT. During normal forward operation, the
drop across the MOSFET is regulated to as low as 28mV.
Quiescent current is less than 40µA for load currents up to
100mA. If the output voltage exceeds the input voltage, the
MOSFET is turned off and less than 1µA of reverse current
flows from OUT to IN. Maximum forward current is limited
to a constant 2.6A (typical) and internal thermal limiting circuits
protect the part during fault conditions.

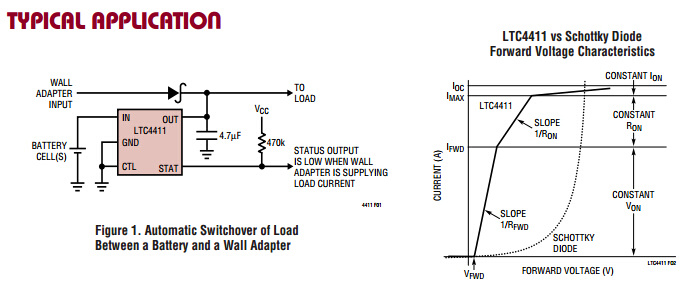

An open-drain STAT pin indicates conduction status. The
STAT pin can be used to drive an auxiliary P-channel
MOSFET power switch connecting an alternate power
source when the LTC4411 is not conducting forward
current.
An active-high control pin turns off the LTC4411 and
reduces current consumption to less than 25µA. When
shut off, the LTC4411 indicates this condition with a low
voltage on the status signal.
