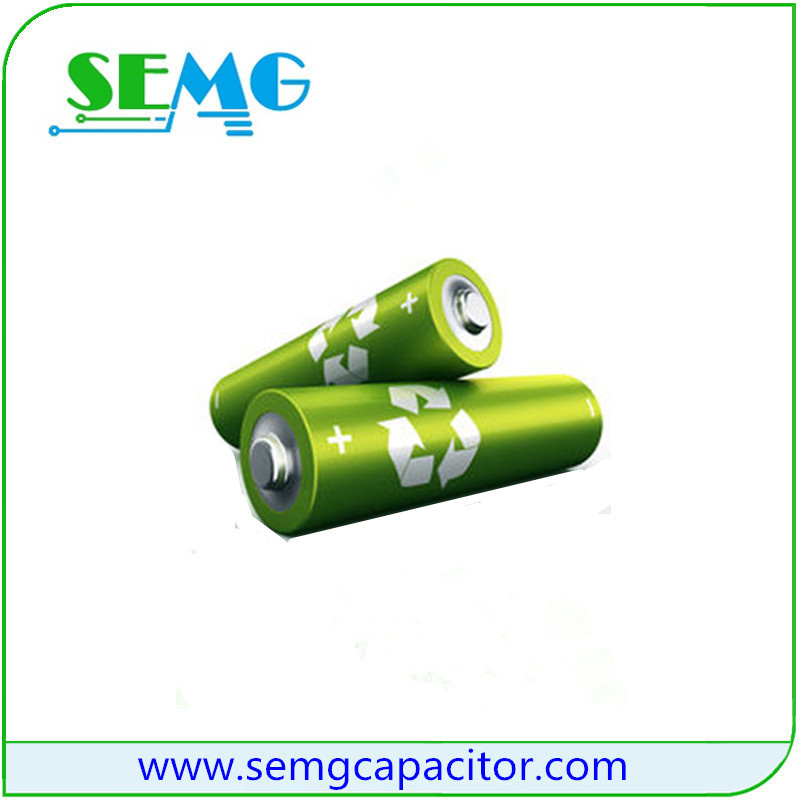

2.7V 0.7f Power Electrolytic Capacitor Super Capacitor
| Price: |
US $ 0.04-0.05/Piece |
| Trade Terms: |
FOB |
| Min Order: |
5000/Piece |
| Pay Type: |
T/T |
| Prod Model: |
2200UF16V |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Operating Temperature Range: |
-40~105 Degree |
| Rated Voltage: |
16V |
| Load Life: |
2000-3000hrs at Rated Voltage 105 Degree |
| Certification: |
RoHS,Reach, ISO 9001:2008, ISO 14001:2004 |
| Type: |
Supercapacitor |
| Application: |
Automobile |
| Package Type: |
Through Hole |
| Capacitance: |
>100uf |
| Usage: |
for High Quality, Reliability Application, High CV |
Product Description
Feature
*Small Size,High Capacitance
*Low LC
*Over 500,000 Times Cycle Life
*Lead Wire Termination
Application
*Backup Power,AMR,Black Box
*Auto Meter,DTU/FTU,POS Machine
*Fast Charging&Motor Driving Power,Toy car and plane
*Long Life Power,Solar Traffic Sign
Dimension
| Part Number | Dimension(mm) |
| D+.5 | L±0.5 | F±0.5 | d±0.05 |
| SC0001-2R7LR | 8 | 11 | 3.5 | 0.5 |
| SC0002-2R7LR | 8 | 14 | 3.5 | 0.5 |
| SC0003-2R7LR | 8 | 21 | 3.5 | 0.5 |
| SC0004-2R7LR | 10 | 22 | 5 | 0.6 |
| SC0005-2R7LR | 10 | 30 | 5 | 0.6 |
| SC0006-2R7LR | 12.5 | 31.5 | 7.5 | 0.8 |
| SC0007-2R7LR | 16 | 27 | 7.5 | 0.8 |
| SC0008-2R7LR | 16 | 42 | 7.5 | 0.8 |
| SC0009-2R7LR | 18 | 42 | 7.5 | 0.8 |
| SC0010-2R7LR | 18 | 42 | 7.5 | 0.8 |
Specification
| Item | Specification |
| Working Voltage | 2.7VDC |
| Surge Voltage | 2.85VDC |
| Working Temp. Range | -40ºC to 65ºC |
| Capacitance Tolerance | -10% to +40%(25ºC) |
| Temp. Characteristic(-40ºC to 65ºC) | △C≤Initial measured value 30%@25ºC
ESR≤Specified value 200% |
| Life(1000 hours @65ºC,2.7VDC) | △C≤Initial measured value 30%
ESR≤Specified value 200% |
Cycle Life (Cycle between rated voltage and 1/2
rated voltage for 500,000 times | △C≤Initial measured value 30%@25ºC
ESR≤Specified value 200% |
Standard Product
| Part Number | Cap(F) | ESR(mΩ)
(1kHz) | LC(mA)
(RT 72hrs) | Rated
Current(A) | Peak
Current(A) | Mass(g) |
| SC0001-2R7LR | 1 | 220 | 0.008 | 0.35 | 1 | 1 |
| SC0002-2R7LR | 2 | 120 | 0.01 | 0.6 | 2 | 1.2 |
| SC0003-2R7LR | 3.3 | 90 | 0.01 | 0.9 | 3.1 | 1.5 |
| SC0004-2R7LR | 7 | 45 | 0.02 | 1.8 | 6.4 | 2.5 |
| SC0005-2R7LR | 10 | 35 | 0.03 | 2.3 | 8.9 | 3 |
| SC0006-2R7LR | 10 | 35 | 0.03 | 2.3 | 8.9 | 3.5 |
| SC0007-2R7LR | 25 | 20 | 0.07 | 4 | 19.3 | 7.8 |
| SC0008-2R7LR | 25 | 20 | 0.07 | 4 | 19.3 | 7.8 |
| SC0009-2R7LR | 50 | 12 | 0.15 | 6.6 | 35.5 | 13.5 |
| SC0010-2R7LR | 60 | 12 | 0.16 | 6.6 | 38.9 | 14 |
Since 1985, SEMG is one of the leading electronic component manufacturers located in Baoan District, Shenzhen City, China, and has been specializing in designing, researching, developing, manufacturing, exporting and processing professional Aluminum Electrolytic Capacitors, Magnet material, PCBA. Now it's becoming the most reliable and famous supplier in China.
SEMG Electrolytic Capacitors
We offer over 23 series 10 thousand various kinds of capacitors products and monthly output up to 2 millions pieces.
*General Purpose aluminum Electrolytic Capacitors
*Low ESR & High Frequency aluminum Electrolytic Capacitors
*Low Impedance &High Ripple aluminum Electrolytic Capacitors
*Low ESR &Long load life aluminum Electrolytic Capacitors
*High ripple &long load life aluminum Electrolytic Capacitors
*snap-in aluminum Electrolytic Capacitors
*SMD Capacitor
*Solid Capacitors
The capacitors we produced widely used for power supply and LED driver, Ballast, Adaptet, SMPS, Home appliances etc. The annual output is more than 800million electrolytic capacitors a year.
SEMG is a ISO Certificated company, the quality of us had pass, RoHS, Reach, CE etc. And we can design the quality products as the customers needed!
SEMG Smartnoble EMC shielding Material
Smartnoble is a subsidiary company of SEMG, focus on the manufacturing and supplying EMC shielding material with silcone rubber, customized shape, welcome to visit http://www.smartnoble.cn/ for details.
SEMG Printing & Acoustic Fabrics
SEMG provides the high tension and low elongation of polyester mesh, with SGS and MSDS certificates, and applicable to the high precise printing for the industries of printed circuit boards, touch panel, glass and textile, cellphones etc. And also providing the advanced acoustic fabrics, which widely used in the protection of acoustic devices, and perform well to meet customer's demand, with its accurate holes and air current control, and its excellent stability to the different environment.
SEMG PCB Fabrication:
SEMG produces the samples and small volume of High layer and rigid-flex PCB, and big volume of low techology PCB.
1) Manufacturing facilities in China for a total capacity of over 4.0 million FT2/month, building area: 500, 000sq. FT, and typical PCB Equipment includes: Mitsubishi Laser Machines, Horizontal Copper plating, Horizontal Silver plating, Heavy Gold plating, Inner Finger beveling, and Automatic Appearance Inspection, etc.
2) Process Capability: Trace Width 3/3mil for volume production, 2/2mil for prototype, min. Mechanical hole 0.15mm, min. Laser via: 0.1mm.
3) Broad product range with expertise in:
Prototype, medium and high volume production of single-side, 2L, 4L to max. 28L.
Max. HDI capability (4+N+4) PCBs.
High frequency and high performance PCBs
Heavy copper PCBs (up to 12oz inner copper)
Aluminum-based PCBs
4)Certificates: ULNo.: E96016, ISO9000-, ISO/TS16949(Automative),
ISO13485 (Medical) -certified and Bellcore-compliant(Telecom).
5) Global support across different continents.
Other service: R&D of wireless modules
SEMG is focus on the researching and development of wireless modules and products, with WiFi, ZIGBEE, and Blue tooth solutions.
