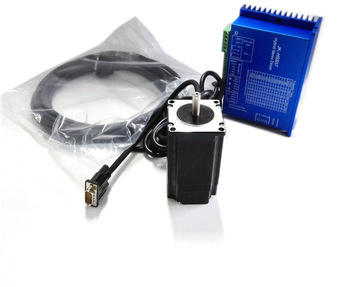

2.8n. M NEMA23 Closed Loop Stepper Motor with Driver

2.8n. M NEMA23 Closed Loop Stepper Motor with Driver
Price: US $ 91.5-107.5/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: T/T,Paypal
Prod Model: 57HS115-4204BFED-01
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage: 3.8V
Resistance: 0.9ohm
Insulation Class: B
Shaft Diameter: 7.5mm
Shaft Length: 21mm
Number Of Stator: Two-Phase
Excitation Mode: HB-Hybrid
Type: Electromechanical
Application: CNC Machine
Operate Mode: Closed Loop
Certification: CE and RoHS
Brand: Jkongmotor

Product Description


NEMA23 closed loop stepper motor kits+3.5m wires for free

Electrical Specification:


Phase

2



Comment

Step angle

1.8

deg

3500mm wires

Voltage

3.8

v

Current

4.2

A

Resistance

0.9

Ω

Inductance

3.8

Mh

Holding torque

28

kg.cm

Insulation class

B



Mass

2

kg



Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 3000 square meters. Now we are already passed RoHS and CE testing.

We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.

We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.

We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor. Spindle motor,

For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.

Competotive price and high quality. Hope can cooperate with you.
