2-Channel Digital to Analog Signal Converter with Modbus RTU
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal |
| Prod Model: |
ISO DA |
| Input: |
RS232 or RS485 Digital Signal |
| Analog Output: |
0-5V, 0-10V, 0-75mv, 4-20mA, 0-20mA, etc |
| Power Supply: |
8-50VDC |
| Precision: |
Better Than 0.2% |
| Isolation: |
3kv Isolation Between Input and Output |
| Support: |
Modbus RTU or Ascii |
| Highlight: |
Programmable Baud Rate, Address, etc |
| Installation: |
35mm DIN Rail-Mounted |
| Size: |
83X51X37mm |
| Output: |
Analog Sensor |
| Material: |
ABS |
Product Description
RS485-RS232 to 4-20mA|0-5V|0-75mV A-D Converter with MODBUS RTU
RS232|RS485 to 4-20mA Converter Features
>>Low cost, small size,
>>RS485/232 interface to 4~20mA analog signal output
>>Analog signal output accuracy>0.2%
>>Can be remotely reconfigured for modules accuracy
>>Signal output/communication interface 3000VDC isolation.
>>Wide power supply range: 8~50VDC
>>High reliability, easy programe, installation.
>>Can programme setting module address, baud rate
>>Support Modbus RTU, ASCII.
RS232|RS485 to 4-20mA Converter Applications
>>Intelligent building control, security and engineering applications
>>RS485/232 industrial automation control system
>>Industrial fields signal isolation and long terms transmission
>>Debugging and control of equipment operation
>>4~20mA signal output
>>Medical machine monitoring
>>Sensor signal to restore the long range transmission and signal
>>Industrial field data for a given actuatorRS232|RS485 to 4-20mA Converter Product Overview
ISODA Series RS232|RS485 to 4-20mA Converters can be applied to RS232/RS485 bus industrial Automation control systems, 4~20mA, 0~5V, 0~10V and other standard signal output, used to control The implementation of industrial field devices, control devices and display devices, etc. And so on.
ISODA series RS232-RS485 to 4-20mA A-D Converters are based on single chip of intelligent monitoring and control systems, All the user to set the calibration value, address, baud rate, data format, checksum status and other Configuration information is stored in nonvolatile memory EEPROM inside.RS232|RS485 to 4-20mA Converter Model Selection
RS232|RS485 to 4-20mA Converter Wiring Diagram

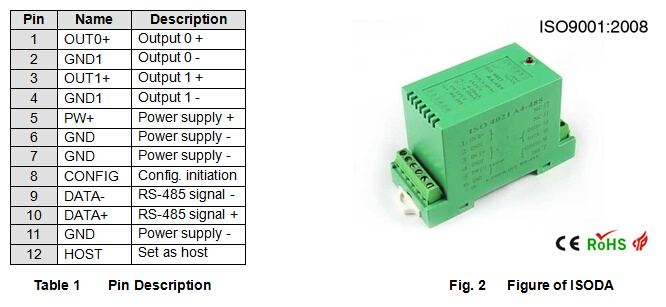

RS232|RS485 to 4-20mA Converter Terminal Definition
Note: Copyright reserved by Sunyuan Technology. Please enquire us for detailed specification, thank you!
