| Prod Model: |
JH-RX01-TX41 |
| Product Name: |
Remote Control Receiver |
| Frequency: |
315MHz/433.92MHz or Customized |
| Encoder Model: |
Work with Any Decode Remote Control |
| Mode: |
Bistable and Monostable Is Optional |
| Memory: |
120 Codes / Channel |
| Channel: |
2 Channels |
| Modulation Type: |
Ask/Fsk |
| Tech Parameter: |
Saw |
| Function: |
Household Appliances, Automatic Doors, Industrial |
| Usage: |
Receive Signal From Remote Control |
| Application: |
Remote Control Receiver |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
50-100m |
| Material: |
Plastic |
| Voltage: |
12V Remote Control Receiver |
| Battery Type: |
27A Remote Control Receiver |
Product Description

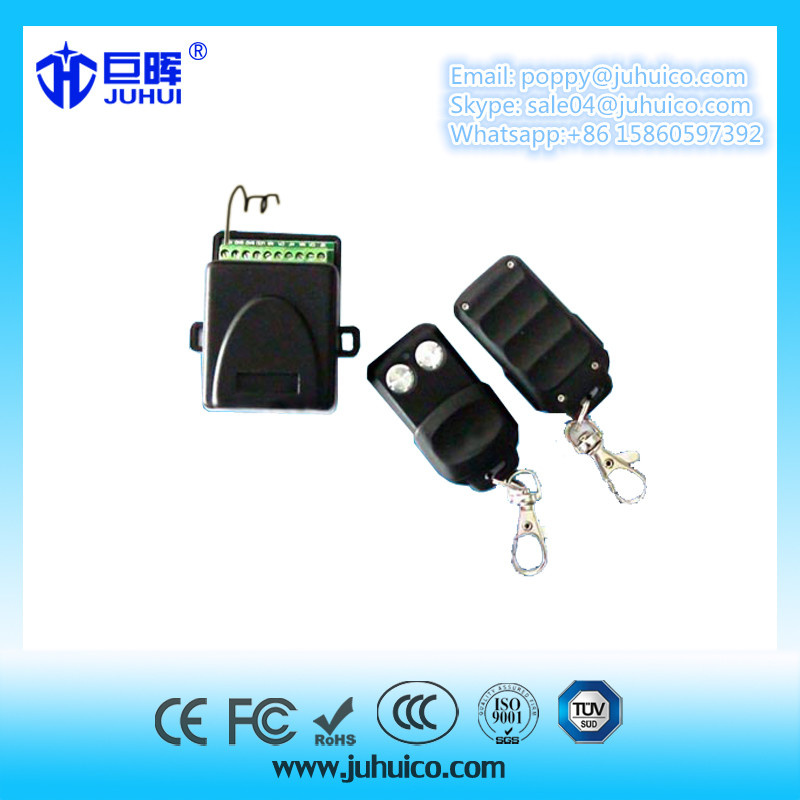

2 Channels Universal Receiver Work with Fixed Learning and Rolling Remote Control Transmitter
Specification:Technical parameters: | Momery code | 480 codes for 2 channels |
| Decode | All decodes |
| Monostable mode and biastable mode | You can choose the mode you like when you learning code with remote control |
| Channel | 1.2 channel as your request |
| Receiver moule | Superheterodyne receiver moule |
| Output | +12V output. -12Voutput. Dry connect output |
| voltage | AC/DC12-24V |
Feature
1. You can choose bistable (continuous ouput) or monostable( momentary output) directly when learning code with remote control.
2. The receiver is use-friendly. We can produce them with different code remote control as your request the receiver is widely used as motorcycle alarm receiver, electric vehicle alarm receiver, sliding gate receiver, auto gate receiver, sliding door receiver, rolling door receiver, ceiling fan receiver l etc1. LEARNING CODE:Press S1 (1S at least), LED will lights (1S) off( 1S) lights again, now press any button of the remote, receiver LED will go off if the code is learnt. Then release the button of the remote. If failed learn code with remote control. LED will light for 10s and exit learning status.
Each channel can learn 140 codes.
It supports all the codes including fixed code and rolling code2. How change monostable/ bistable mode:Press S1 1 time, LED flashes 1 time and the first channel (monostable) activates.
Press S1 2 times, LED flashes 2 times and the 2ND channel (monostable) activates.
Press S1 three times, LED flashes three times and the first channel (bistable) activates.
Press S1 four times, LED flashes four times and the 2ND channel (bistable) activates.3. DELETING FUNCTION:Delete one code: Press S2 for 1S and release, LED lights, press the button that you want to delete the code. Then it's ok.
Delete all the codes: Long press S2 for 8 Ss, LED lights, release your hand and LED goes off, now all the codes are deleted.4. NOTICE:Since the data of rolling code is relatively bigger, it'll take a little more time to operate remote with rolling code than that with fixed code.
If you learning same code for more than one time, only the last code is memorized.Packaging &Shipping: | Package | 500PCS/Ctn |
| Ctn Dimension | 53.5*22.5*35 cm |
| Shipment | by air, by sea, DHL, TNT etc. |
Transaction Terms: | Payment terms | Advanced T/T:30% as deposit,the balance before shipment Paypal, Western union. |
| Trade terms | FOB or EXW |
| Lead time | 1-5 days for samples 15-20 days for order |
Company Information: Quanzhou Juhui Electronic Co., Ltd is a high-tech company that specializes in designing, manufacturing and selling Alarm system (motorcycle alarm system, electric vehicles), motorcycle power lock, wireless RF receiver (remote controller), RF Remote control ( key fob and transmitter), RF module (wireless transmitter Module and Receiver Module), Remote Control Duplicator( face to face copying duplicator and machine copy duplicator). We have been manufacturing electronic product for 10 years . Our professional R&D staff can meet your different request . We hope to promote mutual benefit and build long term business with customers all over the world by joint efforts.
FAQ:1.What frequency do you need?
433.92 Mhz or 315 Mhz
2.What encode do you need?
rolling code : HCS301, HCS300, HCS200 etc.
learning code: PT2240, EV1527 etc.
fixed code :SC2260 , SC2262, etc.
3. How can i pay for products?
Payment: T/T ,Paypal ,Western Union.
4. Do your products carry warranty?
Yes, 6 month or more and permanent service.
5. How do i purchase more than 1 remote?
Please contact with me,we offer samples to test before ordering.
