| Prod Model: |
JH-RX01-A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Decode: |
Work with Any Decode Remote Control |
| Frequency: |
315MHz/433.92MHz or Customized |
| MOQ: |
300PCS |
| Lead Time: |
2-5 Days for Samples, 15-20 Days for Order |
| Mode: |
Bistable and Monostable Is Optional |
| Channel: |
2 Channels |
| Memory: |
120 Codes / Channel |
| Payment Term: |
30% in Advance, 70% Before Shipment |
| Trade Term: |
FOB or EXW |
| Communications Mode: |
Ask |
| Application: |
Industrial Machinery |
| Signal Transmission: |
RF Remote Control |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
>100m |
| Voltage: |
12V |
| Material: |
Plastic |
| Battery Type: |
AAA Battery |
| Type: |
Wireless |
Product Description

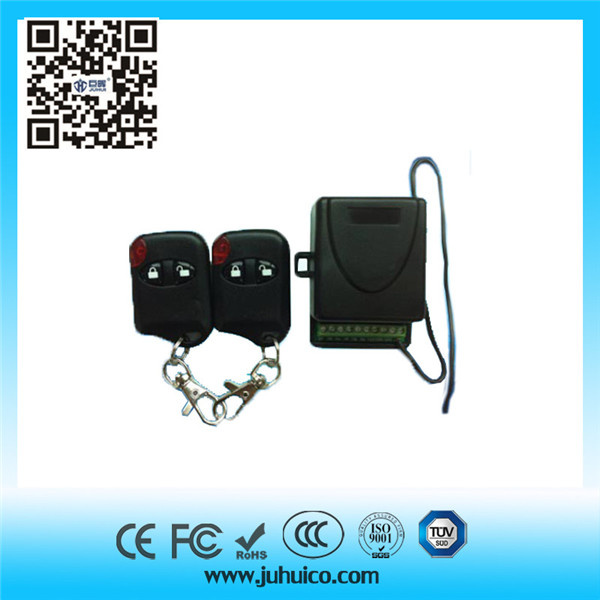

INSTRUCTION FOR DOOR OPENER RECEIVER (JH-RX01-A)Application:1. You can choose bistable (continuous ouput) or monostable( momentary output) directly when learning code with remote control.
2. The receiver is use-friendly. We can produce them with different code remote control as your request the receiver is widely used as motorcycle alarm receiver, electric vehicle alarm receiver, sliding gate receiver, auto gate receiver, sliding door receiver, rolling door receiver, ceiling fan receiver l etc
Technical parameters:Memory code: 480 codes for 2 channels
Decode: Any code
Monostable mode and biastable mode: You can choose mode you like when learning code with remote control
Channel: 1.2 channel as your request
Receiver moule: Superheterodyne receiver moule
Output: +12V output. -12Voutput. Dry connect output
Operation instruction1. Learning code:Press S1 (1S at least), LED will lights (1S) off( 1S) lights again, now press any button of the remote, receiver LED will go off if the code is learnt. Then release the button of the remote. If failed learn code with remote control. LED will light for 10s and exit learning status.
Each channel can learn 140 codes.
It supports all the codes including fixed code and rolling code
2. How change monostable/ bistable mode:Press S1 1 time, LED flashes 1 time and the first channel (monostable) activates.
Press S1 2 times, LED flashes 2 times and the 2ND channel (monostable) activates.
Press S1 three times, LED flashes three times and the first channel (bistable) activates.
Press S1 four times, LED flashes four times and the 2ND channel (bistable) activates.
3. Deleting function:Delete one code: Press S2 for 1S and release, LED lights, press the button that you want to delete the code. Then it's ok.
Delete all the codes: Long press S2 for 8 Ss, LED lights, release your hand and LED goes off, now all the codes are deleted.
4. Notice;Since the data of rolling code is relatively bigger, it'll take a little more time to operate remote with rolling code than that with fixed code.
If you learning same code for more than one time, only the last code is memorized
Shipment:by air, by sea, DHL, TNT etc.
Guarantee:The quality problem from us, and we will bear the responsibility. we will make new order or solve the problem by negotiation.Company backgroundOur factory covers an area of approximately 2000 square meters, where for the past 10 years we have been manufacturing electronic products, mainly remote control, receiver, door opener system, motorcycle alarm and remote control duplicator etc. Our company professional R&D staff can meet your different request. We have advanced equipment for production, such as SMT, frequency machine, logo engraving machine laser etc.
| Model No. | JH-RX01-A |
| Brand | JUHUI or CUSTOMIZTED |
| Decode | Work with any decode remote control |
| Frequency | 315MHZ, 433.92MHZ or customized |
| Modulation type | FSK/ASK |
| Distance | 80m (open space) |
| Tech. parameter | Terminal Blocks, relays |
| Memory | 120 codes/ channel |
| Channel | 2 channels |
| Working voltage | 12-24V DC/AC |
| Working current | 10-60mA |
| Output | Dry connect output |
| Working mode | Bistable and monostable working mode is optional |
| Learning way | Every channel learning code with remote control individually |
| Package | 50pcs/CTN |
| MOQ: | 200pcs |
| Supply ability | 100.000pcs/Month |
| Lead time | 1-5 days for samples, 20-30 days for order |
| place of origin | China |
| Application | 1.motorcycle alarm remote controller
2.electric vehicle alarm remote controller
3.sliding gate remote control, auto gate remote controller, sliding door remote controller, rolling door remote controller
4.ceiling fan remote controller
5.. access system
6..wherever remote controller needed |
| | |
Quanzhou Juhui Electronic Co., Ltd...Is a high-tech company that specializes in designing, manufacturing and selling Alarm system (motorcycle alarm system, electric vehicles), motorcycle power lock, wireless RF receiver (remote controller), RF Remote control ( keyfob and transmitter), RF module (wireless transmitter Module and Receiver Module), Remote Control Duplicator( face to face copying duplicator and machine copy duplicator),
Our alarm systems are widely used in every brand motorcycle and electric vehicles. There are many alarm models in different prices for your choices. Our high quality RF wireless remote control, remote control duplicator and receiver are widely used as advanced accessory in garage door, rolling door, sliding gate, motorcycle alarm etc.
Our company professional R&D staff can meet your different request. We provide different kinds of products with high quality and favorable price. We are still developing and designing new products according to market demand.
We stick to management principle: Quality first, service first, continuous improvement and innovation. Our quality objective is "zero defect, zero complaint". We hope to promote mutual benefit and build long term business with customers all over the world by joint efforts.
