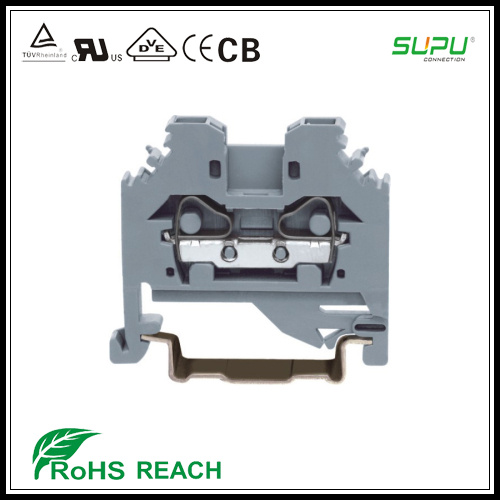

2 Conductor Terminal Blocks of Side Entry Side Marker
| Price: |
US $ 0.1-1.99/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
200/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
225915 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Lead Time: |
7 -10 Days |
| Scoss Section: |
2.5/4.0/6.0/10.0/16.0 |
| MOQ: |
200PCS |
| Application: |
Railway Vehicle |
| Environmental Protection: |
Resistance to Environmental |
| Shape: |
Rectangle |
| Connection Mode: |
Spring Cage |
| Contact Termination Form: |
Spring Cage |
| Type: |
Spring Cage |
Product Description
Specifications
WAGO 279 2 CONDUCTOR FEED THROUGH SCREWLESS SPRING CRIMP TERMINAL BLOCK CLIP CONNECTOR
1)spring clipping;
2)Operate easily;
Product Description
Name: 2 Conductor Through Terminal Block Of Entry Side Marker
| 2 Conductor Through Terminal Blocks Of Side Entry Side Marker |
| Products Series | Dimen T*W*H | IEC Rated Voltage/current/Cross-section | UL Rated Voltage/current/Cross-section | Strip Length mm | Screwdriver Size | Pack/Unit pcs | Terminal Block Order No | Gray Color Replacement Of Wago Item No. |
| Voltage V | Current A | Cross Section mm | Voltage V | Current A | Cross Section AWG | Gray | Orange | Red | Blue | Yellow | Green-Yellow |
| 225 | 5*42.5*38 | 800 | 24 | 0.2-2.5 | 600 | 20 | 28-14 | 8_9 | 3.5*0.5 | 100 | 225915 | | | 225916 | | 225917 | 280-101 |
| 204 | 6*42.5*40 | 800 | 32 | 0.2-4.0 | 600 | 20 | 28-12 | 9_10 | 3.5*0.5 | 50 | 204901 | | | 204902 | | 204907 | 281-101 |
| 206 | 8*46.5*44.5 | 800 | 41 | 0.2-6.0 | 600 | 30 | 28-10 | 12_13 | 5.5*0.8 | 50 | 206901 | | | 206902 | | 206907 | 282-101 |
| 210 | 10*52*49 | 800 | 57 | 0.2-10.0 | 600 | 50 | 28-8 | 12_13 | 5.5*0.8 | 25 | 210901 | | | 210902 | | 210907 | 284-101 |
| 216 | 12*58*53 | 800 | 76 | 0.2-16.0 | 600 | 65 | 28-6 | 16_17 | 5.5*0.8 | 20 | 216901 | | | 216902 | | 216907 | 283-101 |
Compatible with Wago Terminals, while with much competitive price. Welcome for inquiry!
Functions:
1)Operate easily, only need a screw driver.
2) Print marker card as customer's requests.
3)Mounted on SP35 standard rail (steel or aluminum)
Our Services
Sales points/ Focus
*Quality always comes first
*Reasonable Prices
*OEM service provided
*Responsible after-sales service
*Aiming to get repeat orders from 80%customer after the trial orders
*Making progress with customers together
QC Team
A QC team with more than 20 professional and technical personnel, who ensure 100% products checking.
Material: Strictly control of material using, meet international requested standards.
Semi-finished products inspection: Product inspection before 100% finished. Such as Visual Inspection, Leak Testing, Comprehensive Safty Test and so on.
Production line test: With work team or data engineer who will inspect machines and lines at fixed period.
Finished Product Inspection: Quality and property test before products are packed and loaded.
Contact
We will reply your email or fax within 24 hours
You can call us at any time if there is any questions or requirements.
Supu terminal blocks can accurately substitute wago terminal blocks , including the measurement and quality. Free samples are available for your reference.
Ningbo SUPU Electronics Co., Ltd., was founded to focus on R & D, design, production, sales and service, We are excellent global supplier of integrated electrical connector products. Hangzhou Bay New factory construction has an area of 35, 000 square meters, planning an annual output of mold 500 sets, and annual production capacity reaches 320 million.
Our products include rail-mounted spring terminal blocks, rail-mounted screw terminals, miniature spring terminal blocks, multi usage connector with spring cage clamp (MCS connector), PCB terminal block, piercing connectors, series B connectors, transformer connectors, push wire connectors, green pluggable terminal blocks, especially the spring terminal blocks lead the domestic market share in the terminal block field. Products have been approved by CQC, UL, VDE, TUV, CE, RoHS quality certification, and product quality are widely recognized and praised.
Our products have been widely used in elevators, power control systems, rail transportation, automation and control, wind energy, solar energy, lighting, shipbuilding, instrumentation, machinery manufacturing, building wiring and other fields. Company adhere the forward-looking product innovation and technology, have invested in technology research and development center. We have advanced product testing and inspection center, conduct a comprehensive inspection and control for product safety, reliability, applicability, we can meet and exceed our customers' quality requirements.
Except providing standard products, We also support ODM / OEM service for customers, and effectively solve customer electrical connectors with personalized solutions. We have a close cooperation with Otis Group, Schindler Group, Mitsubishi Group, Schneider Electric, Shanghai Electric, Hyundai Heavy Industries, Johnson Controls, Chint Electric, Daquan Group and other world's leading enterprises, The sales network is all over the world.
'Built platform, cite talent, increase strength, create brand' is our business philosophy. From geographical to national, from national to international, SUPU, with its focused power, professional road to connect the world, is also making great strides to be the leader in global electrical connector field.
SUPU, makes the world connected!
