| Prod Model: |
H03VV-F |
| Voltage: |
300/500V 300/300V |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
RoHS |
| Range Of Application: |
Household |
| Brand: |
Sansen |
Product Description
SPECIFICATION:2core 3ore 4core for reference
Product Description

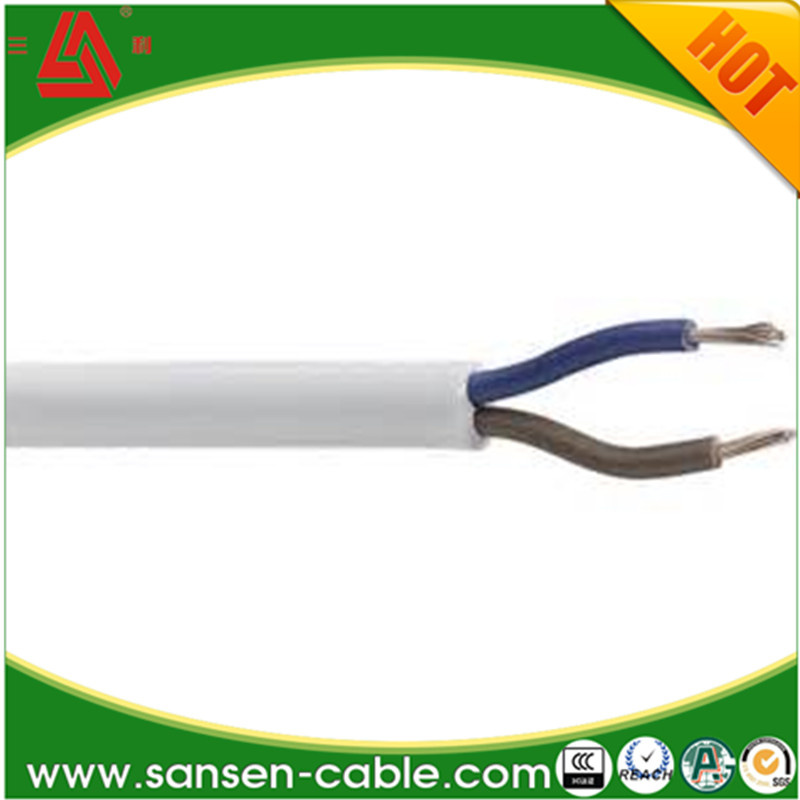

PVC Insulated Cable RVV 2 cores 2.5mm Flexible Copper Cable
Synthetic data of 60227IEC53(RVV)model 300/500V flexible wire with ordinary PVC sheath
Core number*nominal cross section
mm2 | Conductor type | Rated value insulator thickness
mm | Rated value of sheath thickness
mm | Upper Value of average overall diameter
mm | Minimum insulation resistance under temperature 700C
MΩ.km | |
| |
2×0.75
2×1
2×1.5
2×2.5
*2×4
*2×6
3×0.75
3×1
3×1.5
3×2.5
*3×4
*3×6
4×0.75
4×1
4×1.5
4×2.5
*4×4
*4×6
5×0.75
5×1
5×1.5
5×2.5
*5×4
*5×6
*6×0.75
*6×1
*6×1.5
*6×2.5
*6×4
*6×6
*7×0.75
*7×1
*7×1.5
*7×2.5
*7×4
*7×6
*10×0.75
*10×1
*10×1.5
*10×2.5
*10×4
*10×6
*12×0.75
*12×1
*12×1.5
*12×2.5
*12×4
*12×6
*14×0.75
*14×1
*14×1.5
*14×2.5
*14×4
*14×6
*16×0.75
*16×1
*16×1.5
*16×2.5
*16×4
*16×6
*19×0.75
*19×1
*19×1.5
*19×2.5
*19×4
*19×6
*24×0.75
*24×1
*24×1.5
*24×2.5
*24×4
*24×6 | 5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5 | 0.6
0.6
0.7
0.8
0.8
0.8
0.6
0.6
0.7
0.8
0.8
0.8
0.6
0.6
0.7
0.8
0.8
0.8
0.6
0.6
0.7
0.8
0.8
0.8
0.6
0.6
0.7
0.8
0.8
0.8
0.6
0.6
0.7
0.8
0.8
0.8
0.6
0.6
0.7
0.8
0.8
0.8
0.6
0.6
0.7
0.8
0.8
0.8
0.6
0.6
0.7
0.8
0.8
0.8
0.6
0.6
0.7
0.8
0.8
0.8
0.6
0.6
0.7
0.8
0.8
0.8
0.6
0.6
0.7
0.8
0.8
0.8 | 0.8
0.8
0.8
1.0
1.1
1.2
0.8
0.8
0.9
1.1
1.1
1.2
0.8
0.9
1.0
1.1
1.1
1.2
0.9
0.9
1.1
1.2
1.2
1.3
0.9
0.9
1.0
1.1
1.2
1.4
0.9
0.9
1.0
1.1
1.2
1.4
0.9
0.9
1.0
1.1
1.2
1.4
1.1
1.1
1.2
1.4
1.5
1.7
1.1
1.2
1.2
1.4
1.5
1.7
1.2
1.2
1.4
1.7
1.7
1.7
1.5
1.5
1.7
1.7
1.7
1.8
1.2
1.3
1.4
1.5
1.7
1.7 | 7.6
8.0
9.0
11.0
12.4
14.6
8.0
8.4
9.8
12.0
13.2
15.6
8.6
9.4
11.0
13.0
14.4
17.1
9.6
10.0
12.0
14.0
15.6
18.5
10.2
10.7
12.5
14.9
16.9
20.3
10.4
10.9
12.5
15.0
17.1
20.5
13.5
14.2
16.3
19.3
22.1
16.5
14.0
14.9
16.9
19.9
22.8
27.4
14.8
15.8
18.1
21.1
24.3
28.8
15.3
16.3
19.1
22.1
25.5
30.2
16.3
17.1
19.9
23.7
26.9
31.9
19.2
20.2
23.5
27.3
31.0
37.3 | 0.011
0.010
0.010
0.009
0.007
0.006
0.011
0.010
0.010
0.009
0.007
0.006
0.011
0.010
0.010
0.009
0.007
0.006
0.011
0.010
0.010
0.009
0.007
0.006
0.011
0.010
0.010
0.009
0.007
0.006
0.011
0.010
0.010
0.009
0.007
0.006
0.011
0.010
0.010
0.009
0.007
0.006
0.011
0.010
0.010
0.009
0.007
0.006
0.011
0.010
0.010
0.009
0.007
0.006
0.011
0.010
0.010
0.009
0.007
0.006
0.011
0.010
0.010
0.009
0.007
0.006
0.011
0.010
0.010
0.009
0.007
0.006 | |
Note: 1.Conduct structure:type 5 is adopted according to GB/T3956.
2.Insulator:PVC/D type PVC mixture is adopted as insulating material
3.Sheath :PVC/ST5 model PVC mixture should be adopted.
4.The average overall diameter should be within the limitation of the table.
Application:Insualted flexible cables are suitable for use in connecting portable devices of general destional such as household electric equipment of general use as well as in wet room,in average work condition e.g. .of washing machine,fridge and kitchen and heat appliances on condition that there is no danger of contact with hot elements.
Packing:Ring of length of 100 meters and orther forms according to customer's requests.
FAQ:
Q1. What kind of products can your company supply?
A: We specialize in supplying network cable, coaxial cable, power cable ,control cable , telephone cable, speaker cable and ect.
Q2. What's your MOQ?
A: The MOQ of long meter cable is 50 km, or we can negociate.
Q3. What's your delivery time?
A: Our delivery time is about 15-20 days after comfriming the deposite, it is based on the quantity of the order.
Q4. What are your payment terms?
A: Normally, we accept T/T in advance, as for other payment term, we can negociate with you.
Q5. What's your trade term ?
A: We can accept FOB, CIF, EXW term.
Q6. What's your conventional packing ?
A: 100m/plastic or wooden drum, 305m/wooden drum or color box. However, we can produce according your demand.
Q7. Can your factory customize cables based on clients' samples or data sheet ?
A: Yes, we can.
Q8. Can you offer me a free sample?
A: Yes, we do, that is a start of business I think, and you will only pay the cost of delivery, which we will return it to you when you put the order.
Jason Zhang | Sales Manager
Huzhou Sansen Cable Co.,Ltd.
Tel: + 86-572-8352155
Fax: +86-572-8182173
Mob: +86-15088322304
Gaolin Road, Xinshi Town, Deqing County, Zhejiang Province, China
http://www.sansen-cable.com
We are specialized in manufacturing of cables for more than 20 years. Can product Building cable, Electrical equipment cable, Automobile cable, Control cable, Coaxial cable, Network communication cable, Audio cable, Monitor cable and the like. We also offer OEM and ODM services.

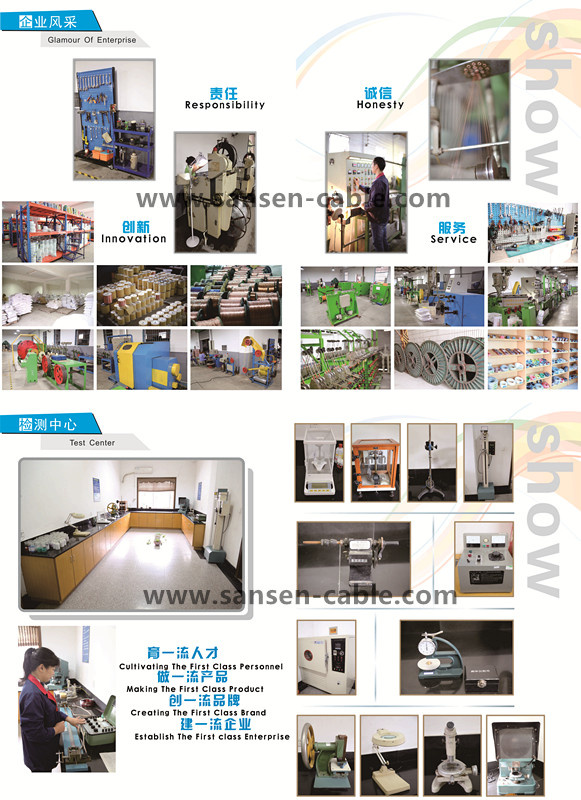

Located in Huzhou, Zhejiang Province, where is between Shanghai and Hangzhou, we enjoy convenient transportation, thus we can ship goods in Shanghai Port as well as Ningbo Port. Our factory totally covers an area of 3, 000 square meters. High skilled staffs and technical engineers have been dedicated to cable techniques since our company was founded.
