2 Core 0.75mm2 PVC Insulation and Sheathed Flat Flexible Cable Wire
| Price: |
US $ 0.2/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,Western Union,Money Gram |
| Prod Model: |
Flexible Cable Wire |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
CE |
| Brand: |
Rneda |
Product Description

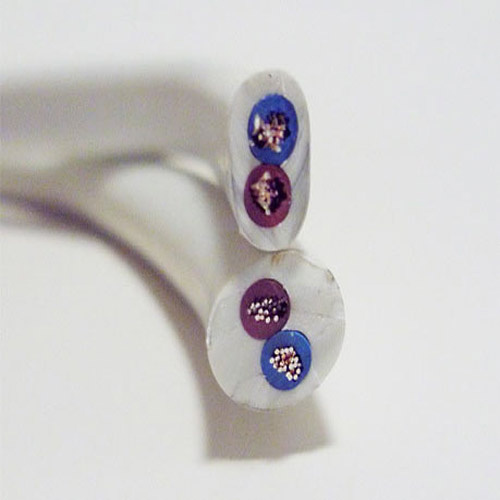

PVC insulated PVC sheathed flat wire
Solid or stranded, Pure copper or pure aluminum conductor ;
Double PVC insulation;
core number:2/3 core
sectional area:0.75mm,1.0mm,1.5mm,2.5mm,4mm,6mm,10mm.
Passed the UL VW-1 & CSA FT1 vertical flame test;
Uniform thickness of wire to ensure easy stripping and cutting;
Resistant to scids,oils,alkalies,moisture and fungus;
Rated voltage:under or up to 450/750V;
Standards Implemented: ISO9001,ISO14004,OHSASI8000,UKAS,FMRC,KEMA,TUV,CE,CESI,IEC AND SO ON.
PVC insulated PVC sheathed flat wire
Type | Name | Properties |
| BVVB | Copper-core PVC insulated PVC sheathed flat wire | In normal case, max. temperature of conductor shall be 70ºC |
| BLVVB | Aluminum-core PVC insulated PVC sheathed flat wire | In normal case, max. temperature of conductor shall be 70ºC |
technical data (BVVB/BLVVB)Core number & sectional area,
mm | Conductor
structure,
Nr./mm | Stipulated
insulation
thickness,
mm | Stipulated
sheath
thickness, mm | Average external size, mm | 20°C , DC, resistance ≤Ω/km |
| Min. | Max. | Copper-core | Aluminum-core |
2×0.75
2×1.0
2×1.5
2×2.5
2×4
2×4
2×6
2×6
2×10
3×0.75
3×1.0
3×1.5
3×2.5
3×4
3×4
3×6
3×6
3×10 | 1/0.97
1/1.13
1/1.38
1/1.78
1/2.25
7/0.85
1/2.78
7/1.04
7/1.35
1/0.97
1/1.13
1/1.38
1/1.78
1/2.25
7/0.85
1/2.78
7/1.04
7/1.35 | 0.6
0.6
0.7
0.8
0.8
0.8
0.8
0.8
1.0
0.6
0.6
0.7
0.8
0.8
0.8
0.8
0.8
1.0 | 0.9
0.9
0.9
1.0
1.0
1.0
1.1
1.1
1.2
0.9
0.9
0.9
1.0
1.1
1.1
1.1
1.1
1.2 | 3.8×5.9
3.9×6.1
4.4×7.0
5.1×8.4
5.6×9.2
5.7×9.5
6.2×10.4
6.4×10.8
7.9×13.4
3.8×7.9
3.9×8.4
4.4×9.6
5.1×11.6
5.8×13.1
5.9×13.5
6.2×14.5
6.4×15.1
7.9×19.0 | 4.6×7.1
4.8×7.4
5.3×8.5
6.2×10.1
6.7×11.1
6.9×11.5
7.5×12.5
7.8×13.0
9.5×16.2
4.6×9.6
4.8×10.1
5.3×11.7
6.2×14.0
7.0×15.8
7.1×16.3
7.5×17.5
7.8×18.2
9.5×23.0 | 24.5
18.1
12.1
7.41
4.61
4.61
3.08
3.08
1.83
24.5
18.1
12.1
7.41
4.61
4.61
3.08
3.08
1.83 | -
-
-
12.1
7.41
-
4.61
-
3.08
-
-
-
12.1
7.41
-
4.61
-
3.08 |
Note
1) We can provide corresponding flame-retardant and fire-resistant products for all the above products upon user's requirements.
2)The length of single cable delivered shall not be less than 100m. According to the agreement reached between two parties, it is allowed to deliver the cables of any length.COMPANY INFORMATION
Hebei Huatong Wires and Cables Group Co., Ltd.It was established in 1993.
Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220,000 square meters,owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billionYuan.Now there are more than 1000 employers in our company, among which more than 150 are technicians.TWO FACTORIES IN CHINA ! ONE FACTORY IN Tanzania!
Yearly Export Amount 200Millon
Our Service
1.24years production experience and 15 years export experience .
2.Products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL etc
3.OEM service available based on official & legal authorization.
4.Strict quality control system.
5.Rapid delivery and feedback Faster lead time than our competitors.
6.Excellent quality with reasonable price.
7. Strong technical support (technical data, drawing, etc.)
8.Professional teamwork service for you actively.
9.Stock available, Free sample is available.
FAQ
1).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgentto get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account or prepay us if you do not have an account.
(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220, 000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billion Chinese Yuan. Now there are more than 800 employers in our company, among which more than 150 are technicians. With the continuous efforts from all the employers, Hebei Huatong Wires and Cables Group Co., Ltd has realized great development to become a modern enterprise and one of the comprehensive, large-scale enterprises in domestic wire and cable industry. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. We are JV with Furukawa(Japanese company) for rubber serial cable (minding cables, welding cables. Submersible oil pump cables, . )and also JV with Riken(Japanese company) for elevator cables. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria, South Africa, Congo, Middle East and Southeast Asia countries and so on.
Products: Power Cable, Rubber Cable, UL standard building wire cable
Certificates:
Certificate of UL. CE, KEMA, TUV, Bureau Veritas, Lloyd, IEC, GL, SA, NK, KR and "National Industrial Production License", "Certificate of Recommended Enterprises and Products for National Grid", "Adopting International Standard Certificate", and "High-Tech Enterprise Certificate", "Certificate of High Quality Products", "Certificate of Scientific and Technological Achievements", "Qualified Supplier Certificate", "China Classification Society Certificate of Works Approval", "Det Norske Veritas Type Approval Certificate", "Railway Product Certificate", "Safety Certificate of Approval for Mining Products", "National Mandatory Product Certification", "Certificate for China Compulsary Products Certification" and "Practical New-Type Patent Certificate
