| Prod Model: |
2 Core Indoor Optic Fiber Cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Corning Figure 8 Optical Fiber Cable: |
Indoor Optical Fiber Cable |
| Outdoor Fiber Optical Cable: |
ADSS Fiber Optical Cable |
| FTTH Optical Fiber Cable: |
Gyxtc8y Fiber Optical Cable |
| Gyxtc8s Fiber Optical Cable: |
Fiber Optical Cabo |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Connection Structure: |
SC |
| Certification: |
ISO9001 |
Product Description
Indoor FTTH Optic Fiber Cable
Indoor Optic Fiber Cable
Cabo de fibra optica, Cavo in fibra ottica, Cable a fibres optique
Main Type:1. GYXTW 2. GYTA pipe 3. GYTS universal 4. GYTY53 aerial 5. GYTA53 direct-burial 6. GYFTY Non-metallic
7. GJFJV Indoor 8. GYDGA ribbon slotted core
9. GYDTA(s) layer-stranded ribbon 10. GYDXTW tube ribbon 11. ADSS 12. GYXTC8Y 13. FTTH 14. GYXTC8S
FTTH Optical Fiber Cable Application
Local Area Networks(LANS),Data processing networks,Instrument,Premise installations.
Specification
Mode | SM | MM |
Polish | UPC | PC |
Insertion Loss | Typical ≤0.2dB Maximum ≤0.3dB | ≤0.25dB |
Return Loss | ≥50dB | ≥35dB |
Interchangeability | ≤0.2dB |
Repeatability | ≤0.1dB |
Durability | ≤0.2dB (1000 times) |
Vibration | ≤0.2dB (550Hz 1.5mm) |
Tensile Strength | > 10kg |
Temperature | ≤0.2dB (-40+85 sustain 100 hours) |
Humidity | ≤0.2dB (+25+65 93 R.H.100 hours) |
Ordering option
Boot (cable size) | Boot Color | Fiber Type | Cable number | Length |
0.9mm 2.0mm 3.0mm | Black Green Brown | 9/125um SM 50/125um MM 62.5/125um MM OM3 OM4 | Simplex Duplex Multi-fiber | Customized |
Cable dimension
Fiber Core | Outer size max, mm | Max. N.W.,kg/km |
1 | 2.5mm x 5.5mm (± 0.2mm) | 28 |
2 | 2.5mm x 5.5mm (± 0.2mm) | 28 |
4 | 2.5mm x 6.5mm (± 0.2mm) | 32 |

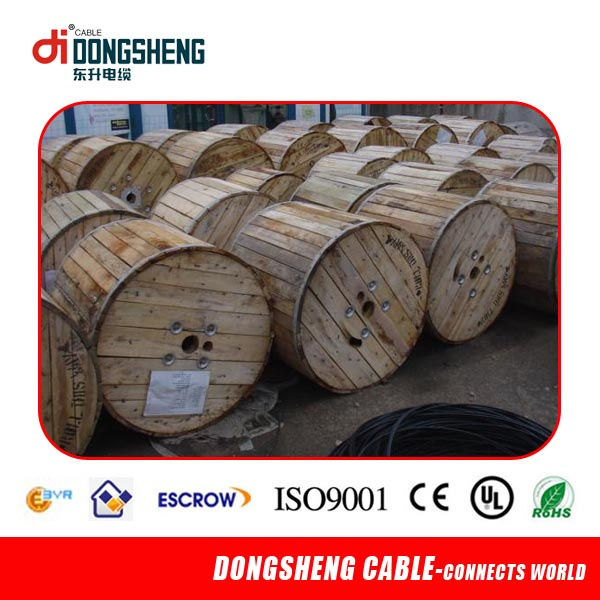

Packing: 2000m/wooden drum or 3000m/wooden drum, Customer's requirement also be welcom
FTTH Optical Fiber Cable Application
Local Area Networks(LANS),Data processing networks,Instrument,Premise installations.
Specification
Mode | SM | MM |
Polish | UPC | PC |
Insertion Loss | Typical ≤0.2dB Maximum ≤0.3dB | ≤0.25dB |
Return Loss | ≥50dB | ≥35dB |
Interchangeability | ≤0.2dB |
Repeatability | ≤0.1dB |
Durability | ≤0.2dB (1000 times) |
Vibration | ≤0.2dB (550Hz 1.5mm) |
Tensile Strength | > 10kg |
Temperature | ≤0.2dB (-40+85 sustain 100 hours) |
Humidity | ≤0.2dB (+25+65 93 R.H.100 hours) |
Ordering option
Boot (cable size) | Boot Color | Fiber Type | Cable number | Length |
0.9mm 2.0mm 3.0mm | Black Green Brown | 9/125um SM 50/125um MM 62.5/125um MM OM3 OM4 | Simplex Duplex Multi-fiber | Customized |
Cable dimension
Fiber Core | Outer size max, mm | Max. N.W.,kg/km |
1 | 2.5mm x 5.5mm (± 0.2mm) | 28 |
2 | 2.5mm x 5.5mm (± 0.2mm) | 28 |
4 | 2.5mm x 6.5mm (± 0.2mm) | 32 |

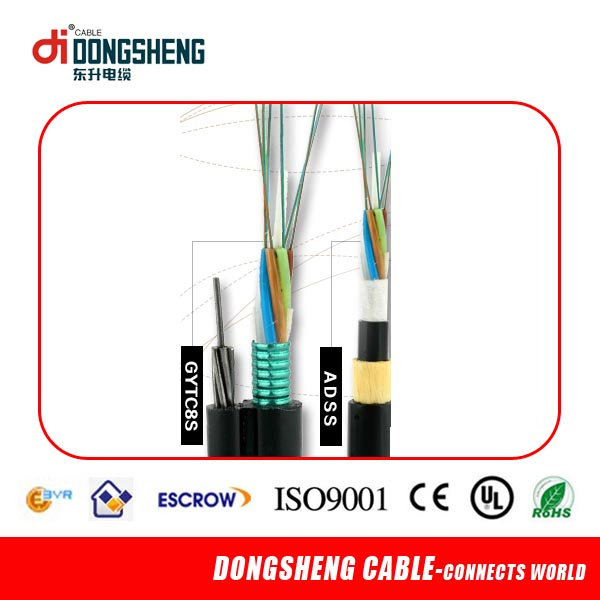

Cable Photo:
Packing: 2000m/wooden drum or 3000m/wooden drum, Customer's requirement also be welcomed
