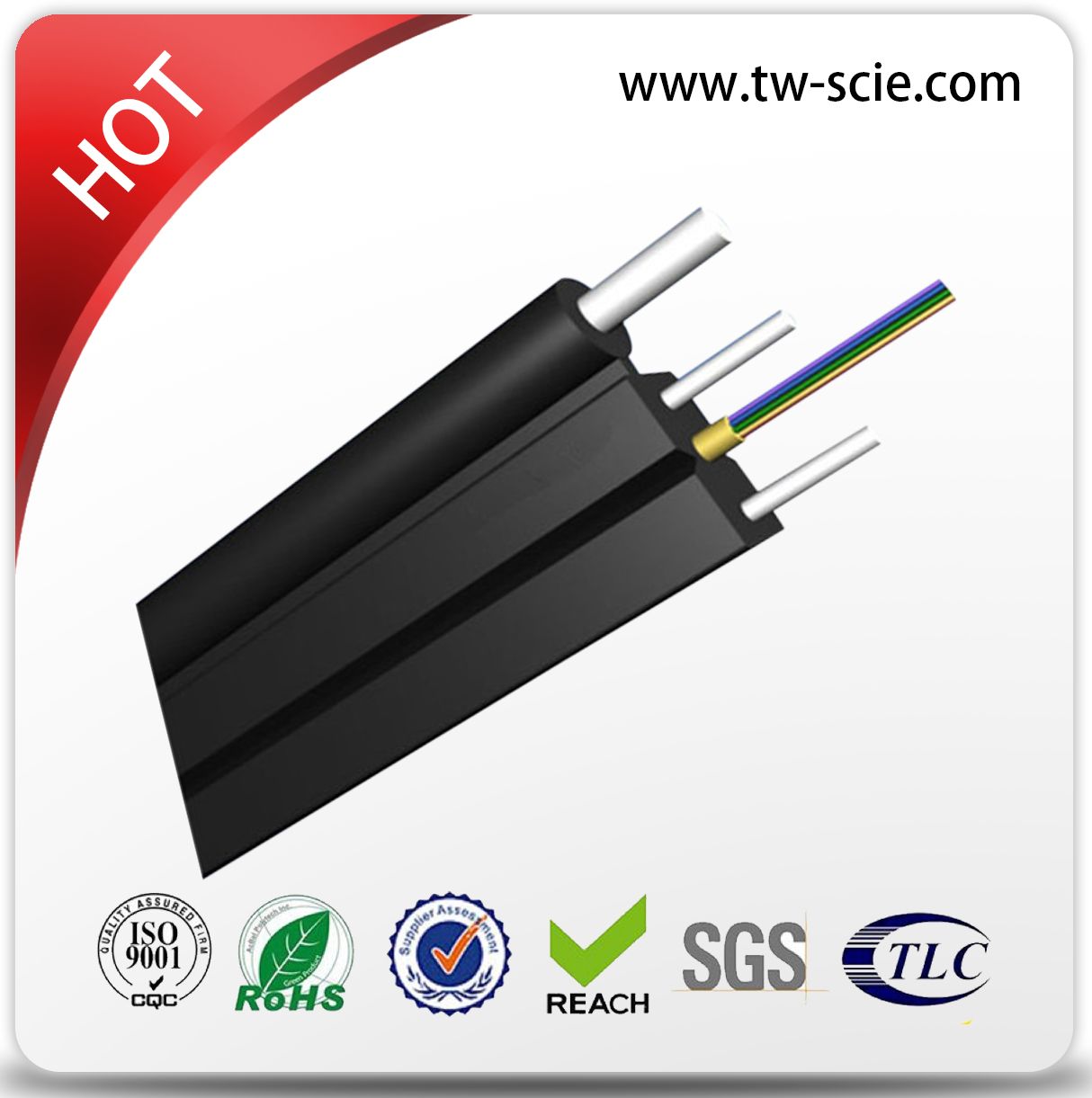

2 Core Self Supported Outdoor FTTH Fiber Optic Drop Cable

Prod Model:	Drop Cable
Fiber Type:	Sm
Fiber Cores:	1-4 Cores
Installation:	Aerial
Outer Sheath:	LSZH
Application:	Communication
Certification:	ISO9001
Type:	FTTH
Brand:	Tw-Scie
Sheath Material:	LSZH

Product Description

2 Core Self Supported Outdoor FTTH Fiber Optic Drop Cable




Description
FTTH indoor cable, the optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced steel wires(or FRP) are placed at the two sides. Then the cable is completed with a black or color LSZH sheath.

Characteristics
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication
transmission property;
Two parallel steel wire/FRP strength members ensure good performance of crush resistance
to protect the fiber.
Simple structure, light weight and high practicability;
Novel flute design, easily strip and splice, simplify the installation and maintenance;
Low smoke, zero halogen and flame retardant sheath.

Product perameter

Model Number	GJXH,GJXFH
Type	Coaxial
Number of Conductors	1--12
Certification	UL ROHS ISO
OEM	Welcome to OEM for FTTH Indoor Cable
Item	FTTH Indoor Cable
Jacket Material	LSZH
Laying method	FTTH/FTTX/FTTA
Standards	YD/T 1258.2-2003,ICEA-596,GR-409,IEC794,OFNR & OFNP
Application	indoor wiring, building introduction
Operating Temperature	-40 to 70 degree


Technical Parameters

Fiber count		Cable	Tensile Strength	Crush Resistance	Bending Radius
	Cable Diameter	weight	Long/short term	Long/short term	Static/Dynamic
	mm	kg/km	N	N/100mm	mm
1	(2.0±0.2)*(3.0±0.2)	8	30/60	300/1000	15/30
2	(2.0±0.2)*(3.4±0.2)	8.5	30/60	300/1000	15/30
1	(2.0±0.2)*(3.8±0.2)	9	30/60	300/1000	15/30
4	(2.0±0.2)*(4.0±0.2)	10	30/60	300/1000	15/30




FAQ
1.Are you the real manufacturer?
Yes.  We are the real manufacturer  with 18 years' history.

2.What is your fiber brand ?
Corning, YOFC, FiberHome, etc

3.Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.

4.What is your warranty period?
25 years for fiber optic cable

5.Which kind of certification you have ?
ISO9001, SGS, UL, RoHs.

6.What is your delivery time?
Usually within 2-3 working days

7.What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

8.What is your payment way?
 T/T, L/C, Western Union and Paypal.

9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.

Tag: FTTH drop cable
