2 Cores Pinned MTRJ Single-mode Connectors

Name: 2 Cores Pinned MTRJ Single-mode Connectors
Brand: all-electronics-online.com
SKU: 815365265
Availability: InStock
Rating: 4.4 (23 reviews)

Price:	US $ 1-1.5/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PUNO976
Color:	Black
Material:	Plastic
Fiber Count:	2 Cores
Fiber Type:	Singlemode
Tensile:	1000N
Fiber Polishing:	APC
Cable:	2.0mm/3.0mm
Type:	Single-mode Fiber
Connection Structure:	MTRJ
Material Shape:	Round Wire
Allowed Lateral Pressure:	>1000（N/100mm）
Allowed Tensile Strength:	1000N<10000N
Core:	Double Core
Certification:	CE, RoHS, ISO9001, UL
Sheath Material:	Metal
Connector Type:	MTRJ
Application:	Art, Sensor, Communication, Medicine

Product Description

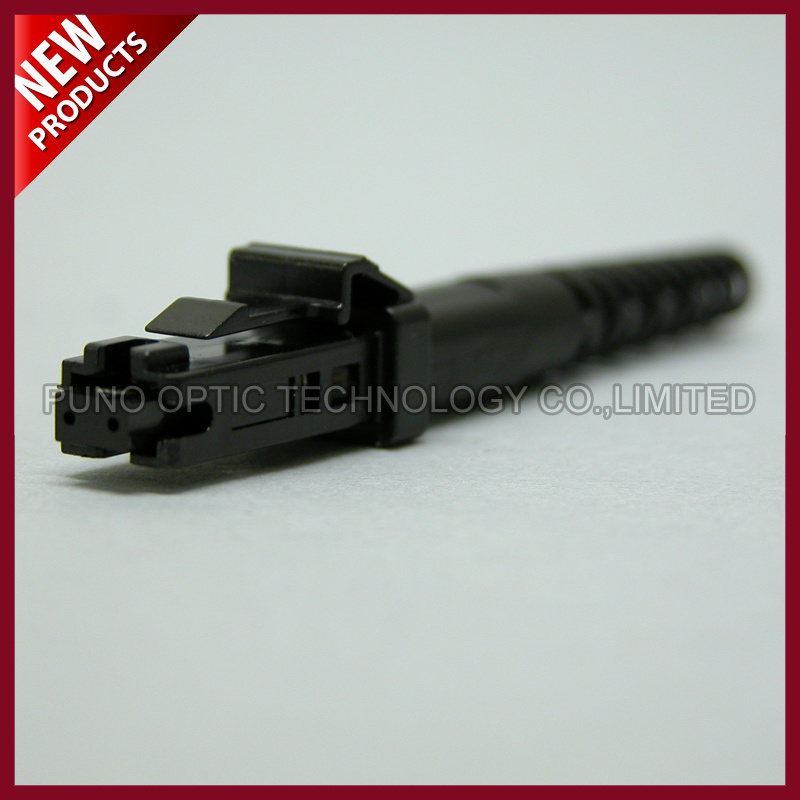

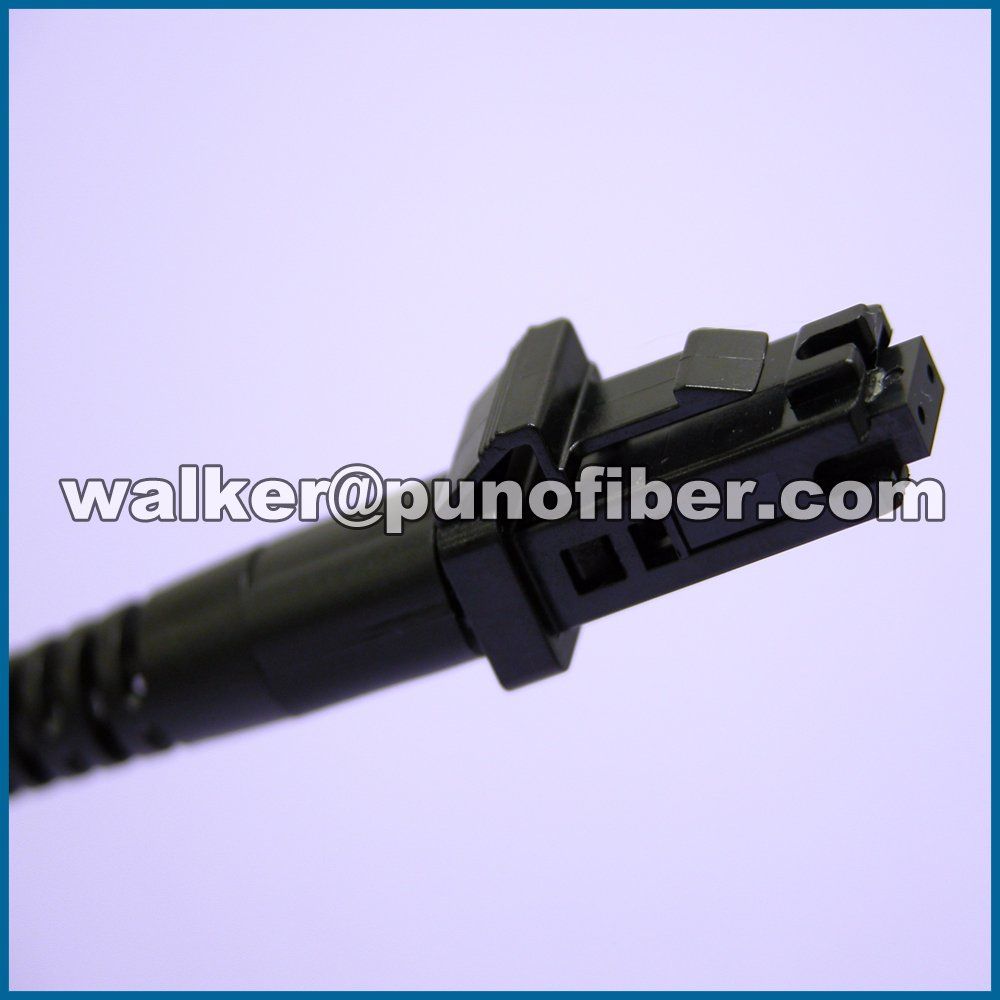

2 Cores Pinned MTRJ Single-mode Connectors
This kind of MT-RJ Connector uses a RJ-latching mechanism familiar to installers. Also, the MT-RJ is a smallform-factor connector package that doubles the density compared to standard SC connectors. Installation is as easy as strip, clean, cleave, cam and crimp.

Features / Benefits:
Fast termination, high installation yields and no consumables means lowest installed cost;
Continuity Test Set gives immediate go/no-go feedback of successful termination;
Quick installation: less than three minutes per connector;
No epoxy, no polish;
No need for electrical power for ovens or lights;
Average insertion loss 0.3 dB for MM and 0.4 dB for SM insertion loss.

Application:
10-GbE multimode and single-mode optical networks;
Intra-building backbone and horizontal fiber interconnections;
Inter-building OSP entrance terminations;
Data Center and WAN main cross-connect terminations;
Quick deployment remote data links;
Fiber to the Subscriber (FTTX);
Low reflection angle polish single-mode applications.

Specifications:

Compliance	IEC 61754-15, TIA 604-16
Technology	Full ceramic ferrule and sleeve
Tuning	in 60^° steps
Mechanical resistance	100N tensile load
Thermal resistance	-40ºC to +85ºC, stock temperature range
Flammability	UL 94-V0
Durability	Min. 1000 mating cycles
Color of housing	Single-mode, Black
	SM (APC 8^°), green
	Multimode, beige

Cable Parameter:

No.	Items		Unit	Specification
No.	Items		Unit	G.655E
1	Mode Field Diameter	1550nm	μm	8.0~11.0±0.6
2	Cladding Diameter		μm	125.0±1.0
3	Cladding Non-Circularity		%	≤1.0
4	Core-Cladding Concentricity Error		μm	≤0.6
5	Coating Diameter		μm	245±10
6	Cladding-Coating Concentricity Error		μm	≤12.5
7	Cable Cutoff Wavelength		nm	λcc≤1450

Payment & Shipping Terms:

Minimum Order Quantity	1 Piece MOQ On Request
Packaging Details	10 or 20 PCS / Plastic Tray, 1 PC / Gift Box
Delivery Time	Delivery In 7 - 15 Business Days
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	5000 Pieces Per Monthly
