2 Cores Waterproof Rugged Fiber Optic Pigtail with PE Jacket

Name: 2 Cores Waterproof Rugged Fiber Optic Pigtail with PE Jacket
Brand: all-electronics-online.com
SKU: 691338971
Availability: InStock
Rating: 4.3 (59 reviews)

Price:	US $ 8-20/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	FAPG-WFAS2
Color Of Jacket:	Black
Length:	Customized
End Polishing:	PC, Upc
Cable Diameter:	9.8mm or 11.8mm
Other Options:	4 Cores
Cable Type:	Outdoor Cable
Jaclet Material:	PE
Fan-out Length:	Customized
Fan-out Color:	Default or Customized
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	FC
Certification:	ISO9001

Product Description

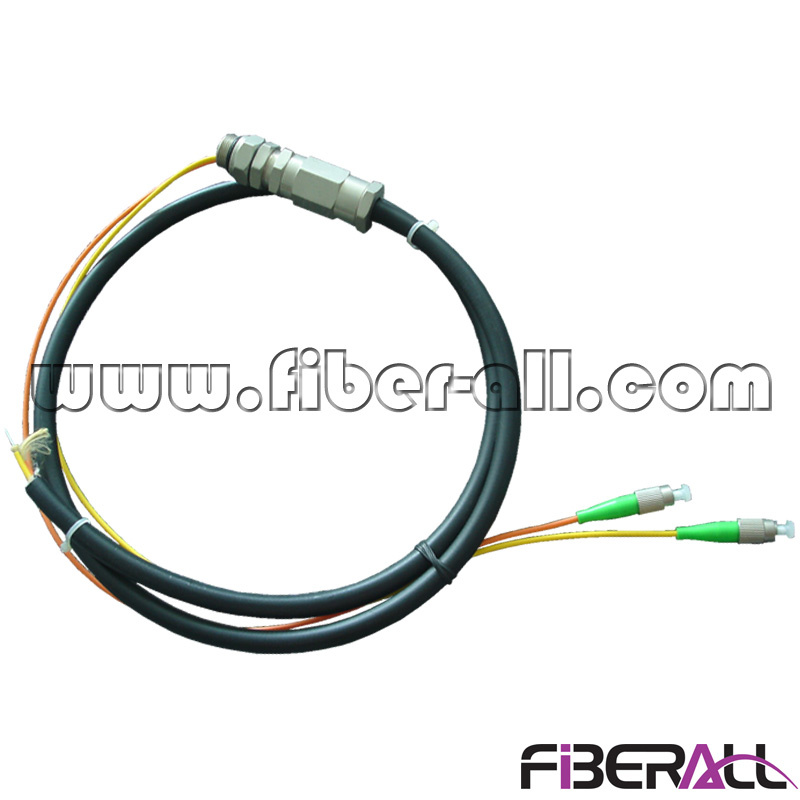

FAPG-WFAS2, 2 Cores Waterproof Rugged Fiber Optic Pigtail With PE Jacket

Technical parameters:
Standard housing, ceramic ferrule
Fiber type: 9/125 μm (OS1), or 62.5/125μm (OM1), or 50/125μm (OM2, OM3, OM4)
Insertion loss: ≤0.3dB (some special connector have its own standard like MTRJ≤ 0.5dB)
Return loss: UPC for SM≥ 50dB, PC for SM≥ 45dB, APC for SM≥ 60dB, PC for MM≥ 20 dB
Repeatability: ≤ 0.2 dB
Changeability:≤ 0.1 dB
Operating temperature range: -20°c ~ 70°c
Storage temperature range: -40°c ~ 80°c
Min. bending radius: 35mm (G.652), 15mm (G657A)

OEM options(all are with MOQ limit):
1, Customized print on cable (words only)
2, Customized label ( on cable, inner bag and outer carton)
3, Customized inner bag (design and print)
4, Customized print on carton ( MOQ limit)

Specifications Of Waterproof Fiber Optical Pigtail

Part number	FAPG-WFAS2
Cable spec	Waterproof Fiber Optic Pigtail 2F With PE Jacket FC/APC
Application	Harsh environment requires waterproof
Insertion Loss	≤0.5dB(including repeatability)
Cable diameter	9.8mm or 11.8mm for options
Fiber count	2 cores to 12 cores
Outer jacket	MDPE
Fan-out diameter	OD2.4mm or 2.0mm
Central strength member	Steel rod
Armor material	Steel or aluminum tape
Fiber connector	SC/PC, SC/APC, FC/PC, FC/APC, ST/PC, ST/APC and so on are available for options
Return Loss	Single mode APC≥60dB, Single mode UPC≥50dB, Multi mode ≥30dB
Working temperature	-40ºC~+80ºC
Mating times	>1000
Tensile strength	0~15Kg
Customized print on cable	Acceptable based on MOQ
