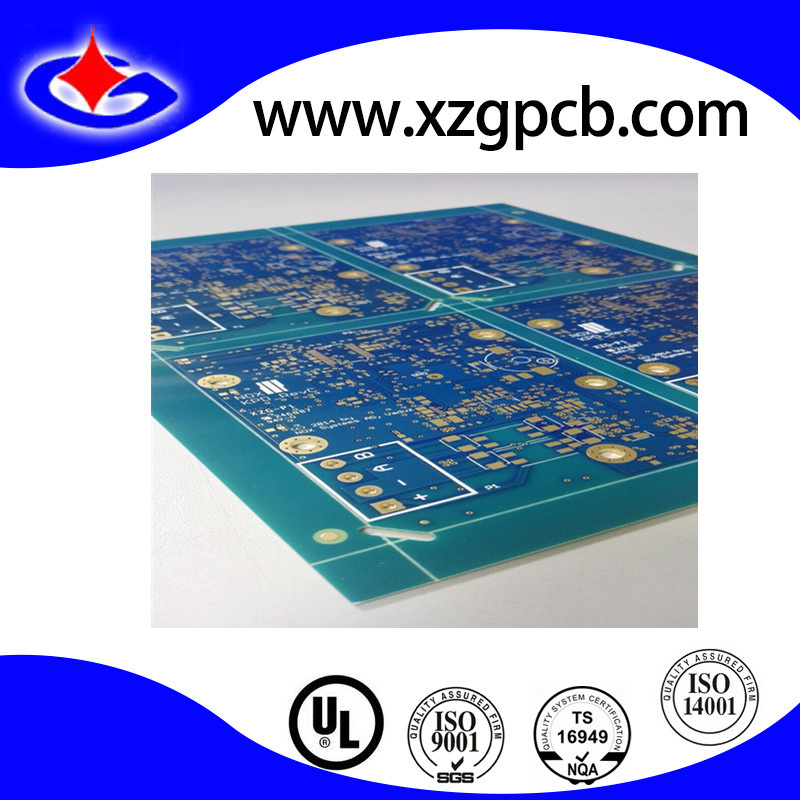

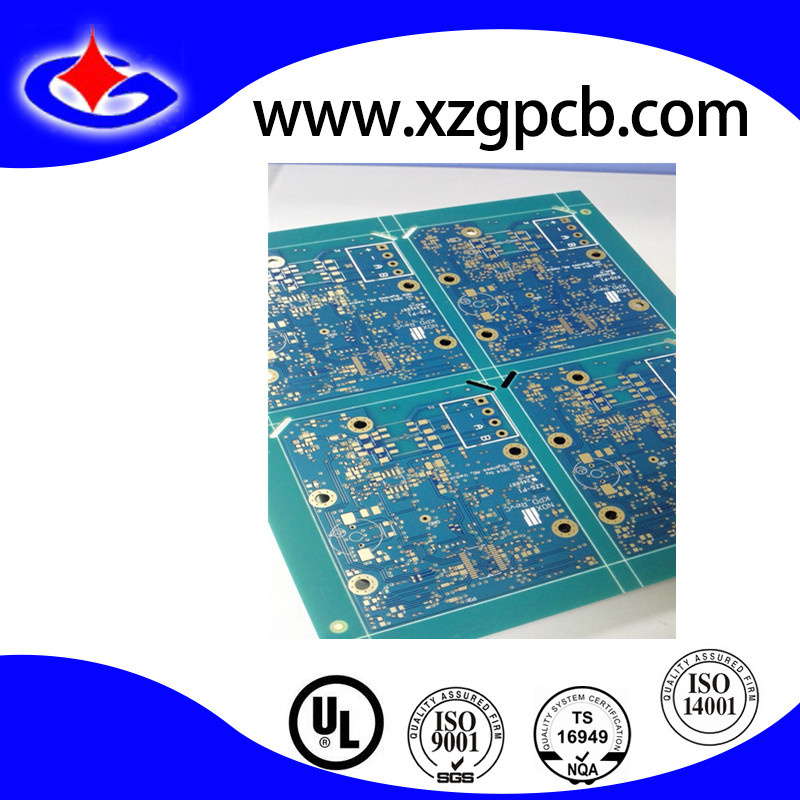

2-Layer Imerision Gold Blue Solder Mask PCB for MP4

Name: 2-Layer Imerision Gold Blue Solder Mask PCB for MP4
Brand: all-electronics-online.com
SKU: 774840445
Availability: InStock
Rating: 5 (58 reviews)

Price:	US $ 0.77-0.81/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	WBPN1033AO
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Panel Size:	185.6*121.6mm
Solder Mask Colour:	Green
Silkscreen Colour:	No
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0
Brand:	Xzg

Product Description

Specifiction:
layer:2 layer
material:fr4 kb
board thickness:.1.6mm
copper thickness:2oz
min line width and distance:7/7mil
min Hole size:0.5MM
surface treatment: ENIG
TG value:tg135
Application:MP4

Our main process capability:

Items	Standard	Advanced
Layer Count	1-20	1-24
Base Material	CEM1,CEM3,FR4,IMS(Aluminum)
basic supplier	Kingboard,Shengyi,Nanya,ITEQ,Rogers,Totking, Ventec & etc
Board Thickness	0.2-5.0mm	0.2-7.0mm
Max. Panel Size	520X660mm	680X1200mm
Min. Mechnical Drill	0.2mm	0.15mm
Min. Line width&space	0.1/0.1mm	0.076/0.076mm
Max. Copper Thickness	6 oz	8oz
Min BGA size	0.25mm	0.2mm
MIn Bonding IC width	0.178mm	0.127mm
Max. Aspect Ratio	8:1	10:1
impedance tolerance	<=10%	<=7%
Solder Mask Color	Green,Black,White,Blue,Red,Matt Green, Matt Black
Silkscreen Color	White,Black,Yellow,Grey,Orange
Surface Treatment	HASL(Lead Free),OSP,ENIG, ENEPIG,Immersion Silver,Immersion Tin, Hard Gold Plating,Tin Plating, Silver Plating

Our Lead time:

layers	1~2layers	4layers	6layers	8layers
sample	3~4 days	5~6 days	6 ~7days	7 ~8days
Volume production	7~9 days	11 days	14 days	15 days

Why US:

UL (E246887), ISO9001, TS16949, ISO 14001 certified.
Turnover USD 50-100 million per year
25,000 sqm area,1100 staff
Mass Production from single to 20 layers
Special Material: ROGERS, Arlon, Taconic.etc.
Client: SAMSUNG, Skyworth, Malata, Midea.etc.

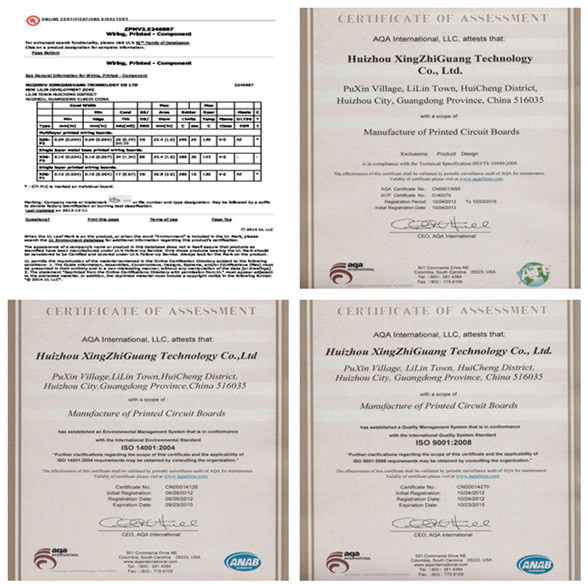

Certificates(UL:E246887, TS16949, ISO14001, ISO9001):

Capability & Lead Time:

Factory Tour:

Clients and Suppliers:

FAQ:

Q1:Are you a manufacturer or trading company?
A:XingZhiGuang is a PCB manufacturer, specialized in PCB for over ten years.

Q2:What kind of PCB file you need before production
A:Gerber, or files like PROTEL 99SE, PROTEL DXP, POWER PCB, CAM350.etc.
b. Dimensional Specifications
c. BOM List (only for PCBA)

Q3: How long will you send us quotation ?
A: After all files were sent, 2 to 8 hours as per your file.

Q4:What is your minimum order quantity?

A:Our MOQ is 1 PCS.

Q5: How to find you?
A: Please click the button "send" at the end of each page, or contact our sales on Trade Manage online!

Xingzhiguang Technology, established in 2002, with factory area of 25, 000 sqm, total staff about 1200 and overall investment nearly USD 50 million, is a professional PCB manufacturer with factory located in Huizhou.

Through more than 10-year experience in PCB production, Xingzhiguang Technology is supporting an annual capacity of more than 900, 000 sqm, among which 30% is 1~2 layer and 70% is multi-layer, with the maximum layer count up to 20 layers; We can process many different kinds of laminates, such as FR4, high-Tg FR4, metal-based laminate (includes aluminum-based), Isola, Rogers and so on. In addition, we have started producing PCBA (PCB assembly) and FPCB (flexible PCB) as well since the end of 2014. We have passed a lot of authorized certification, including but not limited to UL(E246887), ISO9001: 2008, ISO/TS16949 and ISO 14001: 2004, and this ensures us to be capable to provide high-quality products to meet different customers' requirements.

Our products are widely used in fields of telecommunication, power supply, security surveillance, automotive, industry control, LED lighting & etc

Finally, as our commitment to the environment protection, we have also invested about USD 600, 000 in water-recycling system construction. This is the best witness to certify that xingzhiguang technology is a responsible enterprise.
