| Prod Model: |
szh215-pcba |
| Copper Thickness: |
1oz |
| Min. Line Width: |
0.075 |
| Min. Line Spacing: |
0.075 |
| Board Thickness: |
1.6mm |
| Min. Hole Size: |
0.15 |
| Price: |
Factory Direct Price |
| Certificate: |
UL,SGS,RoHS, ISO 9001, ISO14001 |
| Material Supplier: |
Nanya;Sheng Yi;Kb |
| Application: |
Industry |
| Brand Name: |
PCBA |
| Metal Coating: |
Copper |
| Mode Of Production: |
SMT |
| Layers: |
Multilayer |
| Base Material: |
FR-4 |
| Certification: |
ISO |
| Customized: |
Customized |
| Condition: |
New |
Product Description
6-layer Carbon Ink PCB cfl pcba
RoHS complaint PCB
Lead free technology
UL approved
Welcome to Sunthone Technology Circuit Co,.Ltd
1. Who we are
Product Details
1.Production Introduce

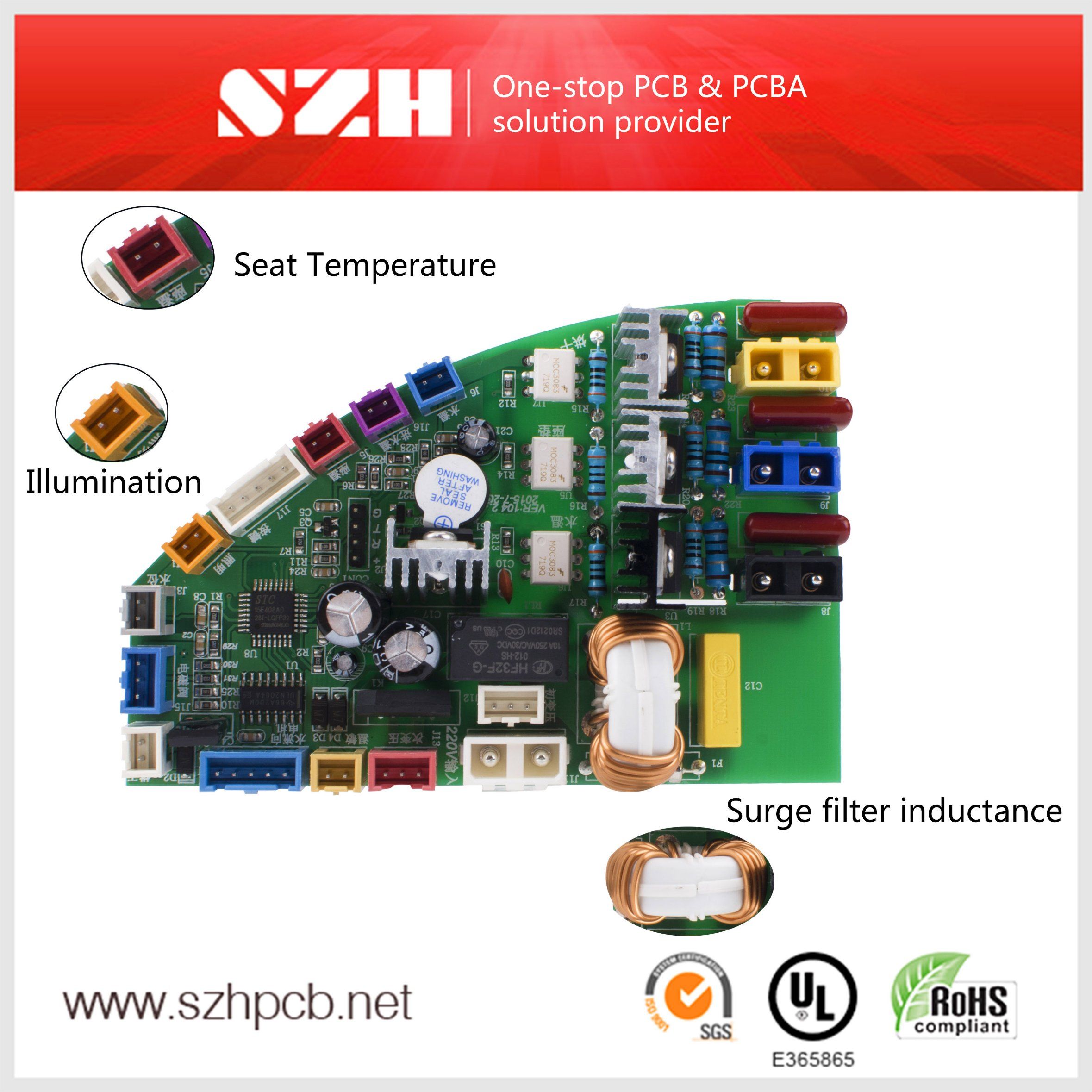

Intelligent Sensor Toilet Seat Cover PCBA board is inculding mainly Cotrol PCBA board & Keyboard PCBA board
2.Appliance Range
The Intelligent Sensor Toilet Seat Cover PCBA board is widely used in Separate machine Intelligent Sensor Toilet Seat Cover
3.Advantages / Characteristics
Bidet cleaning
Design for female,help them resolving the washing problem during menstruation,pregnancy,prenatal and postnatal,away from the disease of gynecology.
Intelligent deodorization
Adopt automatic deodorizing device of catalyst and adsorption,remove smell and fresh air.
Heated Toilet Seat
Temperature ajustable for toilet seat,bringing you warm in cold season,feel comfortable and healthy.
Anti-bactirial Toilet Seat
Advanced antibactirial technique and meet national standard,Inhibitory effects on various germs,care for your health.
Warm Air Drying
Without paper and hands,comfortable and environmental.
4.Teachnical Data| Items | Data | | Water Supply Way | Water supply | | Water Supply Range | 0.1-0.6Mpa | | Rated Voltage | 220/240AC 50/60Hz | | Maximum Power | 1800W | | Cleaning Device | Warm Water Tank Volume | 200ML | | Buttocks Cleaning Water | 0.6-0.8L/min | | Female Cleaning Water Consumption | 0.5-0.7L/min | | Maximum Heating Power | 1800W | | Warm Water Control Temperature | Normal Temperature, Low Temperature(rough 32ºC), Moderate Temperature(rough 36ºC),High Temperature(rough 40ºC) | | Safety Measures | Temperature Sensor Thermal Fuse | | Cleaning Time | 120Seconds | | Seat Ring Device | Maximum Heating Power | 35W | | Seat Control Temperature | Normal Temperature, Low Temperature(rough 32ºC), Moderate Temperature(rough 36ºC),High Temperature(rough 40ºC) | | Safety Measures | Temperature Sensor Thermal Fuse | | Drying Device | Maximum Drying Power | 400W | | Temperature Control | Normal Temperature,Low Temperature,Moderate Temperature,High Temperature(rough 32-60ºC,Warm air outlet temperature) | | Safety Measures | Temperature Sensor Thermal Fuse | | Drying Time | 180Secods The body left to stop drying | | Deodorizing Device | Deodorant Way | Cold catalyst | | Deodorant Ability | 200L/min | | Saving Way | Intelligent energy saving way | | Usage Ambient Temperature Range | 4-40ºC | | Operating Temperature Range | <95% |
5.Fuction Description
1)Stop
This is the power on / off button.
2)Spray
Press this button for hip cleansing , it will run for 90 seconds and then automatically stop. Press the button again to second use, the nozzle will move back and forth to wash more skins of the body. During cleansing, press the This button to adjust the intensity of flushing water potential.
3)Bidet
Press this button for bidet function, it will run for 90 seconds and then automatically stop. Press the button again to second use, the nozzle will move back and forth to wash more skins of the body. During cleansing, press the this button to adjust the intensity of flushing water potential.
4)Dry temperature
While drying, you can also press this button to adjust the temperature, three shifts can be adjusted (low / medium / high).
5)Auto
Press this button to start full-automation function . Press the"Bidet" button,and then the "Auto" button, you will enjoy full-automatic service. (The toilet works in order of hip cleansing (cleansing for women) ,mobile massage and drying )
6)Turbo wash
Press this button to start turbo washing function, the spry rod reach out, and water come out from the hip cleansing water outlet. Water pressure is high-grade with pressurizing of the air pump,which make the water flow thin and strong. Press the "stop" button to stop running.
7)Water temperature
This is the water temperature adjustment button, three
shifts can be adjusted:low temperature,medium temperature,and high temperature,adjust the temperature according to your own preferences.
8)Seat temperature
This is the seat temperature adjustment button, three shifts can be adjusted:low temperature,medium temperature,and high temperature,adjust the temperature according to your own preferences.
9)Seat temperature
This is the seat temperature adjustment button, three shifts can be adjusted:low temperature,medium temperature,and high temperature,adjust the temperature according to your own preferences.
10)Deodorant
11)Economy
When nobody is using,press this button for energy-saving and maximum electricity-saving , the original settings will be automatically restored after 8 hours .
12)Power
Press this button to stop running,it will also automatically stop when getting up from the seat.
Q: How to get a sample?
A: Sample order acceptable, pls contact us for details.
Q: What is the leading time for sample and mass order?
A: Sample order will take 7-10 days, mass order will take 25days.
Q: Can we do OEM?
A: Yes, we accept OEM service.
Q: What is the MOQ?
A: We set 10pcs/model as MOQ, with neutral package
Shipping Method and Payment terms:
1. By DHL, UPS, FedEx, TNT using clients account.
2. We suggest you using our DHL, UPS, FedEx, TNT forwarder.
3. By EMS (Usually for Russia Clients), price is high.
4. By sea for mass quantity according to customer's requirement.
5. By customer's Forwarder
6.By Paypal,T/T,West Union,etc.
Delivery Time for PCB board:
1) PCB production time: sample: 3-4 days / mass production: within 7 days
2) Component purchase: 2 days if all components is available in our domestic market.
3) PCB Assembly: samples: whthin 2 days / mass production: within 5 days
We sincerely hope to establish longtime and friendly business relationship with you. If you have interest in our product, please don't hesitate to contact us ! | | |
| | | |
2. Support
Sunthone aims to be the leading PCB manufacturer, and provide quality PCB products for electronic industry.
| Layers | 1-16 layers | Min Board Thickness(2-layer) | 0.2mm |
| Max Board Size | 635 × 1100mm | Min Board Thickness(4-layer) | 0.6mm |
| Min Board Size | 20 × 30mm | Min Inner-layer Thickness | 0.1mm |
| Min Trace | 0.1mm | Min Annular Ring | 0.1mm |
| Min Space | 0.1mm | Min Hole Location Tolerance | ±0.075mm |
| Min Hole Size | 0.2mm | Min Hole Size Tolerance | ±0.05mm |
| Board Warp | ≤ 1° | Min Outer Dimension Tolerance | ±0.1mm |
| Solder Mask | Green, Yellow, Red, Black, Blue, White |
| Surface Finish | HAL, HASL, Immersion Gold, Immersion Silver, Plating Gold, Plating Nickel, Plating Silver, Gold Finger, OSP |
| Board Material | FR-4, High Tg FR-4, Halogen Free FR-4, Thick Copper FR-4, Aluminium Based, Rogers, Taconic |
| Acceptable file | Gerber file(RS-274-X or RS-274-D with aperture list and drill files),Protel,PADS,POWERPCB,AutoCAD,ORCAD |
| CAM software | Genesis, CAM350 |
3. PCB + Assembly
More and more of our existing PCB customers are now asking us for fully Assembled Printed Circuit Boards delivered to their door to take away all the time consuming stress of component procurement and assembly. In order to meet customers' requirements, Sunthone develops from a PCB manufacturer to a one-stop PCBA service provider, including PCB assembly, components sourcing, stencils, cable assembly and final product assembly and testing.
Available Services
PCB Manufacturing
PCB Assembly
Components Sourcing
SMT Stencils
Cable Assembly
PCBA Testing
Final Product Assembly | Assembly Technologces
SMT
THT
Reflow Soldering
Wave Soldering
Hand Soldering
Repair/Rework
Mixed Assembly Technologies | |
4. Why choose us?
5. Equipment
6. Certifications
Sunthone is a one-stop PCB & PCBA solutions provider, offers PCB manufacturing, PCB assembly, components sourcing, stencils and PCBA testing services, and helps to simplify your job, improve your efficency and focus on your strength.
Firstly established as a PCB factory, more and more of our existing PCB customers ask us for fully Assembled Printed Circuit Boards delivered to their door to take away all the time consuming stress of component procurement and assembly. In order to meet customers' request and market developing trends, Sunthone develops into a one-stop PCB & PCBA solutions provider with all related services.
Sunthone has ISO 9001 and UL certificates, so all the products delivered from Sunthone are quality guaranteed with ISO and UL standards. Under such quality guarantees, its products are widely applied in many industrials, such as Industrial Control, Security System, LED & lightning, Medical Facilities, Power Supply, Computers and Communications. The UL certificate of power supply thick copper PCBs is available, too.
Flexibility is another strength of Sunthone. It provides various services at flexible quantities from prototype to mass production in a flexible way, to meet different requirements from clients.
Sunthone is always having an open mind and listening ears to learn your ideas, willing to work with you on a mutual beneficial basis to achieve bilateral success.
