| Prod Model: |
2 layer pcba |
| Assembly: |
SMT, DIP, COB, BGA |
| Size: |
198.32*256.56mm |
| Copper Thickness: |
Rigid:0.5-12 Oz |
| Biz Type: |
Factory |
| HS Code: |
8517709000 |
| Metal Coating: |
Copper |
| Mode Of Production: |
DIP |
| Layers: |
Double-Layer |
| Base Material: |
FR-4 |
| Certification: |
ISO |
| Customized: |
Customized |
| Condition: |
New |
Product Description

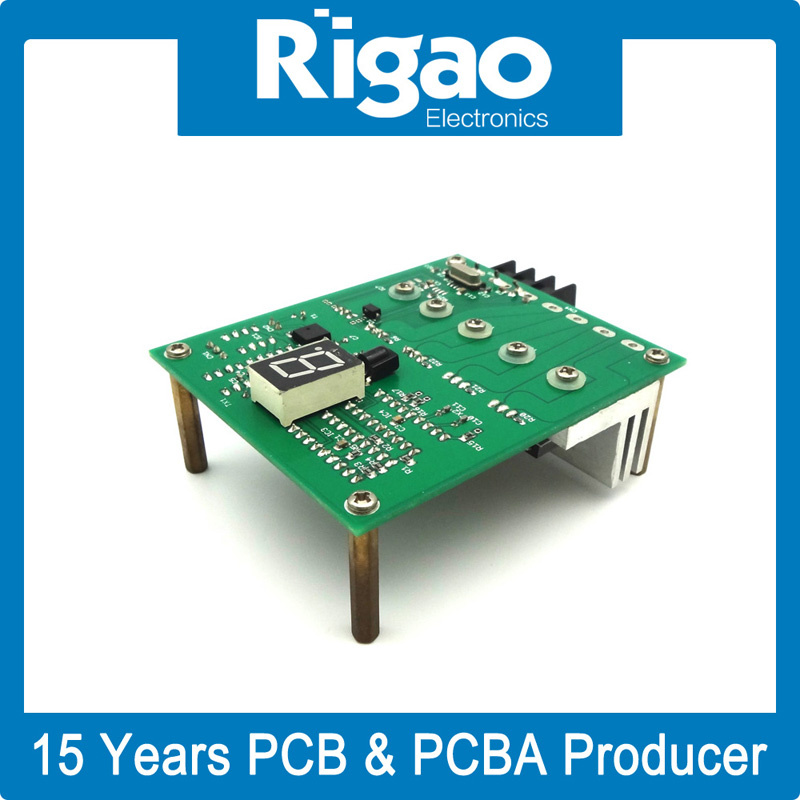

2 layer pcba for power inverter Product Description:Capability of 2 layer pcba
1 | Layer | 1-22 layer |
| 2 | Material |
FR4, CEM1, Aluminium Base, Cooper Base,
High frequency material |
Thick copper foil,94-V0 (HB), PI Material, Roger,
High TG:SL S1000-2,ITEQ:IT180. |
3 | Board thickness | 0.2mm-7mm |
| 4 | Max.finished board side | 610mm*1200mm |
| 5 | Min.drilled hole size | 0.25mm |
| 6 | Min.line width | 0.075mm(3mil) |
| 7 | Min.line spaceing | 0.075mm(3mil) |
| 8 | Surface finish/treatment |
HASL,OSP,Immersion tin,Immersion Gold |
Immersion Silver/Gold Finger ,Gold Plating,
Selective OSP Immersion Gold |
9 | Copper thickness | 0.5-4.0oz |
| 10 | Solder mask color | green/black/white/red/blue/yellow |
| 11 | Inner packing | Vacuum packing,Plastic bag |
| 12 | Outer packing | Standard carton packing |
| 13 | Hole tolerance | PTH:±0.076,NTPH:±0.05 |
| 14 | Profiling Punching | Routing,V-CUT,Beveling |
15 |
Assembly Service |
Providing OEM service to all sorts of printed
circuit board assembly |
Capability of 2 layer pcba
| Type of PCB Assembly | SMT, Thru-hole,COB |
| SMT | Position accuracy:20 um |
| Components size:0.4×0.2mm(01005) _130×79mm,Flip-CHIP,QFP,BGA,POP |
| Max. component height::25mm |
| Max. PCB size:680×500mm |
| Min. PCB size:no limited |
| PCB thickness:0.3 to 7mm |
| Wave Solder | Max. PCB width:450mm |
| Min. PCB width: no limited |
| Component height:Top 120mm/Bot 15mm |
| Sweat-Solder | Metal type :part, whole, inlay, sidestep |
| Metal material:Copper , Aluminum |
| Surface Finish:plating Au, plating sliver , plating Sn |
| Air bladder rate:less than20% |
| Supporting: | Software burning and Function Testing |
| Testing | X-RAY Inspection & AOI Test, ICT,Probe flying,burn-in,function test,temperature cycling |
| Lead Time | 12days-15days |
| File Fomat | Bill of Materials,Gerber Files, Pick-N-Place File (XYRS),PCB,Altium, EDA etc |
| Type of PCB Assembly | SMT, Thru-hole,COB |
| SMT | Position accuracy:20 um |
| Components size:0.4×0.2mm(01005) _130×79mm,Flip-CHIP,QFP,BGA,POP |
| Max. component height::25mm |
| Max. PCB size:680×500mm |
| Min. PCB size:no limited |
| PCB thickness:0.3 to 7mm |
| Wave Solder | Max. PCB width:450mm |
| Min. PCB width: no limited |
| Component height:Top 120mm/Bot 15mm |
| Sweat-Solder | Metal type :part, whole, inlay, sidestep |
| Metal material:Copper , Aluminum |
| Surface Finish:plating Au, plating sliver , plating Sn |
| Air bladder rate:less than20% |
| Supporting: | Software burning and Function Testing |
| Testing | X-RAY Inspection & AOI Test, ICT,Probe flying,burn-in,function test,temperature cycling |
| Lead Time | 12days-15days |
| File Fomat | Bill of Materials,Gerber Files, Pick-N-Place File (XYRS),PCB,Altium, EDA etc |
Company Introduce:Rigao-pcba electronic Co.,Ltd is a newly company which founded in 2008. At beginning we were only focus on manufacturing Printed Circuit Boards. But now GWC has become a rapidly growing worldwide provider of solutions in three principal areas - Printed Circuit Boards, PCB Assembly and Components Procurement. We are dedicated to building solid partnerships and providing flexible solutions to enable our customer's success.
We have years of experiences in Electronics field. From prototype to production and scheduled deliveries we are able to guarantee a complete service with technical backup, offering a cost advantage and continuity of supply. Our service include offering Company's Culture:
The Core Values: Integrity, Responsibility, Close attention
Our core competitiveness: Quality, Technology, Speed, Cost, Flexibility
Quality Policy:
High quality, High efficiency; Promise keeping and Sustainable development
Products equipments:
Cooperation Processsing:
Q&A:What products Rigao can supply?
Rigao supplies PCB,PCBA,FPC and assembly.
What kind of material Rigao can produce with?
Rigao offers CEM1,CEM3,FR4,Aluminum substrate,etc.
What kind of surface finish Rigao can make?
Rigao can make HASL lead/lead free,gold finishing.
Our Mission:
Credit on Customers/Focus on Quality/Rely on Management/Keen on Improvement
Till now we have successfully developed Analogue high performance FM transmitter, Wide frequency
stereo transmission circuit, SSB communication system, High performance wave receiving antenna,
Digital Frequency Hopping Radio Set, Digital Addressing communication system, etc. Moreover, We
fulfill establishing DNC Wireless to specialize in wireless module as 0-3000MHz.
Any needs and questiones ,please feel free to contact me
Shenzhen Rigao Electronics Co., Ltd. is a newly company which founded in 2008. At beginning we were only focus on manufacturing Printed Circuit Boards. But now we has become a rapidly growing worldwide provider of solutions in three principal areas Printed Circuit Boards, PCB Assembly and Components Procurement. We are dedicated to building solid partnerships and providing flexible solutions to enable our customer's success.
As an experienced PCB and PCBA manufacturer, we provide prototypes, small volume, medium volume, and high volume projects. We are able to guarantee a complete service with comprehensive technical backup, offering acost advantage and scheduled delivery.
Our main services include offering
Rigid PCB (up to 64 Layers)
Flexible PCB/FPC (1~6 Layers)
Rigid-Flex (3~18 Layers)
Aluminum-based PCB (1~6 Layers)
High Density Interconnection/HDI PCB
High frequency material PCB
DIP, COB, SMT assembly Services
Components Sourcing
We have since successfully completed over 5, 500 projects and have nearly 300 satisfied repeat customers. Our customers are from over 30 countries in various industries, including computer, home appliances, consumer products, telecom, scientific research institutes, etc.
Our manufacturing and quality control processes are ISO 9001: 2000 certified and conform to IPC-A600(PCB) and IPC-A610 (PCB Assembly) standards. All our PCB/PCBA are UL certified and RoHS compliant.
Our Principle is simple, "Act by heart, Make the best. "
Our strength is distinct, "Years of experiences in PCB and PCBA field"
Our Goal is achievable, "To be the most reliable supplier of PCB and PCBA. "
Our orientation is clear, "Focus on prototypes and low to medium volume business "
Your trust and support would be a solid back-up for our business. We sincerely hope to provide you with high-quality products and satisfactory services.
We are look forward to working with you!
