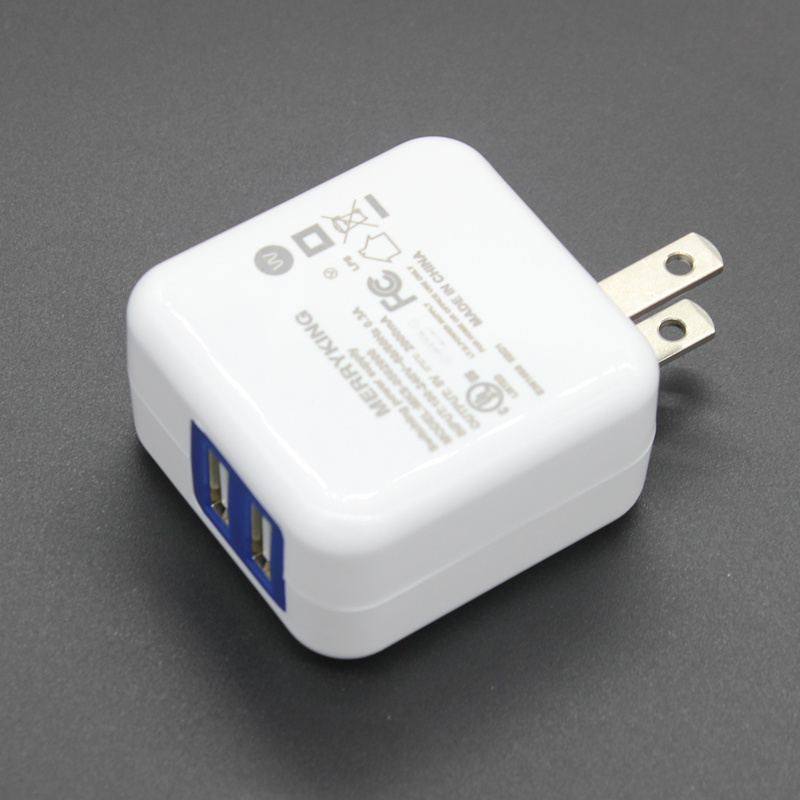

2 Outlet USB Wall Charger, Power Adapter

Name: 2 Outlet USB Wall Charger, Power Adapter
Brand: all-electronics-online.com
SKU: 768987245
Availability: InStock
Rating: 4.7 (55 reviews)

Price:	US $ 2.5-3/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	MKS-0502000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	Display
Output Type:	DC
Connection:	Plug In
Brand:	Merryking/ODM/OEM

Product Description

5V 2A external wall-mount USB travel charger, single USB port travel charger, for electronic device, class II, LPS, energy saver, light to carry, single USB port, customized designs are welcomed.
Customized designs are available
Model number: MKS-0502000

Reliability:
100% full loading, 40°C, 4 hours each part of this series can be sold separately
MTBF: meet MIL-HDBK-217F over 50, 000 hours, full loading, 25°C burn-in
Leakage current: 0.25mA, maximum at 264V AC
Withstanding voltage: 3kV, 1 minute, 10mA (maximum), between primary and secondary

Protections:
Over-voltage protection
Over-current protection
Short-circuit protection
Thermal shutdown capability

Features:
High quality competitive price
High-reliability
High-efficiency consumption
With fuse, short-circuit protection
Environment-friendly, energy-saving, complying with the safe certification standard
Double insulated circuit board designed to protect your valuable gadgets from short circuit

Certifications:
AS/NZS 60950:2000 and AS/NZS 60065
UL 60950 and GB 4943-2001
PSE IEC 60950 and EN60065
CE (low-voltage directive)
EN 60950:2009 and EN 60065
Standards: US Energy Star, CEC, AS, MEPS, EUP and ErP

Input specifications:
Input voltages: 100 to 240V AC
Input frequency range: 50 and 60Hz
No loading power: 0.3W (240V AC)
Current: 300mA (maximum)
Inrush current (240V AC): 25A, cold 25°C
Efficiency: Conform to level V (CEC/ERP/MEPS)
Plug type: wall mount

Output specifications:
Output power: 10W Max
DC voltage: 5V DC,
Output current: 2A
Regulation: Line: ±1%, load: ±5%
Ripple and noise:100mV max
Voltage precision: 5%

Mechanical:
Dimensions (L x W x H): 48 x 50 x 28mm

Environmental:
Operating temperatures: 0 to 40°C at maximum loading
Storage temperatures: -20 to 60°C
Humidity range: 5 to 95% RH (non-condensing)

MERRYKING is a Hi-Tech Enterprise involving designing, production and marketing of various kinds of electronic products such as Power Adapters, Switching Power Supplies, USB Charger, Linear Adapters and Chargers, etc. Also our products are widely applied in Digital products, Medical, Telecom, Home and IT products. MERRYKING is the registered trademark.

Our products have passed most of safety approvals in the world including UL, cUL, PSE, GS, CE, EK, SAA, CCC, C-tick, BS, CB, BSMI, etc. Also our products are widely introduced to domestic market and exported to USA, Canada, Europe, Japan, Australia, Argentina, Korea, Mexico, Singapore, Russia, etc, and established good relationship and long term cooperation with several overseas well-known brands.

Also we pay much attention to managements, we have obtained certificates issued by CCE Italy of ISO9001: 2008 quality management system and ISO14001: 2004 Environmental management system. Merryking is highly appreciated in the field for its high grade, efficient and unique operation principle.

Our factory locates in Shajing, bao'an, Shenzhen, is close to The Shenzhen International Airport with feasible transportation and beautiful environment. It is equipped with advanced Lead-free Dual Wave Soldering Machine, Reflow Soldering Machine, electronic load constant temperature aging room and many kinds of sophisticated testing equipment. With scale production ability, our monthly capacity reaches over half million pieces.

MERRYKING emphasizes its staffing as our most valuable treasure, and owns a high qualified team with rich experience and strong technology. We aim at being the first class professional electronic and electric supporting factory with excellent management and work team. In accordance with our company spirit of "Quality First, Customers Foremost, Keep Improving", we stick to our company aim of "Honesty, pragmatism, innovation, initiative", and provide excellent services to all of our customers.
