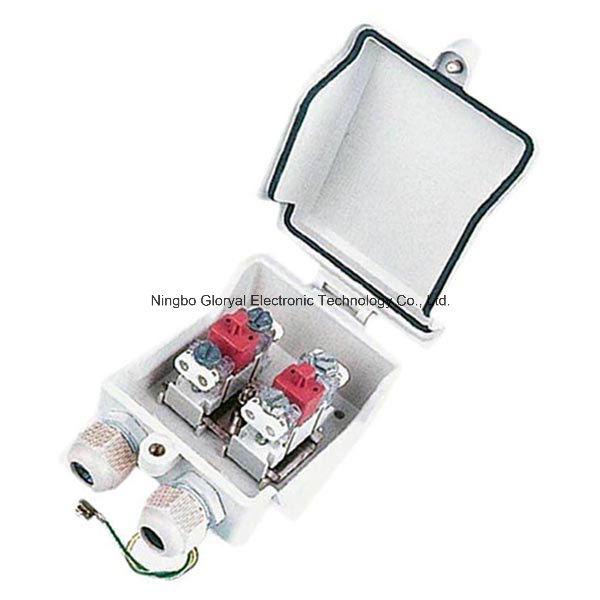

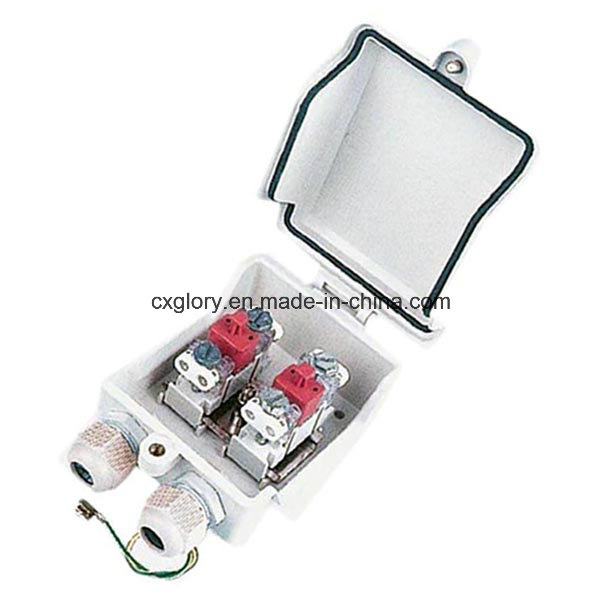

2 Pair STB Module Distribution Box

Prod Model:	GL-1306
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	ABS / PC
Place Of Origin:	Zhejiang, China (Mainland)
Brand Name:	Glory
Model Number:	Gl-1306
Color:	White
Delivery Detail:	15-20 Days
Support Network:	Ethernet
Information Content:	Data
Type:	Distribution Box

Product Description

Outdoor 10pairs distribution box for STB module
1)Application: Networking
2)OEM
3)Certificate: CE, ROHS, ISO9001
4)Standard: TIA
Drop wire connector: Gauge range: 0.4 to 1.2 mm diameter; Insulation diameter: 5 mm maximum diameter
Pair connector: Gauge range: 0.4 to 1.2 mm diameter; Insulation diameter: 3 mm maximum diameter
Current conducting capacity: 20 A, 10 A per conductor for 10 minutes at least without causing deformation of the module.
Insulation resistance: Dry atmosphere: >1012 Ω ; Damp atmosphere (ASTM D618, procedure F): >1012Ω
Salt fog (ASTM B117): >1010 Ω ; Immersion in water (15 days in 3% NaCl solution): >1010 Ω
Contact resistance: Rmaterial + Rbridge contacts + Rwire contacts: <10 m Ω
Increase in contact resistance: After climatic tests: <2.5 m Ω ; After 50 reinsertions: <2.5 m Ω
Dielectric strength: >3, 000 Vdc for 1 minute.
Mechanical characteristics:
Pair/drop wire housing screw: Special passivated direct + lacquered Zamac alloy.
Drop wire housing body: Transparent polycarbonate
Body: Flame retardant (UL94); Fiber-glass reinforced; Polycarbonate
Insertion contacts: Tinned phosphor bronze
Ground contacts: Cu-Zn-Ni-Ag alloy
Continuity contacts: Tinned hard brass
Lower sealant: Polymeric resin
Upper cable sealant: Silicone fluid
Pair/drop wire bearing cover: Polycarbonate
Plug-in module body: Flame retardant (UL94); Fiber-glass reinforced; Polycarbonate
Plug-in module sealant: Gel
"O" ring: EPDM
Cable/drop wire membrane: Thermoplastic rubber
Box base and cover: Polycarbonate RAL 7035
Earthing assembly: Stainless steel
Grommet: EPDM
Plug-in module configuration: Continuity; 230 V GDT
Note: If > 20 A up to 30 A is required, this is possible using a different GDT

Features
Molded from impact resistant, chemical resistant plastic.
Provides UV protection.
Easy access for terminating Termcon IDC Modules.
Small in size, lightweight.
Simple hand tools and minimum skills required for installation.
Minimum twenty year life cycle.
Applications
For mounting to walls, wood, metal or concrete poles.
Sizes
Available in 10 pair configuration.
Fully populated - protected or unprotected terminals are pre-installed and cable ready.
