| Prod Model: |
23HS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Step Angle: |
1.8 |
| Hold Torque: |
up to 280n.Cm |
| Phase: |
2 Phase |
| Current: |
0.6-4.2A |
| Motor Body Length: |
41mm, 51mm, 56mm, 64mm, 76mm, 100mm, 112mm, 125mm |
| Shaft: |
6.35mm Dia, 21mm Length, Can Customized |
| Connectors: |
Can with Connectors, 4 or 6 Lead Wires |
| Step Angle Accuracy: |
±5% Full Step |
| Resistrance Accurancy: |
±10 |
| Ambient Temperature: |
: -20° - +50° |
| Number Of Stator: |
Two-Phase |
| Excitation Mode: |
HB-Hybrid |
| Type: |
Magnetic-Electric |
| Certification: |
Ce,RoHS |
| Brand: |
Leison Motor |
Product Description

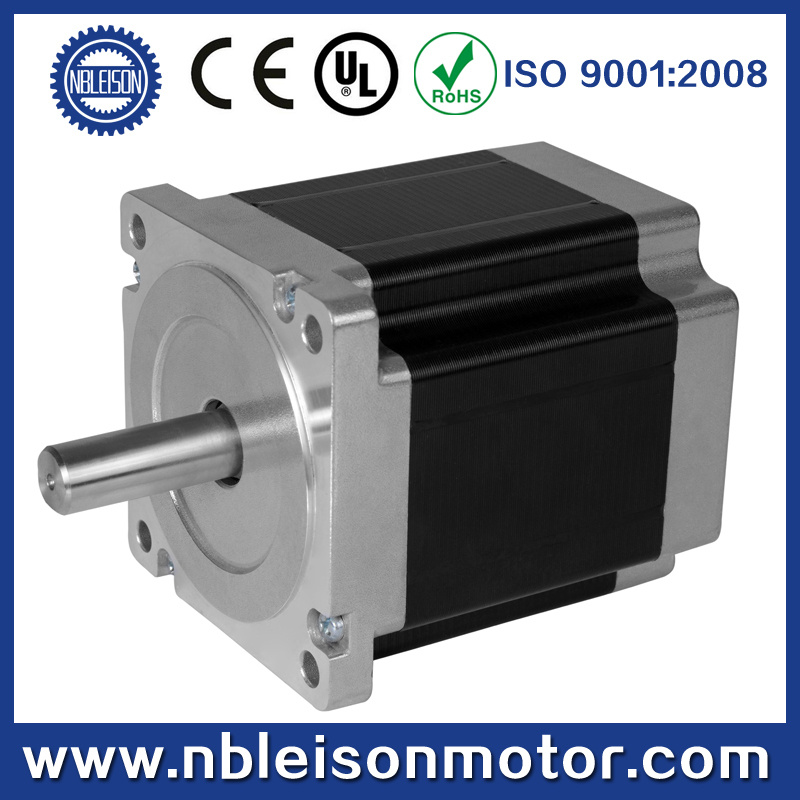

NEMA23 Stepper Motor:1. Professional manfacuturer for stepper motor, We have different type NEMA8, NEMA11. NEMA14, NEMA16
NEMA17, NEMA23, NEMA34, NEMA42.
2.1.8 degree, 0.9 degree. 3.6 degree, 1.2 degree, Single shaft or double shaft, D-cut or rond shaft
3. Customized lead wires length and connectors are also acceptable

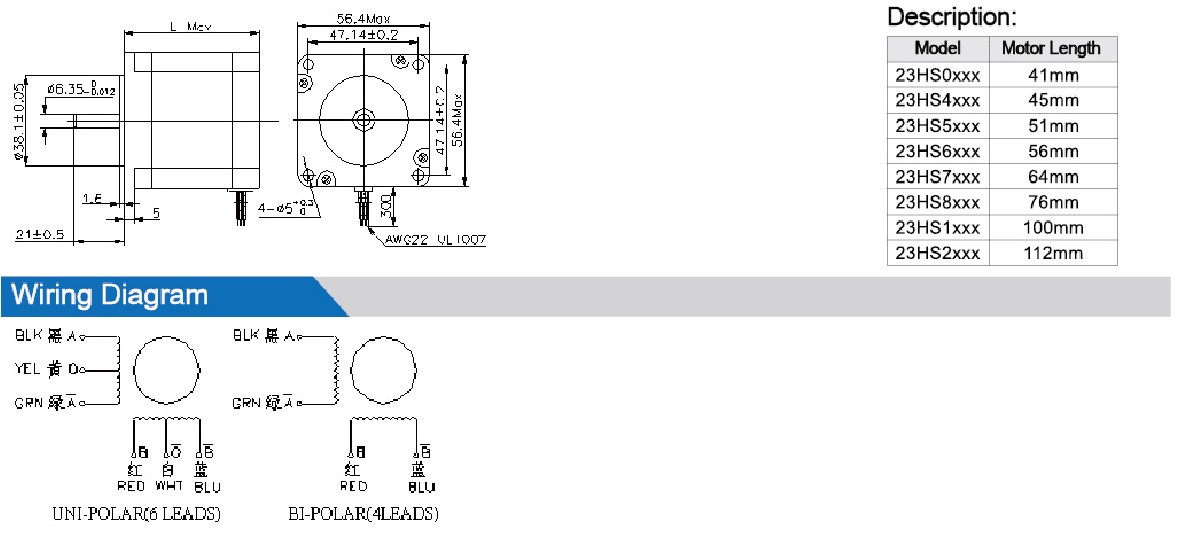

Specification:
| Electrical Specifications: |
| Series Model | Step Angle (deg) | Motor Length (mm) | Rated Current (A) | Phase Resistance (ohm) | Phase Inductance (mH) | Holding Torque (N. cm Min) | Detent Torque (N. cm Max) | Rotor Inertia (g. cm ² ) | Lead Wire (No. ) | Motor Weight (g) | | 23HS0601 | 1.8 | 41 | 1.0 | 5.2 | 5.5 | 40 | 2.5 | 150 | 6 | 470 | | 23HS0405 | 1.8 | 41 | 0.62 | 12 | 24 | 55 | 2.5 | 150 | 4 | 470 | | 23HS0408 | 1.8 | 41 | 2.0 | 1.2 | 2.5 | 55 | 2.5 | 150 | 4 | 470 | | 23HS4412 | 1.8 | 45 | 0.62 | 12 | 26 | 80 | 2.8 | 190 | 4 | 520 | | 23HS4425 | 1.8 | 45 | 2.5 | 1.0 | 2.2 | 80 | 2.8 | 190 | 4 | 520 | | 23HS5406 | 1.8 | 51 | 0.62 | 13 | 28 | 90 | 2.8 | 190 | 4 | 560 | | 23HS5410 | 1.8 | 51 | 1.0 | 5.8 | 17 | 90 | 2.8 | 190 | 4 | 560 | | 23HS5425 | 1.8 | 51 | 2.5 | 1.2 | 3.2 | 90 | 2.8 | 190 | 4 | 560 | | 23HS5602 | 1.8 | 51 | 0.8 | 6.8 | 9.2 | 70 | 3.0 | 230 | 6 | 560 | | 23HS6602 | 1.8 | 56 | 1.5 | 3.2 | 5.5 | 80 | 3.5 | 280 | 6 | 680 | | 23HS6403 | 1.8 | 56 | 2.5 | 1.2 | 4.8 | 110 | 3.5 | 280 | 4 | 680 | | 23HS6430 | 1.8 | 56 | 3.0 | 0.8 | 2.4 | 110 | 3.5 | 280 | 4 | 680 | | 23HS6404 | 1.8 | 56 | 4.2 | 0.4 | 1.2 | 110 | 3.5 | 280 | 4 | 680 | | 23HS6415 | 1.8 | 56 | 1.5 | 3.6 | 13.8 | 110 | 3.5 | 280 | 4 | 680 | | 23HS7401 | 1.8 | 64 | 1.0 | 7.5 | 20 | 150 | 5.0 | 380 | 4 | 850 | | 23HS7425 | 1.8 | 64 | 2.5 | 1.5 | 4.5 | 150 | 5.0 | 380 | 4 | 850 | | 23HS7430 | 1.8 | 64 | 3.0 | 0.8 | 2.3 | 150 | 5.0 | 380 | 4 | 850 | | 23HS7404 | 1.8 | 64 | 4.2 | 0.55 | 1.2 | 150 | 5.0 | 380 | 4 | 850 | | 23HS8603 | 1.8 | 76 | 1.5 | 4.5 | 7.8 | 140 | 6.0 | 440 | 6 | 1050 | | 23HS8425 | 1.8 | 76 | 2.5 | 1.8 | 6.5 | 180 | 6.0 | 440 | 4 | 1050 | | 23HS8430 | 1.8 | 76 | 3.0 | 1.0 | 3.5 | 180 | 6.0 | 440 | 4 | 1050 | | 23HS8404 | 1.8 | 76 | 4.2 | 0.6 | 1.8 | 180 | 6.0 | 440 | 4 | 1050 | | 23HS1430 | 1.8 | 100 | 3.0 | 1.4 | 5.5 | 250 | 10 | 680 | 4 | 1250 | | 23HS1410 | 1.8 | 100 | 4.2 | 0.8 | 3.0 | 250 | 10 | 680 | 4 | 1250 | | 23HS2430 | 1.8 | 112 | 3.0 | 1.6 | 6.8 | 280 | 12 | 800 | 4 | 1400 | | 23HS2410 | 1.8 | 112 | 4.2 | 0.9 | 3.8 | 280 | 12 | 800 | 4 | 1400 |
|
Note:The datesheet is only for reference, We can produce the customized motors according to your requiremnt,Fell free to conact with me if you want specifiations or have any questions.About LEISON MOTOR CompanyNingbo Leison Motor Co. Ltd is a manufacturer and exporter of virious of motors, Our Product range are:
DC Brush motor: 6-130mm diameter, 0.1-1500W output power. Brushless DC Motor: 28-110mm, 5-800W output power DC Spur Gear Motor: 12-110mm diameter, 0.1-300W output power DC Planeary Gear Motor: 10-82mm diameter, 0.1-200W output power Stepper Motor: NEMA 08 to NEMA 43, Can contact with gearox and lead screwAC Gear Motor: 42 to 104mm diameter, 6-200 output power Compare with other competitors, Our advantages are:
1) High Quality Guarantee: 11 years experiences in this field makes us have mature manufacturing process, Most of motors have CE, RoHS certificates.2) Experience: Till Augest, 2016, We had export our goods to 77 different countries like US, Germany, UK, Japan, Brizal,Russia and so on. 3) Competitive Price: We have a very high competitive ability of the list prices based on low cost labour force in China. 4) Good Service: LEISON MOTOR sales are professional and with good attitude, We will response with our customer within 24 hours(Holiday excepted), So you don't need way about can't not find the person when have agent things. - 5 MOQ: Small Orders Accepted
6) On Time Delivery: 7-15 working days lead time for normal motors, Custmoized motor lead time are also less than 20 working days.
7) Customized service: Our experienced R&D team can support customized motor if necessary.
Still need more reasons? Now begin business with LEISON MOTOR, You will find we are a reliable and trustworthy in China. -
FAQ1. Can you make the motor with customized requirement ?YES. We have experienced R&D capability and great engineers, Their experience and innovation capability can support customized project.2.Can you provide the samples?YES. We can provide the samples, The delivery time is about 7-15 days according to which kind of motor you want3.What is your MOQ?It's accordingly to the motor type you order, Our MOQ for gear motor can even 1pc. 4. Do you have the item in stock?Sorry we don't have the item in stock, , Motor have hundreds of different requirement such as voltage, speed, torque, shaft dimension and so on, So it's hard to prepared samples 5. Do you provide technology support?YES. Our company have strong R&D capability, we can provide technology support if you need.6.How to ship to us?TNT, DHL,UPS or FEDEX,AMERX or other express company as you want. . 7.How to pay for the order ?We accept T/T,Western union or paypal or cash. 8. How can I know the product is suitable for me?Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.9. Can I come to your company to visit?YES, you can come to our company to visit at any working days, Welcome to visit our company.10. How do contact us ? Please send an inquiry or send me a email directly, My email address can be find in our company website
