2 Phase Hybrid Stepper Motors NEMA11 1.8 Degree Jk28hs45-0674

Name: 2 Phase Hybrid Stepper Motors NEMA11 1.8 Degree Jk28hs45-0674
Brand: all-electronics-online.com
SKU: 737925475
Availability: InStock
Rating: 4.5 (54 reviews)

Price:	US $ 7.8-8.6/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	JK28HS45-0674
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Step Angel:	1.8degree
Motor Length:	45mm
Current:	0.67A
Motor Weight:	0.14kg
Type:	Electromechanical
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid

Product Description

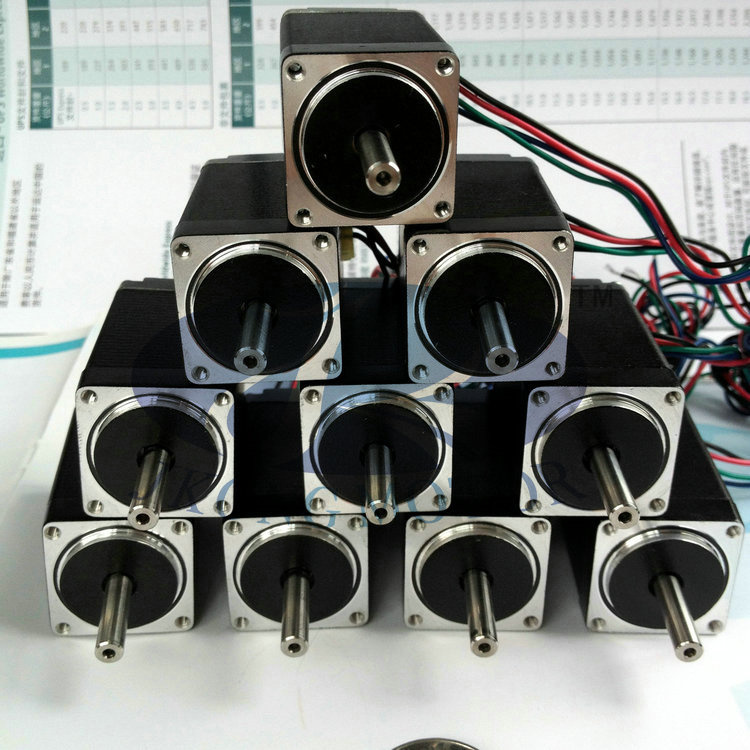

Nema11 1.8 Degree 2 Phase Nema Stepper Motor JK28HS45-0674

Nema 11 Hybrid Stepper Motor
Model Number: JK28HS45-0674
Phase: 2 Phase
Lead Wire (No. ): 4 wire
Structure: Hybrid
Step Angle: 1.8°
Motor Height: 45mm
Holding Torque: 950 g. Cm
Speed: Low / High speed
Certification: CE, ROHS, ISO9001
Shape: Square
Applications: Use for robots stepper motor, electronic automatic equipment stepping motor, medical instrument stepping motor, advertisementing instrument stepper motor, lighting& audio equipment stepper motor, printer stepper motor, textile machinery stepper motor. Cnc router stepper motor.

Description:

1.8 degree Size 28mm Hybrid stepper motor. 3D Printer stepper motor
28mm size stepper motor, NEMA11 stepping motor,
Small stepping motors, 2 phase 28mm stepper motor, Stepper motor 28mm size
Hybird Stepper Motors
1) CE and RoHS approved
2) We can develop customer design version

Applications:

Use for robots stepper motor, electronic automatic equipment stepping motor, medical instrument stepping motor,
Advertisementing instrument stepper motor, lighting& audio equipment stepper motor, printer stepper motor, textile machinery stepper motor.
Cnc router stepper motor.

About our manufacturer:

We are a professional manufacturer for Stepper motor, Stepper driver, BLDC motor and DC motor. We can supply OEM service.
Our products all with CE and ROHS.
Welcome you visit our company Changzhou Jingkong Motor&Electric Appliance Co., Ltd

If you need more information. Please contact with us, our contact information:

Changzhou Jingkong Motor&Electric Appliance Co., Ltd

Contact Person: Ms Jane

Tel: 0086 15189798401
Fax: 0086 519 88713769

More Quantity. More discount! ! !

Model No.	Step Angle	Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	# of Leads	Rotor Inertia	Motor Weight
Model No.	( °)	(L)mm	A	Ω	mH	g.cm	No.	g.cm	Kg
JK28HS32-0956	1.8	32	0.95	2.8	0.8	430	6	9	0.11
JK28HS32-0674	1.8	32	0.67	5.6	3.4	600	4	9	0.11
JK28HS45-0956	1.8	45	0.95	3.4	1.2	750	6	12	0.14
JK28HS45-0674	1.8	45	0.67	6.8	4.9	950	4	12	0.14
JK28HS51-0956	1.8	51	0.95	4.6	1.8	900	6	18	0.2
JK28HS51-0674	1.8	51	0.67	9.2	7.2	1200	4	18	0.2

Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 3000 square meters. Now we are already passed RoHS and CE testing.

We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.

We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.

We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor. Spindle motor,

For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.

Competotive price and high quality. Hope can cooperate with you.
